Zimbabwe Chromite Ore Beneficiation Solution by Jiangxi Changyi Mining Machinery

Zimbabwe, as a major global chromite resource country, has proven reserves exceeding 1 billion tons, accounting for about 15% of the global total, and is one of the core supply bases for the international chromite market. However, the local chromite is mostly lateritic ore, which has characteristics such as high clay content, fine grain size, and complex associated impurities, making it difficult for traditional beneficiation equipment to achieve efficient separation, resulting in a long-term low resource utilization rate.
As an experienced mining machinery manufacturing enterprise located in Ganzhou, Jiangxi Province, China, Jiangxi Changyi Mining Machinery Co., Ltd. (hereinafter referred to as "Changyi Mining Machine") has tailored an efficient and low-energy chromite beneficiation solution for Zimbabwean customer, thanks to its profound technical accumulation in the field of gravity beneficiation.

I. Analysis of Chrome Ore Characteristics and Mining Difficulties

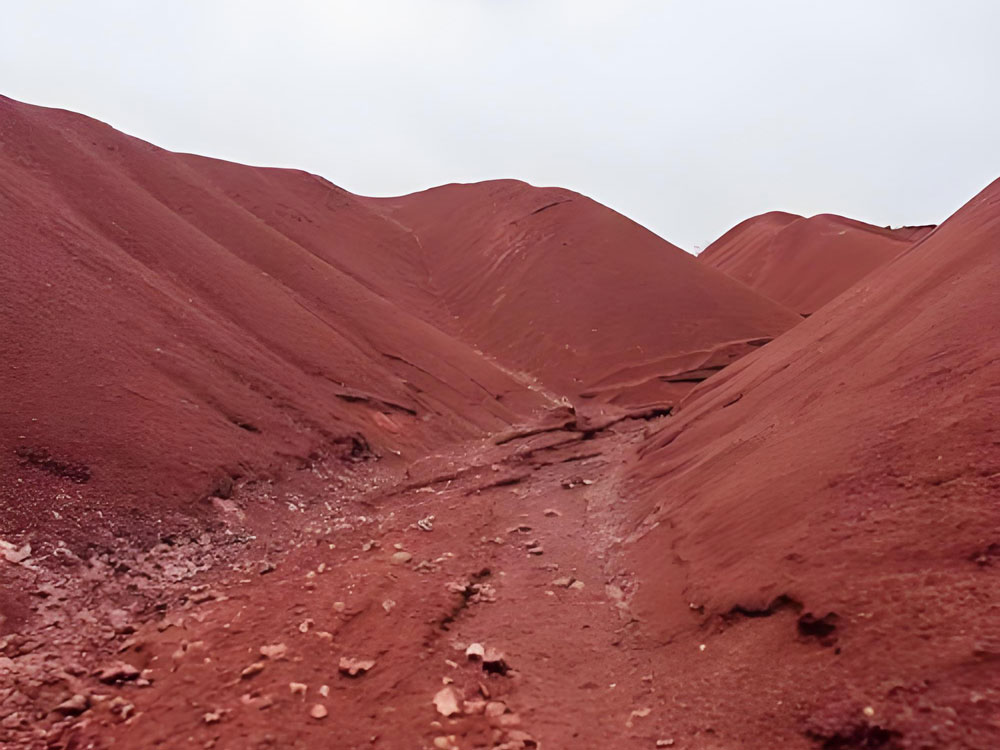

The open-pit lateritic chromite ore in Zimbabwe is affected by long-term weathering, with a large amount of clay and argillaceous impurities mixed in the raw ore. If it is directly subjected to separation, the high clay content will seriously worsen the beneficiation indicators, making it difficult to meet the grade standards of the concentrate.

• Variable Dissemination Size: The grain size difference between chromite and gangue minerals is vast. Fine grinding is required to achieve monomer dissociation.
• Complex Associated Impurities: The ore often contains platinum group metals and serpentine. Multi-stage separation is necessary to improve concentrate purity.
• Strict Environmental Requirements: Local regulations mandate a wastewater recycling rate of over 90%. Dry tailings stacking is required to minimize dust pollution.

Therefore, how to efficiently "wash ore and remove mud" and achieve the recovery of micro-fine grain size chromite has become the key to the success or failure of the beneficiation plant project.

II. Changyi Customized Chromite Ore Beneficiation Process

In response to the special characteristics of this ore, the Changyi Mining Machine technical team has abandoned the traditional single beneficiation mode and designed a combined process flow of "washing ore and dewatering + spiral chute gravity separation + magnetic separation and concentration."

1. Efficient washing and dewatering to clear the separation obstacles

Firstly, an efficient screening and washing equipment is introduced to screen and clean the raw ore. Through the trommel screen and high-pressure water flushing, the mud and clay on the surface of the ore are completely stripped off. This step effectively reduces the viscosity of the pulp, creating a good fluid environment for the subsequent gravity separation.

2. Changyi Spiral Chute, Core Gravity Separation and Purification

As the core equipment of this project, Changyi Mining Machinery provides multiple high-performance glass fiber reinforced plastic spiral chutes. In response to the particle size characteristics of the Zimbabwean chrome ore, we have adopted a scheme of 720mm and 540mm high and low-speed matching in the spiral pitch design of the chute.

During the separation process, the properly concentrated slurry is transported to the top of the spiral chute by the slurry pump. In the rotating inclined surface flow, the slurry is subjected to the comprehensive effects of gravity, centrifugal force, and water flow impact. The chrome iron ore particles with higher density accumulate towards the inner side of the chute, while the lighter density silicate gangue is ejected to the outer side and discharged. The Changyi Spiral Chute, with its stable separation process, no need for power, large processing capacity, and easy installation, meets the local demand for the enrichment of fine-grained (0.3-0.02mm) chrome iron ore.

3. Magnetic separation assistance, further upgrading of concentrate quality

After the chrome concentrate obtained through spiral chute roughing and cleaning is further purified by the wet magnetic separators, the proportion of silicon in the concentrate is further reduced, ensuring that the final chrome ore meets high-quality standards.

Actual beneficiation experiment data shows that this process not only effectively solves the problem of treating high mud content ore but also stabilizes the grade of chrome concentrate to over 45%, with some batches even reaching higher standards.

III. Zimbabwe Chrome Ore Processing Equipment Installation Site

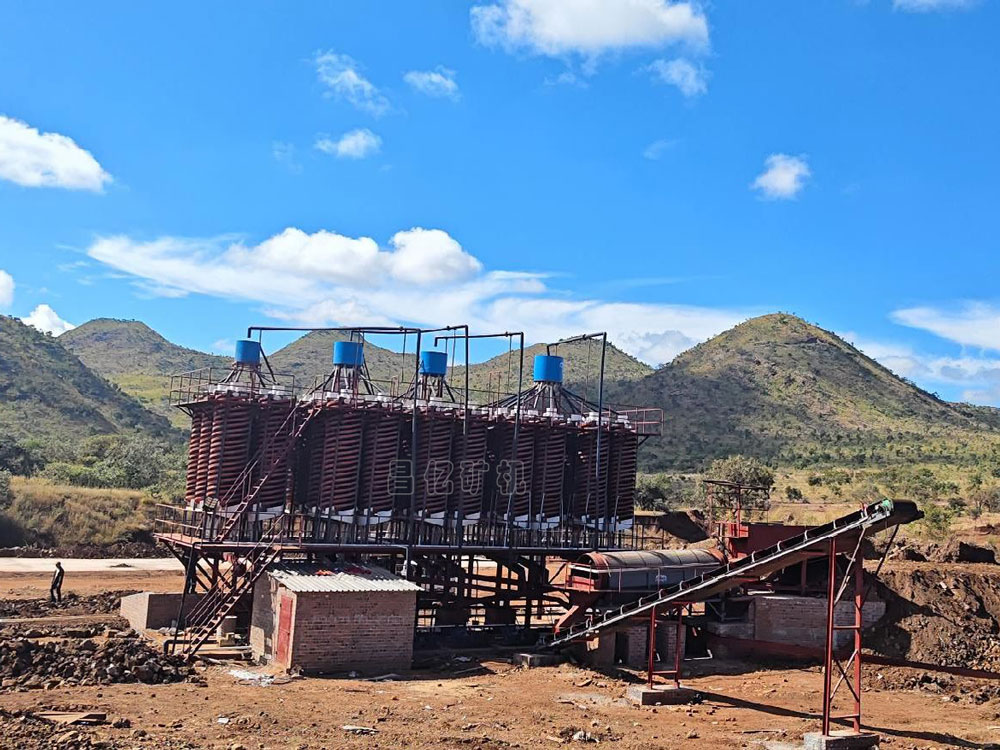

Figure 1: Panorama of the Zimbabwe Chrome Ore Processing Plant
The high-performance glass fiber reinforced steel spiral chute production line customized for the Zimbabwean customer by Changyi Mining Machinery is neatly arranged.

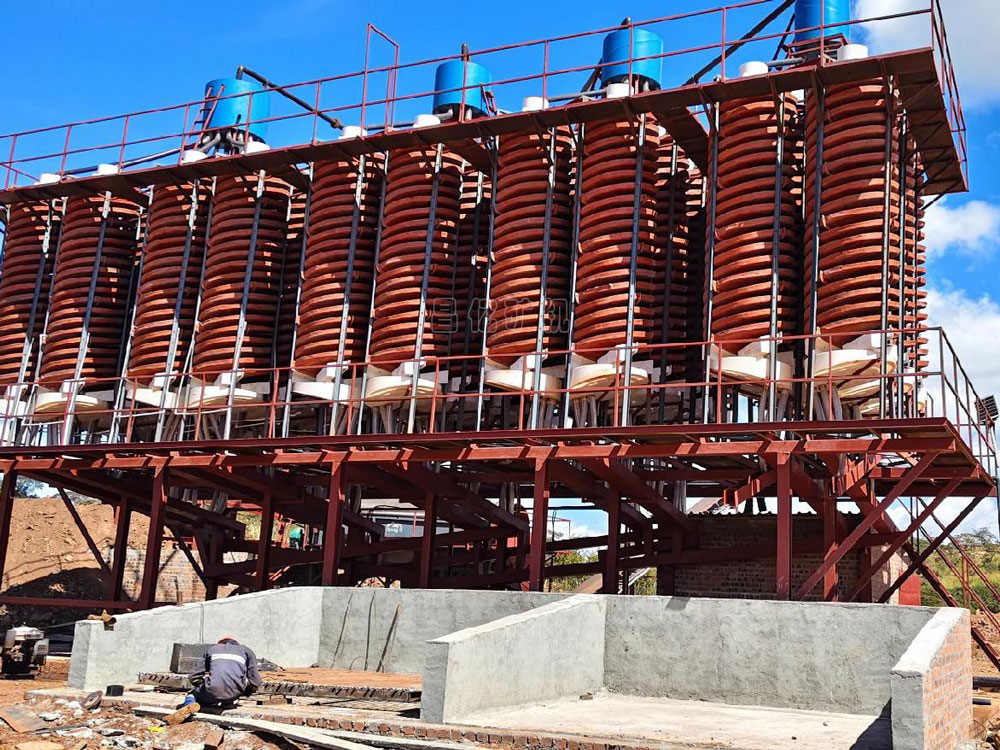

Figure 2: Changyi High-performance Glass Fiber Reinforced Steel Spiral Chute
The design is a combination of 720mm and 540mm pitch, where the ore pulp is accurately stratified within the chute under the action of gravity and centrifugal force, effectively enriching the 0.02-0.3mm micro-fine grade chromite.

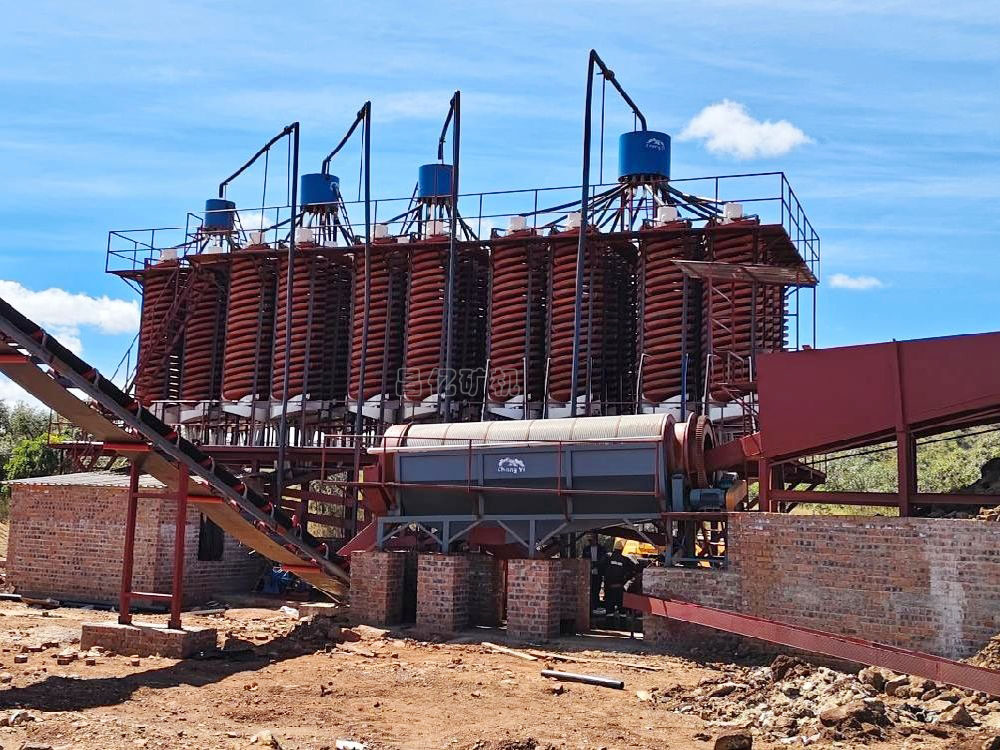

Figure 3: Original Ore High-efficiency Washing and Desliming Trommel Screen
Addressing the local ore's high mud content, the trommel screen and high-pressure water flushing are used to thoroughly strip away clay impurities, significantly reducing the pulp viscosity, creating a good fluid environment for subsequent gravity separation.

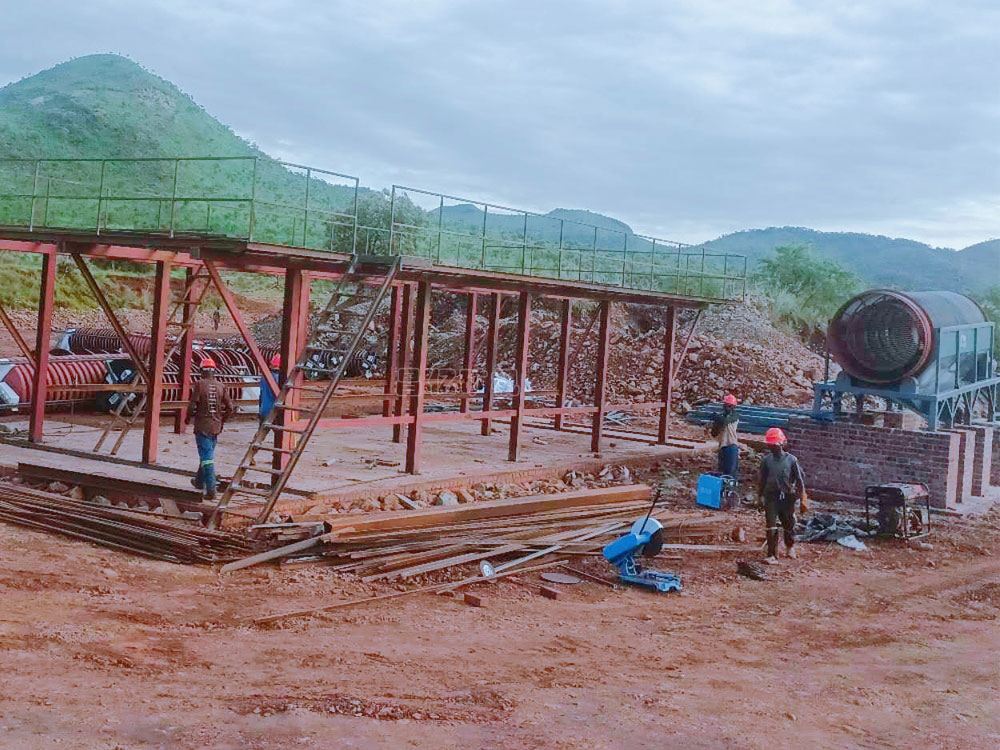

Figure 4: Changyi Mining Machinery Technical Engineer Overseas Field Guidance
From Jiangxi Ganzhou in China to Zimbabwe in Africa, Changyi Mining Machinery engineers go deep into the front line, providing full-process technical guidance from equipment installation and debugging to process optimization, ensuring the smooth production of the production line.

IV. Conclusion

From Ganzhou, China, to the world stage, Changyi Mining Machinery has always adhered to the principle of "technology as the core, quality for survival." The successful case of the Zimbabwe chrome ore beneficiation plant once again proves Changyi Mining Machinery's professional strength in the field of beneficiation equipment. In the future, we will continue to provide global mining clients with higher-quality beneficiation equipment and full-process technical guidance to help mining enterprises maximize the value of resources.

Finally, for equipment selection consultation or process optimization solutions, please contact the Changyi Mining Machinery technical team.
