Accurate jaw crusher capacity calculation is fundamental to primary crushing plant design. Oversizing increases capital expenditure and idle power consumption, while undersizing creates production bottlenecks and excessive wear. This document presents a complete industrial-grade engineering framework covering theoretical capacity equations, correction coefficients, power estimation, feed gradation influence, liner wear modeling, and system-level optimization methodology.

1. Engineering Logic of Capacity Determination

Jaw crushers operate under a cyclic compression mechanism. The swing jaw moves toward the fixed jaw, compressing material, then retracts, allowing gravity-assisted discharge. Because crushing is intermittent rather than continuous, theoretical capacity must be adjusted for real-world dynamic constraints.

Capacity modeling must consider:

• Geometric feed opening dimensions (B × H)
• Closed Side Setting (CSS)
• Eccentric shaft speed (RPM)
• Stroke length (S)
• Bulk density of material (ρ)
• Material compressive strength (MPa)
• Moisture content (%)
• Reduction ratio
• Choke feeding condition

The goal is not merely to compute theoretical throughput but to determine stable, sustainable production rate over a full liner lifecycle.

2. Fundamental Capacity Formula

2.1 Classical Theoretical Model

Q = 60 × A × S × N × ρ × η

• Q = capacity (t/h)
• A = effective crushing area (m²)
• S = stroke length (m)
• N = eccentric speed (rpm)
• ρ = bulk density (t/m³)
• η = efficiency factor (0.5–0.75)

Effective crushing area A is approximately:

A = B × CSS

Where:

• B = feed opening width (m)
• CSS = closed side setting (m)

2.2 Example Calculation

Consider a 1200 × 900 mm jaw crusher processing granite:

• B = 1.2 m
• CSS = 0.15 m
• S = 0.03 m
• N = 250 rpm
• ρ = 1.7 t/m³
• η = 0.65

Step 1: Calculate effective area

A = 1.2 × 0.15 = 0.18 m²

Step 2: Compute theoretical capacity

Q = 60 × 0.18 × 0.03 × 250 × 1.7 × 0.65 Q ≈ 537 t/h

This value represents optimized choke-fed operation. Real plant data typically shows 480–520 TPH depending on feed consistency.

3. Practical Correction Factors

Industrial reality demands adjustment coefficients. The following multipliers refine theoretical output:

Factor	Typical Range	Impact on Capacity
Moisture > 5%	0.85–0.95	Material adhesion, slower discharge
High abrasiveness	0.90–0.95	Liner wear reduces CSS accuracy
Irregular feed size	0.80–0.90	Poor chamber utilization
Choke feeding	1.05–1.15	Improved cavity utilization
Proper prescreening	1.05–1.10	Removes fines, increases efficiency

Corrected capacity formula:

Q_actual = Q_theoretical × F1 × F2 × F3 × ...

Example:

If moisture factor = 0.9 and feed uniformity factor = 0.88:

Q_actual = 537 × 0.9 × 0.88 ≈ 425 t/h

4. Power Requirement Estimation

4.1 Bond’s Law Application

P = 10 × Wi × Q × (1/√P80 − 1/√F80)

• Wi = Work Index (kWh/t)
• Q = throughput (t/h)
• F80 = feed size (mm)
• P80 = product size (mm)

Example:

• Wi = 14 kWh/t
• Q = 500 TPH
• F80 = 600 mm
• P80 = 150 mm

Power ≈ 400–500 kW

Industrial motors are selected with 15–20% safety margin. Therefore, recommended motor rating ≈ 560 kW.

5. Influence of Reduction Ratio

Reduction ratio (RR) is defined as:

RR = F80 / P80

Typical jaw crusher RR = 3:1 to 6:1.

Higher RR increases:

• Energy consumption
• Liner wear rate
• Heat generation
• Vibration load

Engineering recommendation:

• Primary crushing RR ≤ 4.5 for hard rock
• Distribute reduction across secondary stages

6. Liner Wear Modeling

Liner wear directly affects capacity. As liners wear:

• CSS increases
• Product size drifts upward
• Effective crushing angle changes

Wear rate estimation:

Wear Rate (mm/100h) = k × Abrasiveness Index × Throughput Factor

Typical manganese liner life:

• Granite: 600–900 hours
• Basalt: 500–800 hours
• Limestone: 1200+ hours

Predictive maintenance with vibration and acoustic sensors reduces catastrophic liner failure risk.

7. System-Level Capacity Optimization

7.1 Feed Control Strategy

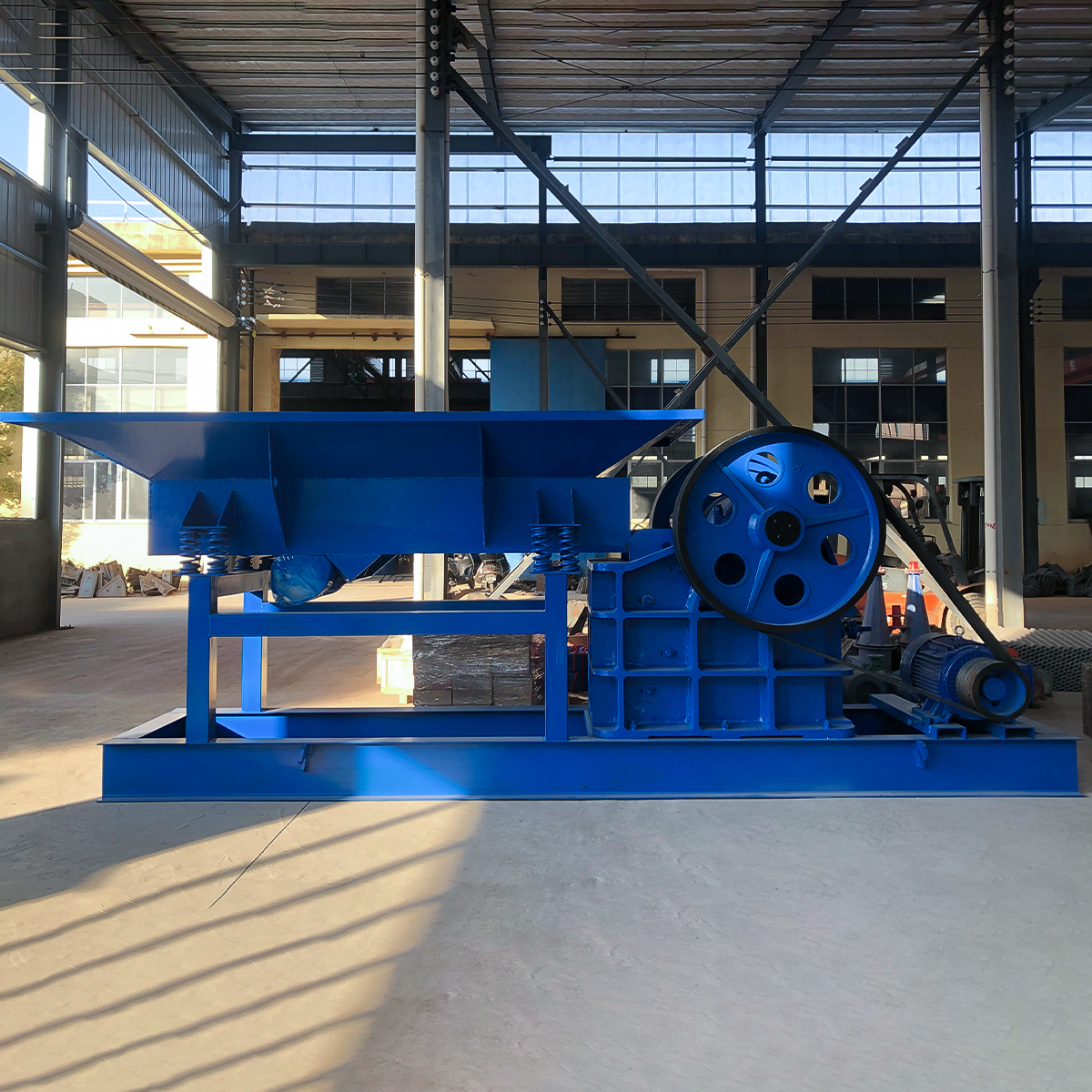

• Install vibrating grizzly feeder
• Remove fines before crushing
• Maintain consistent feed rate

7.2 Choke Feeding Principle

Choke feeding ensures full cavity utilization. Underfeeding reduces throughput by 15–25%.

7.3 Surge Bin Integration

Recommended surge bin capacity:

Surge Volume = 15–20 minutes × Crusher TPH

For 500 TPH crusher:

≈ 125–170 tons buffer

8. Case Study: 800 TPH Granite Crushing Plant

Project Overview:

• Location: Southeast Asia
• Material: Granite (compressive strength 220 MPa)
• Jaw Crusher Model: 1400 × 1100 mm
• Target Capacity: 800 TPH

Engineering Findings:

• Theoretical capacity: 860 TPH
• After correction factors: 780–820 TPH
• Motor rating: 630 kW
• Liner change interval: 700 hours
• Availability: 92%

Optimization Result:

• Prescreening improved throughput by 9%
• Choke feeding increased reduction stability
• Energy consumption reduced by 6%

9. CAPEX vs OPEX Implications

Accurate capacity sizing avoids:

• Overcapitalization (excess idle capacity)
• Motor oversizing and energy waste
• Premature bearing failure
• Downstream bottlenecks

Lifecycle cost model:

Total Cost = CAPEX + (Energy + Wear Parts + Labor + Downtime) × Years

Optimal sizing reduces cost per ton by 8–15% over 10-year project life.

10. Advanced Digital Monitoring

Modern jaw crushers integrate:

• Load cell monitoring
• Vibration sensors
• Temperature tracking
• AI-based predictive maintenance systems

Digital twins simulate wear progression and throughput variation, improving planning accuracy.

11. Engineering Checklist for Capacity Design

• Confirm feed gradation curve
• Determine compressive strength
• Calculate theoretical Q
• Apply correction multipliers
• Verify motor selection
• Analyze surge bin buffer
• Model liner wear lifecycle
• Validate downstream compatibility

12. Conclusion

Jaw crusher capacity calculation is not a single formula exercise but a multi-variable engineering model. Accurate throughput estimation requires geometric analysis, material mechanics, correction factors, power modeling, and lifecycle planning. When executed correctly, the result is stable plant performance, optimized energy consumption, and reduced cost per ton over the project lifespan.
