Vibrating Screen Engineering Guide: Screening Efficiency & System Control in Crushing Plants

Vibrating screens are critical control equipment in crushing and screening systems. Unlike crushers, which focus on size reduction, vibrating screens determine particle classification accuracy, system throughput stability, and final product quality.

From an engineering perspective, vibrating screens act as the “regulating valve” of the entire crushing plant. Improper screen selection or configuration often results in system bottlenecks, excessive recirculation, and increased wear on downstream equipment.

This engineering guide is developed for mine owners, EPC contractors, and plant designers seeking a professional understanding of vibrating screen selection, performance evaluation, and system integration.

Tabla de Contenido

1. Role of Vibrating Screens in Crushing & Screening Systems
2. Vibrating Screen Working Principle
3. Types of Vibrating Screens and Applications
4. Structural Design and Key Components
5. Engineering Parameters for Vibrating Screen Selection
6. Screening Efficiency and Capacity Calculation
7. Screen Media Selection and Wear Optimization
8. Integration with Crushers and Process Flow Control
9. Operation, Maintenance, and Reliability Management
10. Common Screening Problems and Engineering Solutions

1. Role of Vibrating Screens in Crushing & Screening Systems

In crushing and screening plants, vibrating screens serve multiple engineering functions beyond simple size separation.

Key roles include:

Particle size classification and control
Protection of downstream crushers from oversize material
Stabilization of system throughput
Reduction of unnecessary recirculation load

From a system design perspective, vibrating screens determine how effectively crushing stages are connected and balanced. A poorly designed screening stage can negate the performance advantages of high-capacity crushers.

2. Vibrating Screen Working Principle

Vibrating screens operate by applying controlled vibration to a screening surface, causing material to stratify and separate based on particle size.

As material moves across the screen deck, smaller particles pass through the screen apertures while larger particles remain on the surface and are discharged separately.

Key characteristics of vibrating screen operation:

Continuous material movement
Layered particle stratification
High screening efficiency under stable feed conditions

The vibration parameters—amplitude, frequency, and direction—must be carefully engineered to match material properties and production requirements.

3. Types of Vibrating Screens and Applications

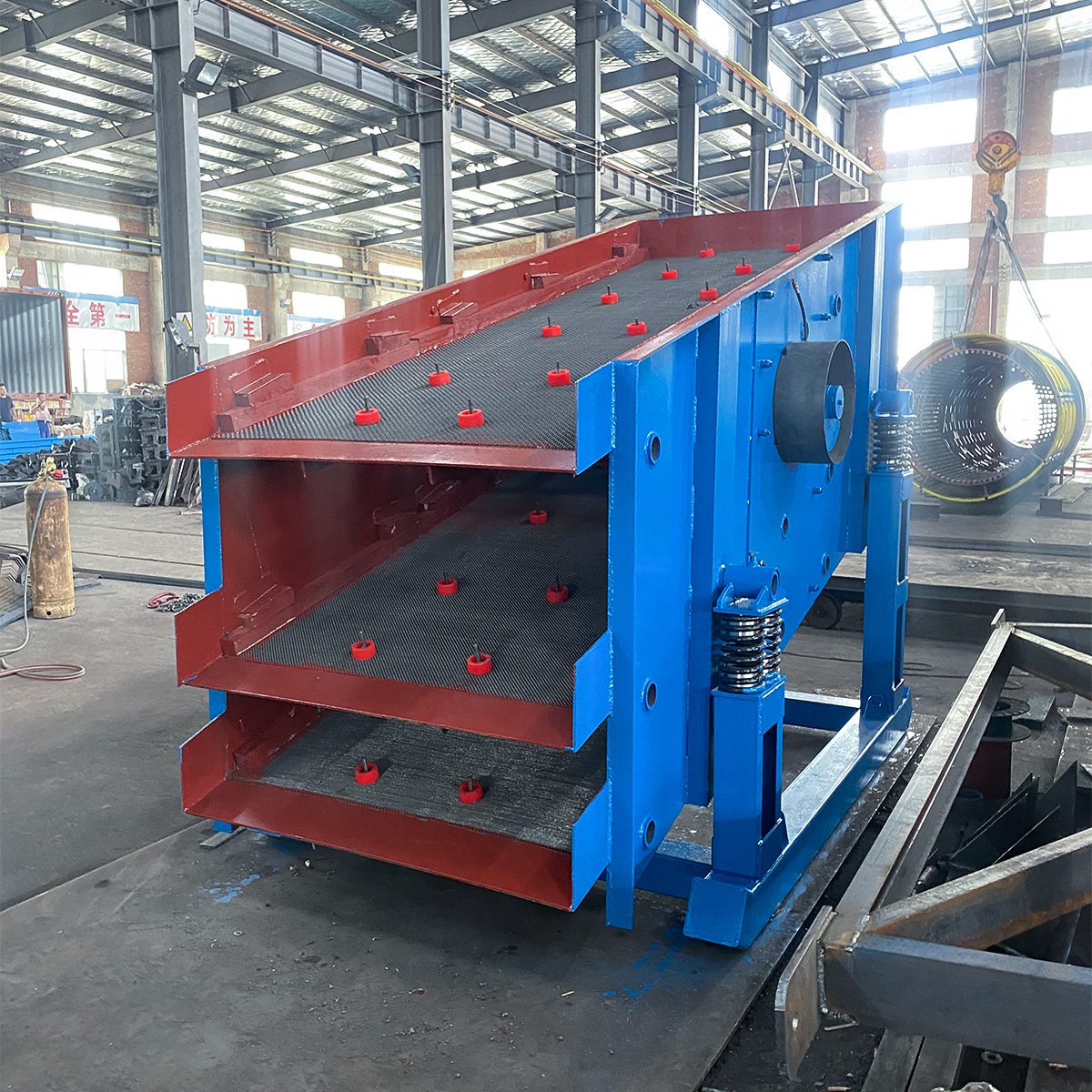

3.1 Circular Vibrating Screens

Circular vibrating screens generate circular motion and are commonly used in mining and quarrying applications. They provide high capacity and robust performance under heavy-duty conditions.

3.2 Linear Vibrating Screens

Linear vibrating screens use linear motion to transport material across the screen surface. They are often applied in fine screening and dewatering applications.

3.3 Banana Screens

Banana screens feature multiple deck angles to improve material stratification and increase throughput in high-capacity plants.

Screen type selection should be based on material characteristics, required capacity, and desired screening efficiency.

4. Structural Design and Key Components

4.1 Screen Box

The screen box supports the screen media and transmits vibration forces. High-strength steel structures are required to resist fatigue under continuous dynamic loading.

4.2 Vibration Exciter

The vibration exciter generates the required vibration force. Precision balancing is essential to ensure stable operation and long service life.

4.3 Support Structure and Springs

Springs isolate vibration from the supporting structure and influence vibration characteristics.

5. Engineering Parameters for Vibrating Screen Selection

Engineering-level vibrating screen selection requires careful analysis of operating conditions.

Key parameters include:

Feed rate (t/h)
Material size distribution
Moisture and clay content
Required cut size
Screening efficiency targets

Ignoring these parameters often leads to screen blinding, reduced capacity, and excessive wear.

6. Screening Efficiency and Capacity Calculation

Screening efficiency is a critical performance indicator for vibrating screens. It represents the percentage of material correctly classified by size.

Engineering calculations must consider:

Effective screening area
Material bed depth
Vibration intensity
Feed uniformity

In practice, maintaining stable feed conditions is often more important than increasing vibration intensity.

7. Screen Media Selection and Wear Optimization

Screen media selection significantly affects screening efficiency and maintenance cost.

Common screen media options include:

Wire mesh screens
Polyurethane screen panels
Rubber screen panels

Engineering optimization focuses on balancing open area, wear life, and ease of replacement.

8. Integration with Crushers and Process Flow Control

Vibrating screens are typically installed between crushing stages or as final classification equipment.

Improper integration with jaw crushers or cone crushers often results in:

Excessive recirculation load
Crusher overload
Reduced overall plant capacity

Complete crushing and screening solutions are available at: Crusher & Screening Systems

9. Operation, Maintenance, and Reliability Management

Reliable vibrating screen operation depends on disciplined maintenance practices.

Key maintenance focus areas:

Inspection of screen media
Vibration exciter lubrication
Spring condition monitoring
Structural fatigue inspection

Preventive maintenance reduces unexpected downtime and extends equipment service life.

10. Common Screening Problems and Engineering Solutions

Common screening issues include screen blinding, low efficiency, excessive vibration, and structural fatigue.

Engineering solutions focus on proper feed control, screen media optimization, and vibration parameter adjustment.

Conclusion

Vibrating screens are essential system control equipment in crushing and screening plants. When properly selected and integrated, they ensure stable production, accurate particle classification, and optimized operating costs.
