Ball mill

Due to extensive model variations, please contact us or download our full technical catalog for comprehensive specs.

Model	Drum Size (mm)	Speed (r/min)	Ball Load (t)	Feed Size (mm)	Capacity (t/h)	Power (kW)
GM0612	600×1200	46.2	0.4	0–20	0.1–0.4	5.5
GM0918	900×1800	41.6	1.6	0–25	0.4–1.1	15
GM1244	1200×4400	35.2	7.3	0–25	3.0–7.5	75
GM1836	1830×3600	27	15.0	0–25	4.0–21.5	155
GM2136	2100×3600	23.9	19.8	0–25	5.0–37.0	180

Ball Mill – Efficient Grinding Equipment for Ore, Cement & Chemicals

Product Overview

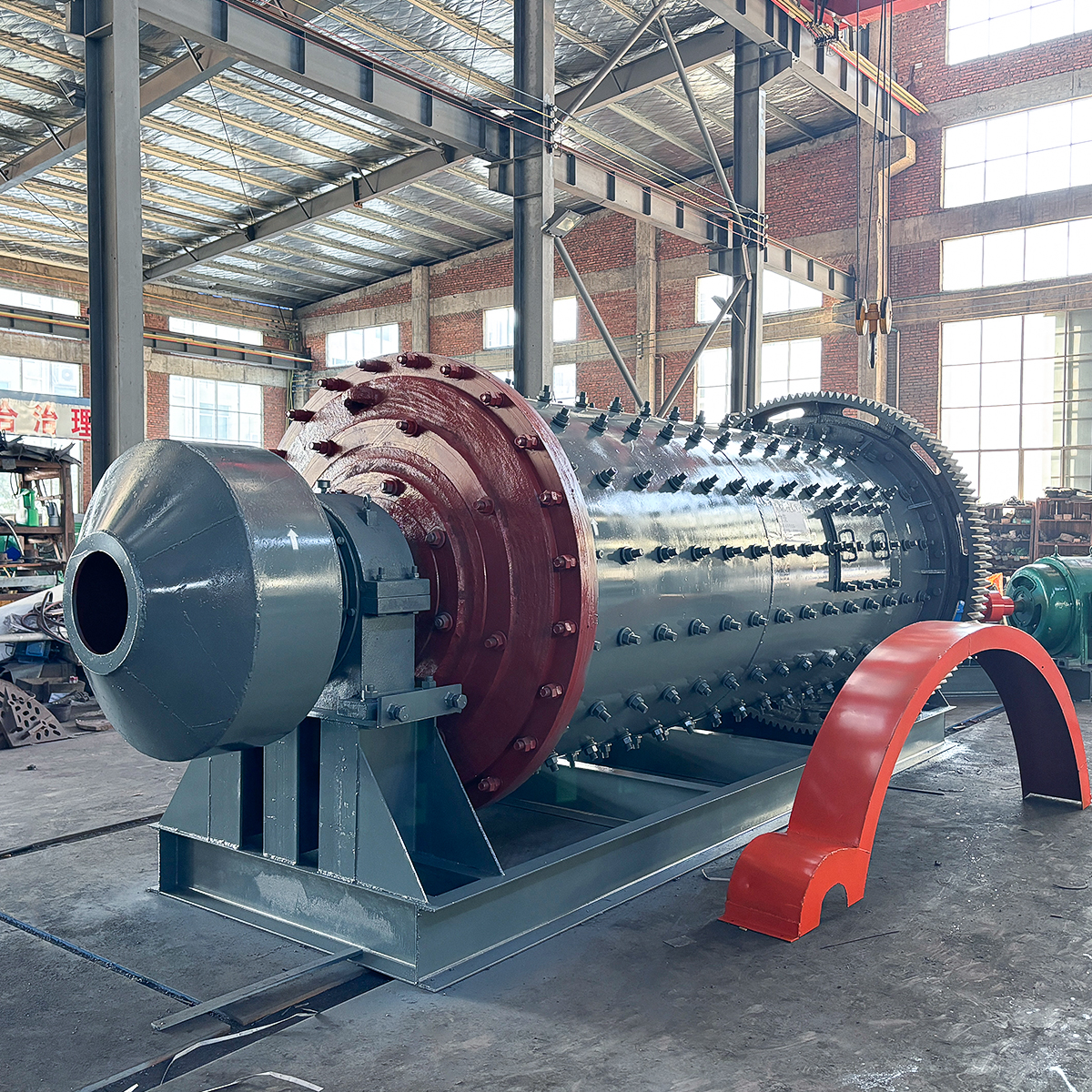

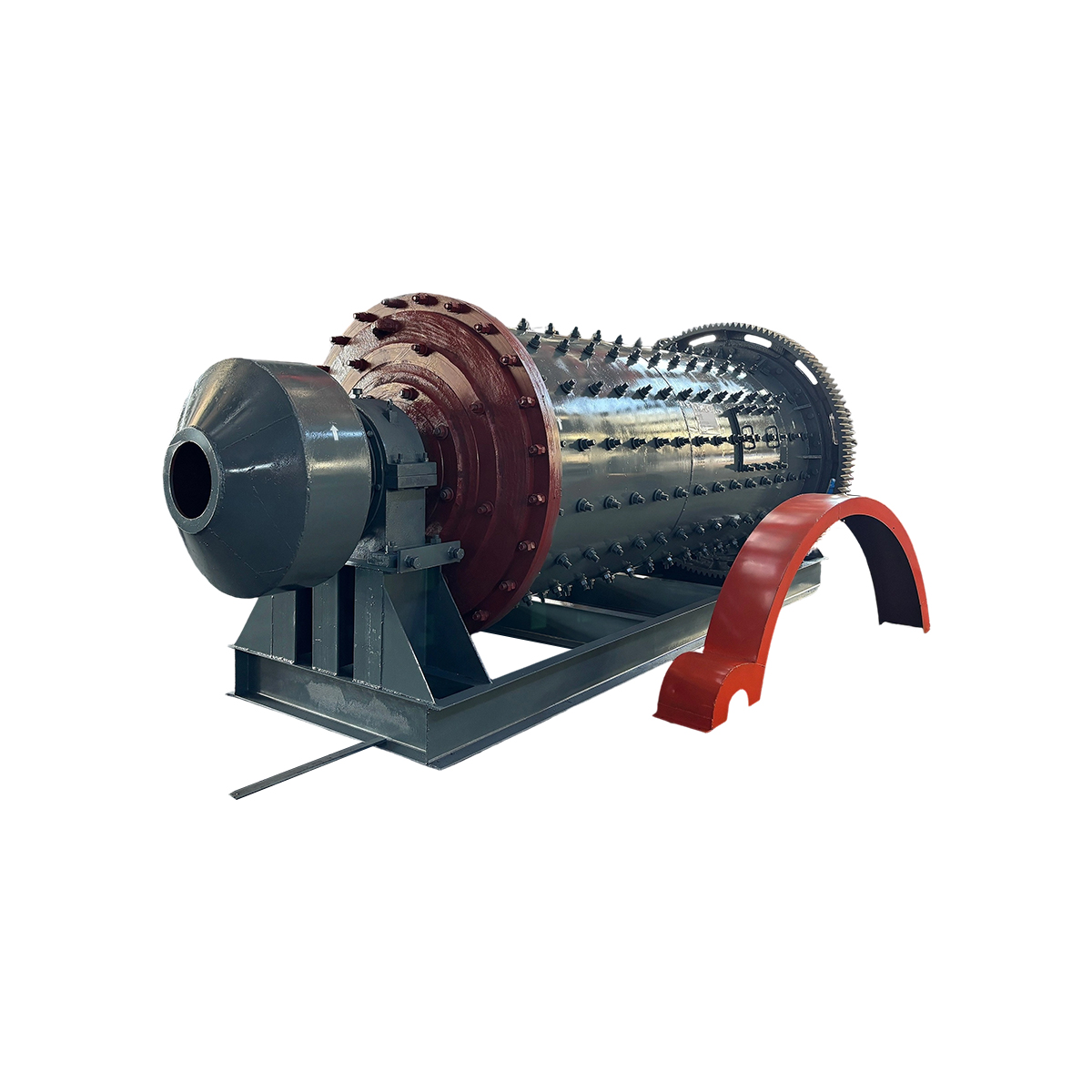

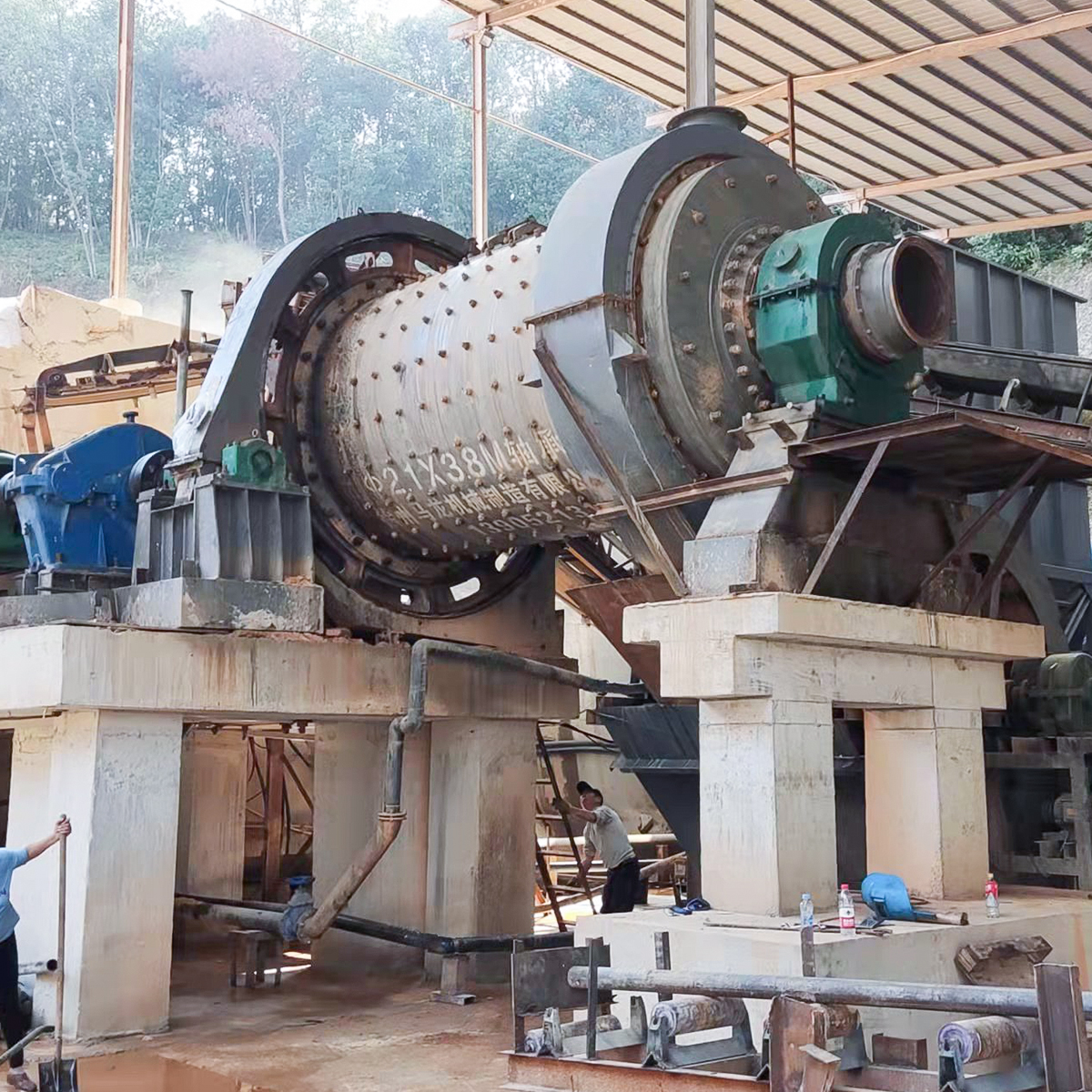

The ball mill is a key industrial grinding machine used after material crushing. It is designed for grinding a wide range of ores and other bulk materials into fine powder, making it a core piece of equipment in mineral beneficiation, cement manufacturing, ceramics production, and chemical processing industries. The ball mill consists of a rotating cylindrical drum partially filled with steel balls or other grinding media, which crush and grind the material through a combination of impact and attrition forces.
Depending on the process requirements, ball mills can operate in either dry grinding or wet grinding modes. The drum rotation and grinding media enable uniform particle size distribution, which improves downstream process efficiency. With high throughput capacity, customizable design, energy-efficient motors, and easy-to-maintain structure, our ball mills are suitable for continuous and batch operations.

Key Features

• ⚙️ Robust design ensures stable operation and consistent performance in high-load environments

• 📈 Supports fine and ultra-fine ore grinding for maximum recovery in beneficiation processes

• 🌀 Applicable to both dry and wet milling modes based on production requirements

• 🔧 Easy to integrate into existing production lines for cement, ceramics, and chemicals

• 🛠️ Equipped with high-strength liners and wear-resistant steel balls for long service life

Technical Parameters

Due to extensive model variations, please contact us or download our full technical catalog for comprehensive specs.

Model	Drum size (mm)	Rotary Speed (r/min)	Ball loading (t)	Feed size (mm)	Capacity (t/h)	Model	Power(kw)	Product size (L*W*H)(mm)	Weight (t)
GM0612	Φ600x1200	46.2	0.4	0-20	0.1-0.4	Y132M-6	5.5	2750×950x815	1.6
GM0715	Φ750x1500	44.09	0.9	0-20	0.2-0.6	Y160M-6	7.5	3250×1200×882	2.3
GM0909	φ900×900	41.6	0.83	0-25	0.2-0.7	V160L-6	11	3337×1850x1400	3.8
GM0912	Φ900x1200	41.6	1.1	0-25	0.3-0.9	Y160L-6	11	3843×1850×1400	4.2
GM0918	Φ900x1800	41.6	1.6	0-25	0.4-1.1	Y180-6	15	4443x1850×1400	5.6
GM0921	Φ900×2100	41.6	1.8	0-25	0.6-1.5	Y180L-6	22	4743×1850x1400	6.6
GM0930	Φ900x3000	41.6	2.6	0-25	0.9-2.3	Y225M-6	30	5943x1850×1400	7.7
GM1224	Φ1200×2400	35.2	4.0	0-25	1.6-41	Y250M-8	30	5540×2300x1850	10
GM1228	Φ1200×2800	35.2	4.6	0-25	1.9-4.8	Y280S-8	37	5940×2300×1850	10.9
GM1232	Φ1200x3200	35.2	5.3	0-25	2.2-5.5	Y280M-8	45	6340×2300×1850	11.2
GM1244	Φ1200×4400	35.2	7.3	0-25	3.0-7.5	Y315M-8	75	7540×2300x1850	13.2
GM1524	Φ1500×2400	30.7	6.5	0-25	2.8-6.5	Y315S-8	55	6830×2930×2060	15.4
GM1530	Φ1500x3000	30.7	8.1	0-25	3.5-8.0	JR117-8	80	7430×2930×2060	16.8
GM1536	Φ1500x3600	30.7	9.8	0-25	4.5-100	JR125-8	95	8030×2930×2060	18.6
GM1542	φ1500×4200	30.9	11.4	0-25	5.0-11.0	JR126-8	110	8630×2930×2060	19.3
GM1545	Φ1500×4500	30.9	12.5	0-25	5.5-13.5	JR126-8	110	8930×2930×2060	20
GM1557	Φ1500×5700	30.9	15.5	0-25	7.0-15.5	JR127-8	130	10130×2930×2060	23.5
GM1563	Φ1500x6300	31.1	17.1	0-25	8.0-17.0	JR128-8	155	10730×2930×2060	24.3
GM1830	Φ1830x3000	27	13.0	0-25	3.0-17.0	JR127-8	130	9525×3960×2250	29.4
GM1833	Φ1830x3300	27	14.0	0-25	3.3-20.0	JR128-8	155	9925×3960×2250	30.3
GM1836	Φ1830x3600	27	15.0	0-25	4.0-21.5	JR128-8	155	10125×3960×2250	31.6
GM1839	Φ1830x3900	27	17.0	0-25	4.5-24.0	JR128-8	155	10525×3960×2250	32.7
GM1845	Φ1830×4500	27.2	18.6	0-25	6.0-28.0	JR136-8	180	10925×3960×2250	34.2
GM1851	Φ1830×5100	27.2	21	0-25	8.0-50.0	JR136-8	180	11725×3960×2250	37.7
GM1860	Φ1830×6000	27.2	24.5	0-25	10.0-60.0	JR138-8	245	11336x3960×2250	41.4
GM1869	Φ1830x6900	27.2	28.5	0-25	11.0-65.0	JR139-8	280	13525×3960×2250	46.6
GM2121	Φ2100×2100	23.8	11.5	0-25	3.0-22.0	JR127-8	130	7775×4060×3400	38.7
GM2130	Φ2100×3000	23.9	16.5	0-25	4.0-30.0	JR136-8	180	8475×4060×3400	41.9
GM2136	Φ2100×3600	23.9	19.8	0-25	5.0-37.0	JR136-8	180	9225×4060×3400	44.5

Application Scenarios

• Mineral Processing: Ball mills are essential for fine grinding of metal ores such as iron, copper, and gold, enabling effective separation of valuable minerals during flotation and leaching.

• Chemical Industry: Used for particle size reduction of raw materials in the manufacturing of pigments, resins, catalysts, and other fine chemicals. Offers consistent fineness and controlled grinding atmosphere.

• Ceramic Industry: In ceramic production, ball mills convert raw mineral clays into homogeneous slurries, improving molding properties and firing consistency for tiles, sanitaryware, and structural ceramics.

• Building Materials: Vital in cement manufacturing lines, grinding clinker, gypsum, and fly ash to produce Portland and blended cement types. Enhances compressive strength and surface finish of the final product.

After-Sales Service

• Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.

• Support engineers to provide on-site guidance for installation and commissioning;

• 7*24 hours online communication and guidance;

• Product manuals and installation videos are provided;

Looking for a trusted ball mill manufacturer for your industrial needs? Contact us today for pricing, customization, and shipping options.
