Tailings recovery blanket machine

Model	Capacity (d/t)	Power (kW)	Feed Concentration (%)	Feeding Size (μm)	Weight (kg)	Dimensions (mm) (L×W×H)
1200×6000	50-72	2.2	≤35	5-100	1300	7600×1500×1100
1200×8000	50-72	2.2	≤35	5-100	2100	9600×1500×1100
1200×10000	50-72	3	≤35	5-100	2800	11600×1500×1100
1400×6000	70-90	3	≤35	5-100	2200	7600×1700×1100
1400×8000	70-90	3	≤35	5-100	2900	9600×1700×1100
1400×10000	70-90	4	≤35	5-100	3100	11600×1700×1100

Tailings Recovery Blanket Machine for Fine Particle Gravity Separation

Table of Contents

• Product Description

• Product Features

• Technical Parameters

• Application Scenarios

• Packing & Transportation

• After-Sales Service

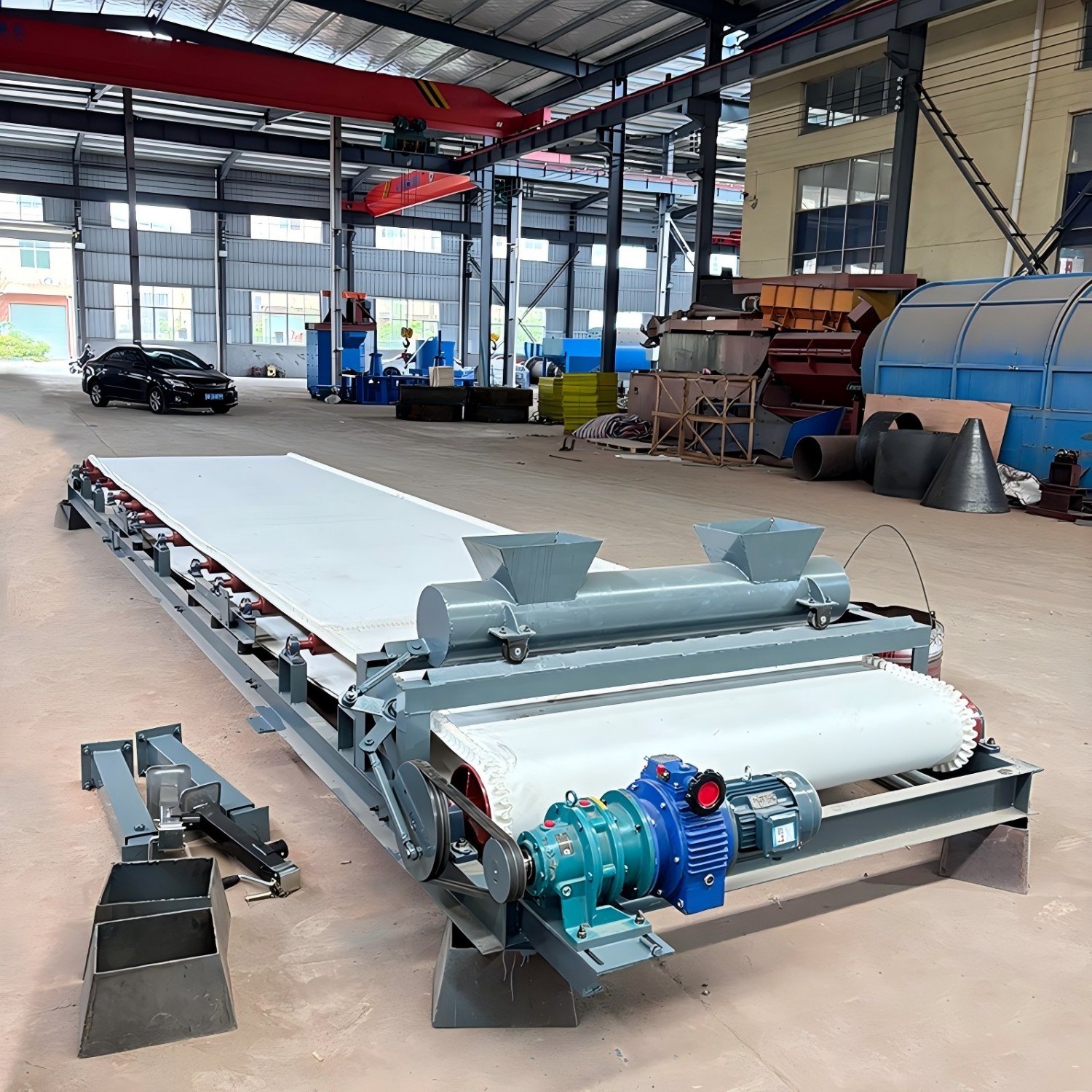

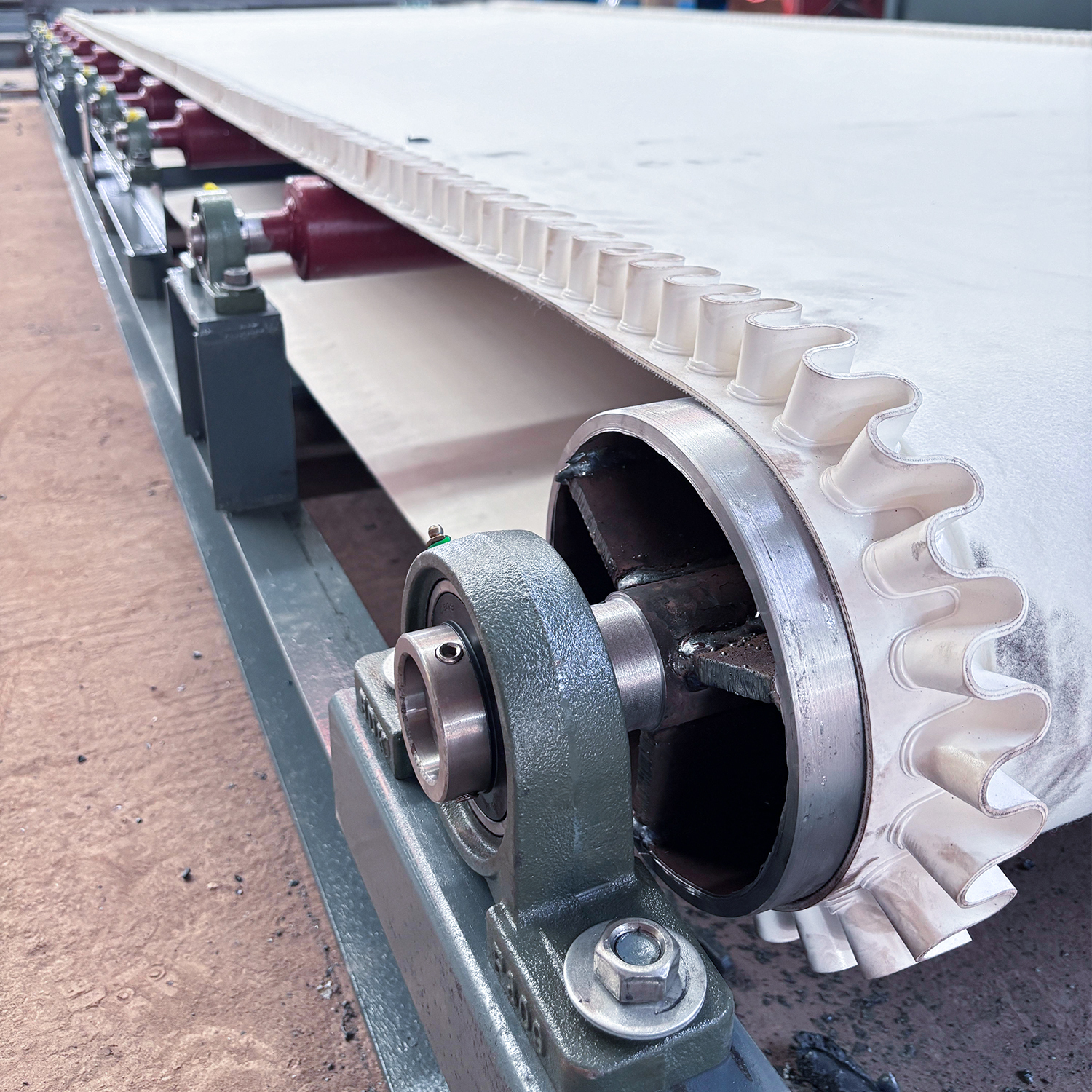

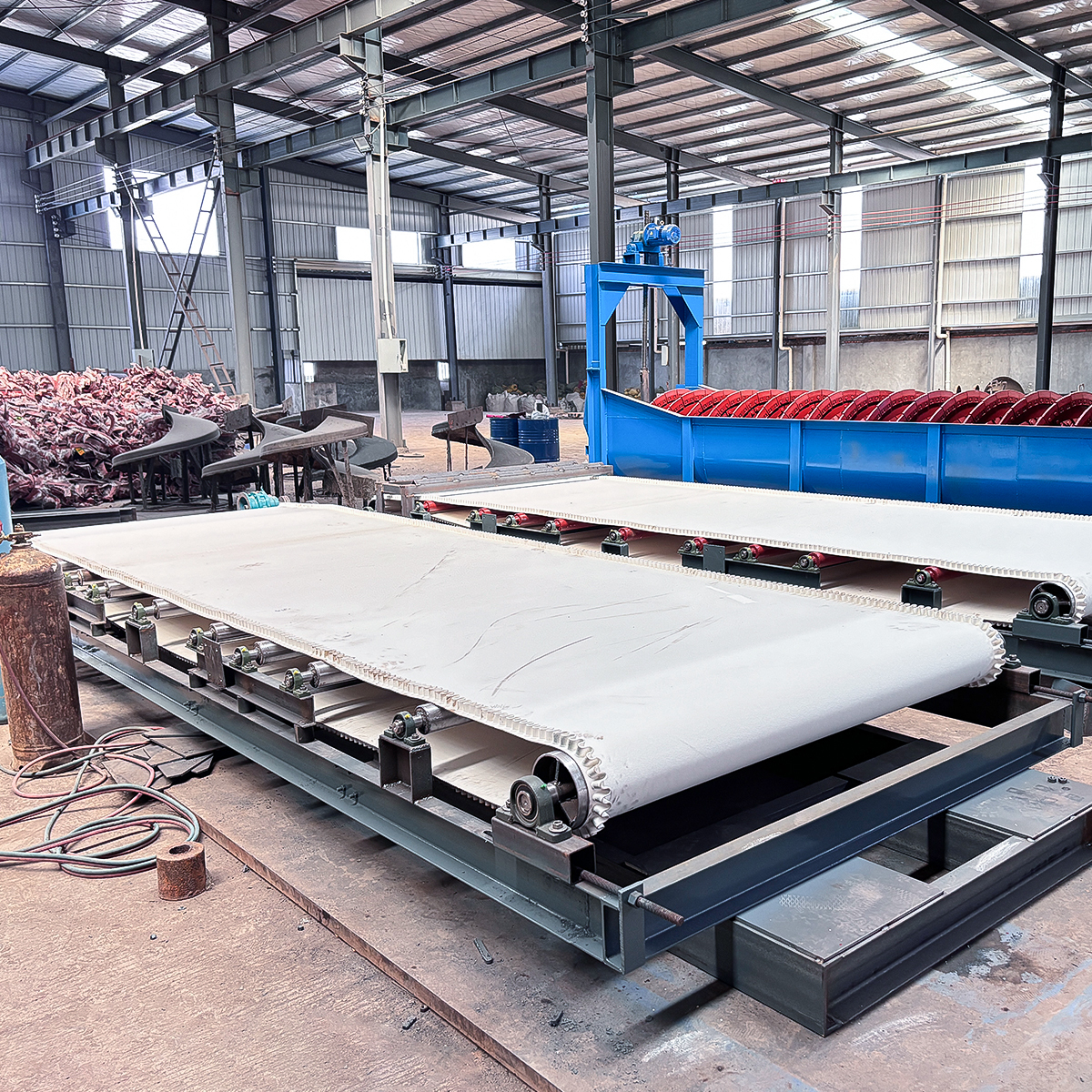

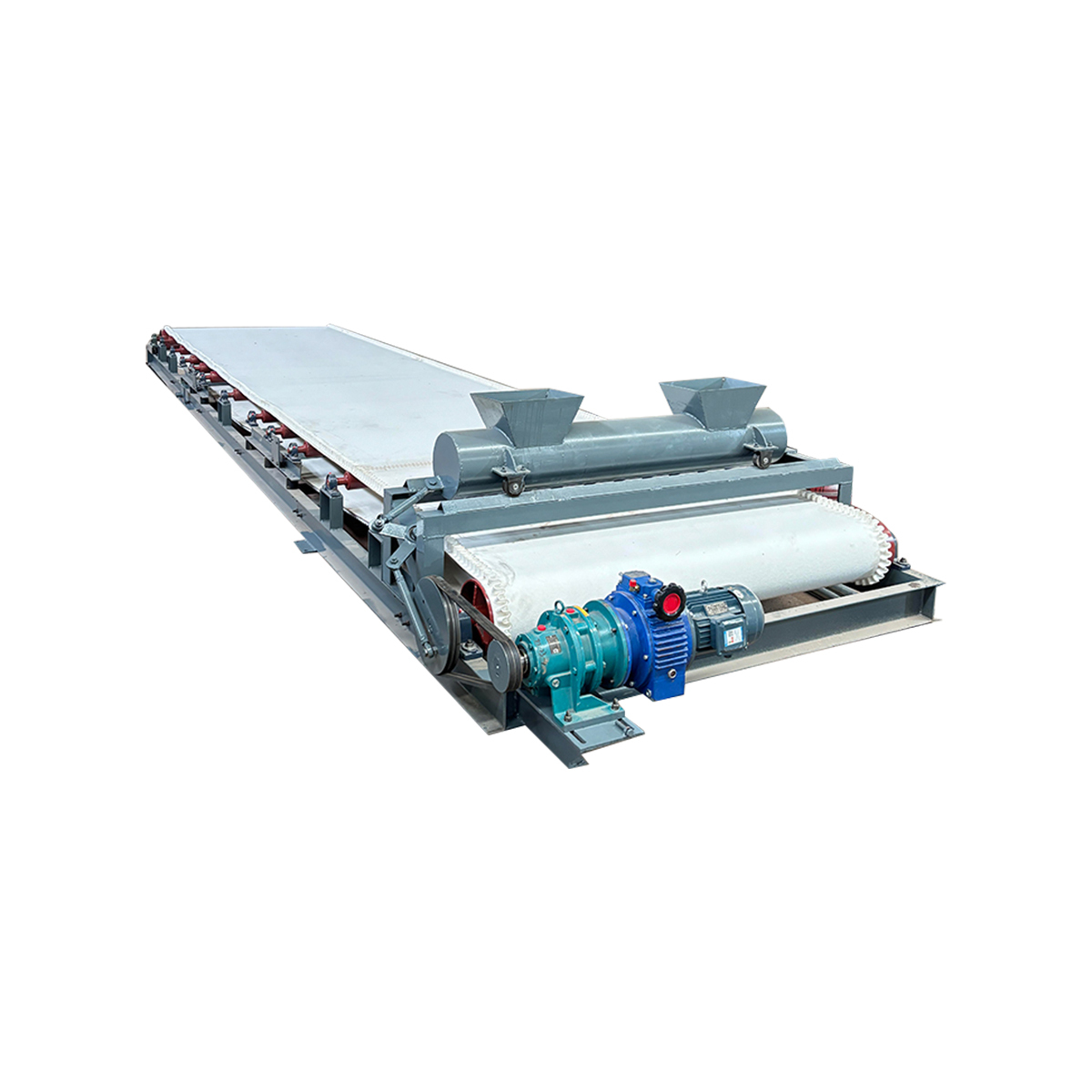

Product Description

The tailings recovery blanket machine, also known as a felt machine, is an advanced gravity separation equipment designed to efficiently recover fine particle tailings from various mineral ores. Multiple models and types are available to suit different mining needs, including vibrating felt machines and swinging felt machines. This machine is especially effective at recovering tailings with very fine particle sizes, ensuring a high recovery rate.

The jointless blanket machine represents the latest innovation in tailings recovery technology, outperforming traditional equipment such as shaking tables, spiral chutes, and jig concentrators. It offers advantages such as a higher concentrate grade, superior separation efficiency, ease of supervision, and simple adjustment during operation.

Designed for robust and continuous operation, the tailings recovery blanket machine is highly reliable for recovering valuable minerals from rare metal tailings including tungsten, tin, gold, copper, lead, zinc, chromium, titanium, zirconium, rare earth elements, rutile, monazite, tantalum, niobium, garnet, quartz, and kaolin.

Product Features

• High recovery rate for fine particle tailings with optimized felt surfaces

• Multiple machine types: vibrating felt machine and swinging felt machine for versatile use

• Jointless design enhances durability and reduces maintenance requirements

• Suitable for raw ore and fine mineral recovery, including rare and precious metals

• Simple operation and easy adjustment for improved separation efficiency

• Low power consumption with stable and continuous performance

Technical Parameters

Model	Capacity (d/t)	Power (kW)	Feed Concentration (%)	Feeding Size (μm)	Weight (kg)	Dimensions (mm) (L×W×H)
1200×6000	50-72	2.2	≤35	5-100	1300	7600×1500×1100
1200×8000	50-72	2.2	≤35	5-100	2100	9600×1500×1100
1200×10000	50-72	3	≤35	5-100	2800	11600×1500×1100
1400×6000	70-90	3	≤35	5-100	2200	7600×1700×1100
1400×8000	70-90	3	≤35	5-100	2900	9600×1700×1100
1400×10000	70-90	4	≤35	5-100	3100	11600×1700×1100

Application Scenarios

The tailings recovery blanket machine is widely used in gravity separation to purify and recover minerals from tailings and ores, including:

• Rare metal ores: Tungsten, tin, gold, copper, lead, zinc, chromium, titanium, zirconium, rare earths, rutile, monazite, tantalum, niobium, garnet, quartz, kaolin

• Tailings recovery: Efficiently recovers fine particle tailings with high recovery rates

• New technology jointless blanket machine: Higher ore concentration ratio and separation efficiency compared to traditional shaking tables and spiral chutes

• Suitable for both raw ore and fine particle recovery, offering easy operation and adjustment

Packing & Transportation

All machines are securely packed with protective packaging suitable for international shipping via sea or land, ensuring safe delivery to the destination.

After-Sales Service

• Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.

• Support engineers to provide on-site guidance for installation and commissioning;

• 7*24 hours online communication and guidance;

• Product manuals and installation videos are provided;
