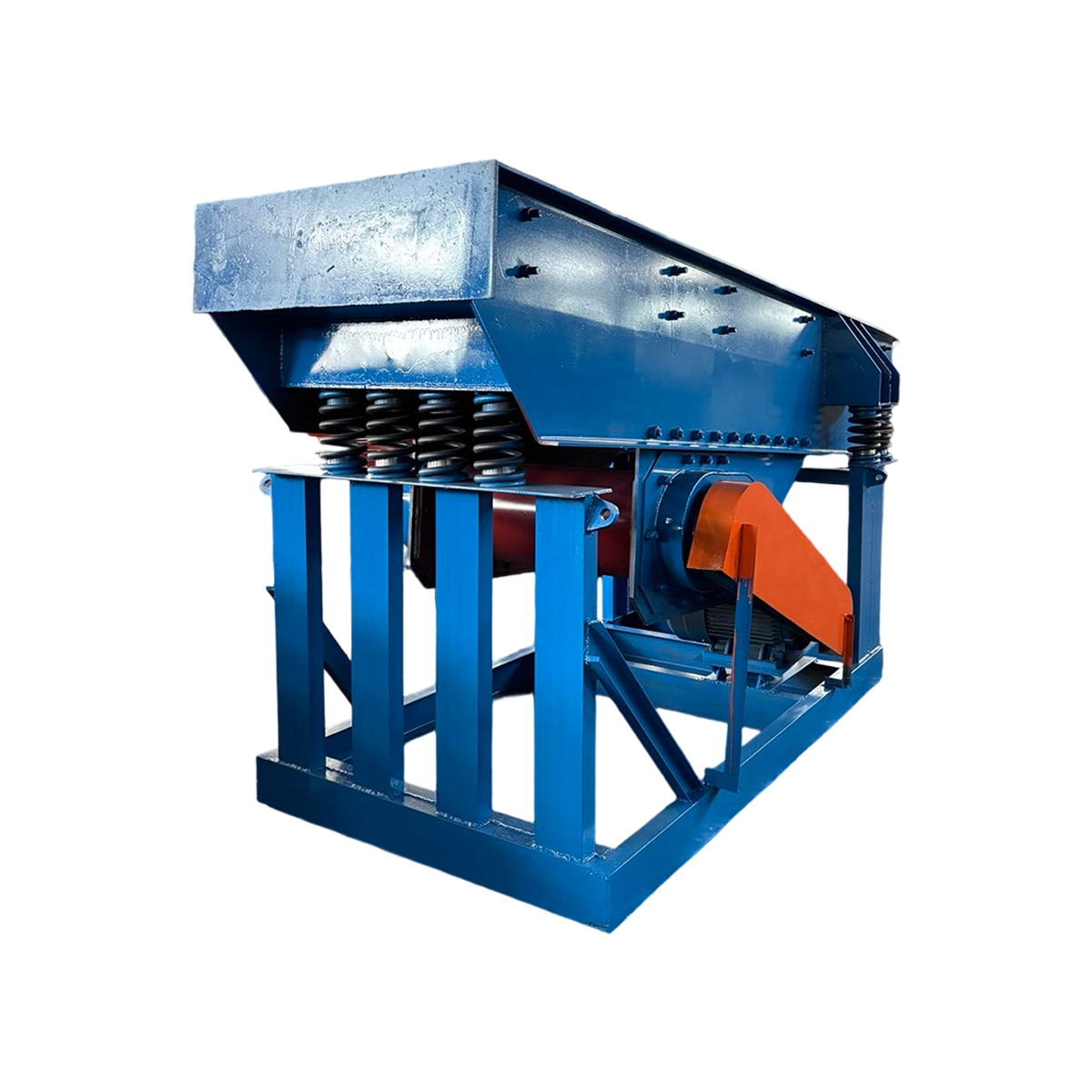

Vibrating feeder

Model	Max Feeding Size (mm)	Rotating Speed (r/min)	Capacity (t/h)	Power (kW)	Weight (tons)
ZSW300x80	450	500–750	50–120	7.5	3.5
ZSW380x95	500	150–300	150–300	11	4
ZSW420x110	600	500–800	150–300	15	4.5
ZSW490x110	600	500–800	200–400	18.5	5
ZSW490x130	700	500–800	300–500	22	6
ZSW600x130	800	500–800	450–800	30	8
ZSW600x150	900	500–800	600–1000	37	10
ZSW600x180	900	500–800	700–1200	45	12
ZSW600x200	1000	500–800	900–1500	45	14

High-Efficiency Vibrating Feeder for Continuous Material Feeding

Table of Contents

▶ Product Overview
▶ Key Features & Benefits
▶ Technical Specifications
▶ Application Scenarios
▶ After-Sales Service

Product Overview

Our vibrating feeder is an advanced, highly efficient equipment used to transport and distribute materials in a controlled and continuous manner. Engineered for durability and stability, it uses the principle of vibration to move bulk materials across short distances, helping facilitate production flows in mining operations, quarry production, sand & gravel plants, and chemical industries.

Built with a rugged structure and optimized for low energy consumption, the industrial feeder machine provides a consistent flow of granular or lumpy materials to downstream equipment such as crushers, screens, and conveyors. Whether feeding heavy ores, construction aggregates, or powdered chemicals, this mining vibrating feeder ensures precise and stable feeding without spillage or clogging, greatly improving production efficiency.

It is especially effective in harsh environments and continuous working conditions. Adjustable speed and feeding volume settings provide enhanced flexibility for different applications, making this feeder an essential component of any modern material handling system. Its robust design and compact layout allow easy integration into your existing equipment and plant structure.

Key Features & Benefits

• Ensures even and continuous feeding of materials to crushers, screens, or conveyors

• Reduces equipment clogging and operational downtime

• Works reliably with bulk materials and heavy ores

• Highly durable structure for mining and industrial environments

• Variable feeding capacity to suit different production lines

• Energy-efficient and low-maintenance operation

• Compact structure for easy installation and plant integration

• Customizable feed troughs and control settings for various material types

Technical Specifications

Model	Max Feeding Size (mm)	Rotating Speed (r/min)	Capacity (t/h)	Power (kW)	Weight (tons)
ZSW300x80	450	500–750	50–120	7.5	3.5
ZSW380x95	500	150–300	150–300	11	4
ZSW420x110	600	500–800	150–300	15	4.5
ZSW490x110	600	500–800	200–400	18.5	5
ZSW490x130	700	500–800	300–500	22	6
ZSW600x130	800	500–800	450–800	30	8
ZSW600x150	900	500–800	600–1000	37	10
ZSW600x180	900	500–800	700–1200	45	12
ZSW600x200	1000	500–800	900–1500	45	14

Application Scenarios

1. Ore Mining and Transportation

Used to deliver ores from mining sites to crushers or beneficiation plants. Improves efficiency and material handling accuracy in mining.

2. Mineral Processing

Perfect for ore classification, pre-screening, and feeding. This mineral vibrating feeder enhances separation and reduces process blockages.

3. Sand & Gravel Production

Feeds sand, stone, and crushed aggregates evenly into screens and crushers. It plays a vital role in aggregate plant automation.

4. Chemical & Metallurgical Industry

Efficiently feeds chemical powders, recycled materials, or slag into the next production unit to ensure a steady flow of material and consistent processing.

After-Sales Service

• Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.

• Support engineers to provide on-site guidance for installation and commissioning;

• 7*24 hours online communication and guidance;

• Product manuals and installation videos are provided;
