Ball Mill vs Raymond Mill: Which One Is Best for Gold Ore?
In gold ore processing, choosing the right grinding equipment is one of the most important factors affecting recovery rate, production efficiency, and overall project profitability. This article provides a comprehensive comparison of Ball Mill vs Raymond Mill for gold ore grinding, including structure, working principle, advantages, limitations, and real mining applications.
π Tabla de Contenido (Clickable Table of Contents)
- 1. Introduction: Why Grinding Matters in Gold Ore Processing?
- 2. Overview of Ball Mill and Raymond Mill
- 3. What Is a Ball Mill? (Structure & Working Principle)
- 4. What Is a Raymond Mill? (Structure & Working Principle)
- 5. Ball Mill vs Raymond Mill: Detailed Comparison
- 6. Which Mill Is Best for Gold Ore?
- 7. How to Choose the Right Grinding Mill for Your Gold Processing Plant?
- 8. Related Internal Products for Gold Mining
- 9. Conclusion
1. Introduction: Why Grinding Matters in Gold Ore Processing?
In modern gold mining operations, the grinding stage directly affects gold liberation, recovery rate, and final processing cost. Whether using gravity separation, flotation, or cyanidation, the ore must be ground to a suitable particle size.
Two of the most widely used grinding machines are the Ball Mill and the Raymond Mill. Each equipment type brings its own advantages depending on hardness, moisture, capacity requirements, and desired fineness.
2. Overview of Ball Mill and Raymond Mill
Both Ball Mills and Raymond Mills are widely used in mining, but they serve different purposes:
- Ball Mill β best for hard rock gold ore, high-capacity grinding, and fine particle size.
- Raymond Mill β best for soft to medium-hard minerals, lower capacity, and fine powder production.
Understanding the differences between Ball Mill vs Raymond Mill helps mining investors optimize their gold ore processing flows.
3. What Is a Ball Mill? (Structure & Working Principle)

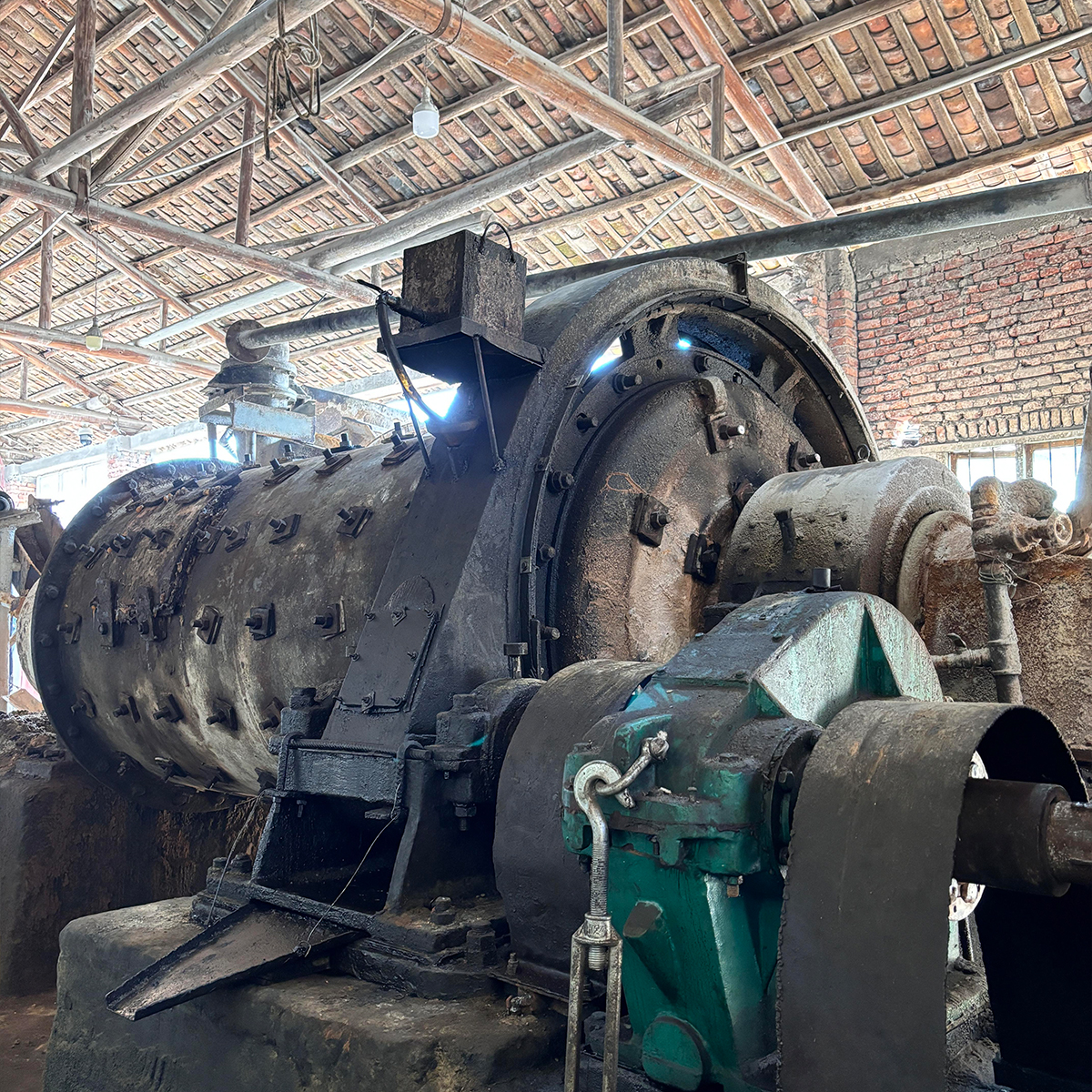

A Ball Mill is a horizontal rotating cylinder filled with steel balls. As the shell rotates, the balls lift and cascade, grinding the ore into fine particles.
Ball Mill Structure
- Feed Hopper
- Rotating Cylinder
- Grinding Media (Steel Balls)
- Discharge Grid or Overflow Outlet
- Motor & Transmission System
Ball Mill Working Principle
Ore + water (or dry materials) enter the rotating cylinder. The falling motion of steel balls crushes the ore through impact and attrition. Ball Mills are ideal for:
- Gold ore
- Copper ore
- Iron ore
- Quartz
- Silica sand
4. What Is a Raymond Mill? (Structure & Working Principle)
A Raymond Mill is a vertical grinding mill used mainly for producing fine powder of soft minerals such as limestone, gypsum, barite, and clay.
Raymond Mill Structure
- Main Grinding Chamber
- Classifier
- Blower
- Analyzer
- Cyclone Collector
Raymond Mill Working Principle
The grinding rollers press the material against the grinding ring. The blower lifts fine powder into the classifier, separating the qualified product.
5. Ball Mill vs Raymond Mill: Detailed Comparison
| Parameter | Ball Mill | Raymond Mill |
|---|---|---|
| Material Hardness | Suitable for hard rock gold ore | Suitable for softer minerals |
| Final Particle Size | 0.074β0.4 mm | 80β325 mesh (finer powder) |
| Capacity | High (1β200 TPH) | Low to Medium (1β15 TPH) |
| Energy Consumption | Higher | Lower |
| Best Use Case | Gold ore grinding & beneficiation | Mineral powder production |
6. Which Mill Is Best for Gold Ore?
For gold ore processing, the Ball Mill is generally the best choice because:
- Gold ore is usually hard and abrasive
- Ball Mills achieve better liberation of gold particles
- Ball Mills integrate well with flotation, gravity, and CIP plants
However, Raymond Mill can also be used in gold mines when processing:
- Weathered gold ore
- Clay-type gold ore
- Fine powder production for smelting
7. How to Choose the Right Grinding Mill?
Choosing between Ball Mill vs Raymond Mill depends on:
- Gold ore hardness
- Desired particle size
- Processing capacity
- Investment budget
- Downstream equipment (flotation, CIP, gravity)
8. Related Internal Products for Gold Mining
Here are recommended products from Changyi Mining Machinery (changyimining.com):
- Ball Mill for Gold Mining
- Raymond Mill Grinding Plant
- Jaw Crusher for Gold Ore Crushing
- Vibrating Screen for Gold Mine
- Gold Processing Plant
9. Conclusion
When comparing Ball Mill vs Raymond Mill for gold ore, the Ball Mill remains the most efficient and widely used solution for hard rock gold mines. Raymond Mill is suitable for softer ore or powder-making applications.
For gold mining operations seeking high efficiency, stable production, and maximum gold liberation, a Ball Mill-based grinding circuit is usually the best investment.
