Cone Crusher

Model	Feed Opening Max Size (mm)	Recommended Max Feed Size (mm)	Discharge Port Size (mm)	Capacity (T/H)	Power (KW)	Speed (R/Min)	Voltage (V)	Oscillations (min)	Spring Pressure (T)	Weight (T)
900 Std/Med/Short	135 / 70 / 50	115 / 60 / 40	15-50 / 5-20 / 3-13	50-90 / 20-65 / 15-50	55	730	380	333	70	10.82
1200 Std/Med/Short	170 / 115 / 60	145 / 100 / 50	20-50 / 8-25 / 3-15	110-168 / 42-135 / 18-105	110	730	220/380	300	150	25
1750 Std/Med/Short	250 / 215 / 100	215 / 185 / 85	25-60 / 10-30 / 5-15	280-480 / 115-320 / 75-230	155	735	220/380	245	300	50
2200 Std/Short	350 / 130	300 / 100	30-60 / 5-15	590-1000 / 120-340	280	500	6000	220	400	79 / 80

Cone Crusher – High-Performance Crushing Solution for Mining and Construction

Table of Contents

• Product Description

• Product Features

• Technical Parameters

• Application Scenarios

• After-Sales Service

Product Description

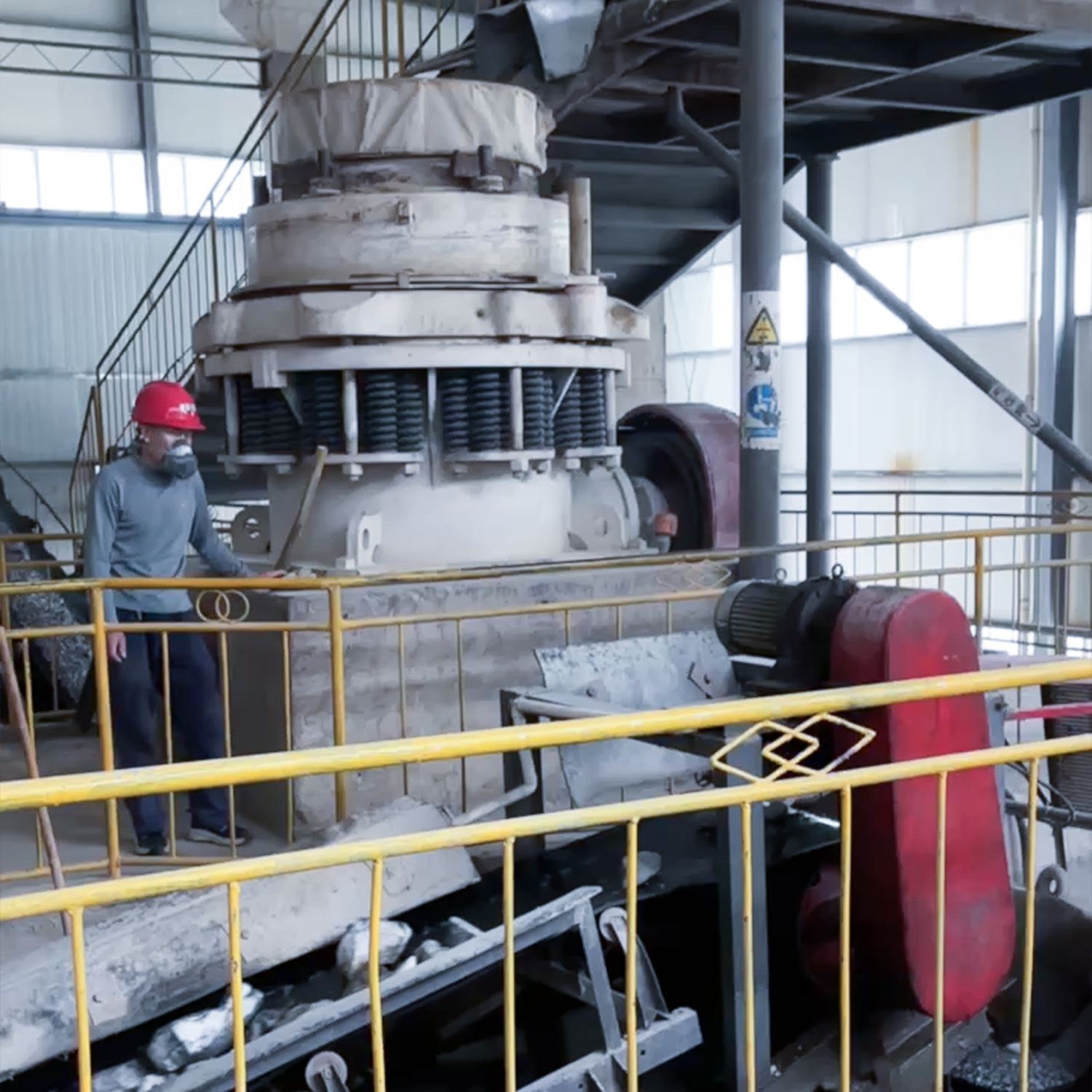

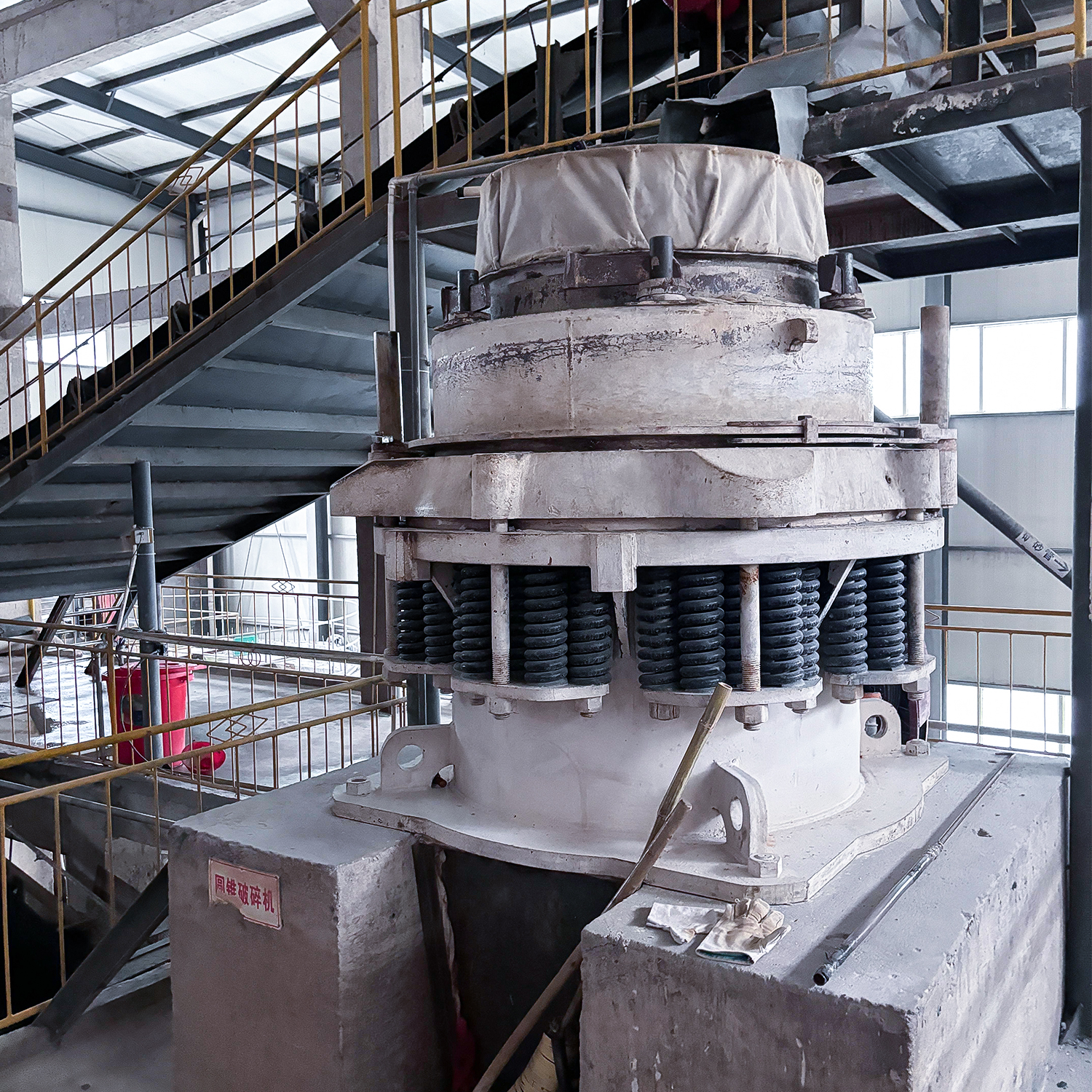

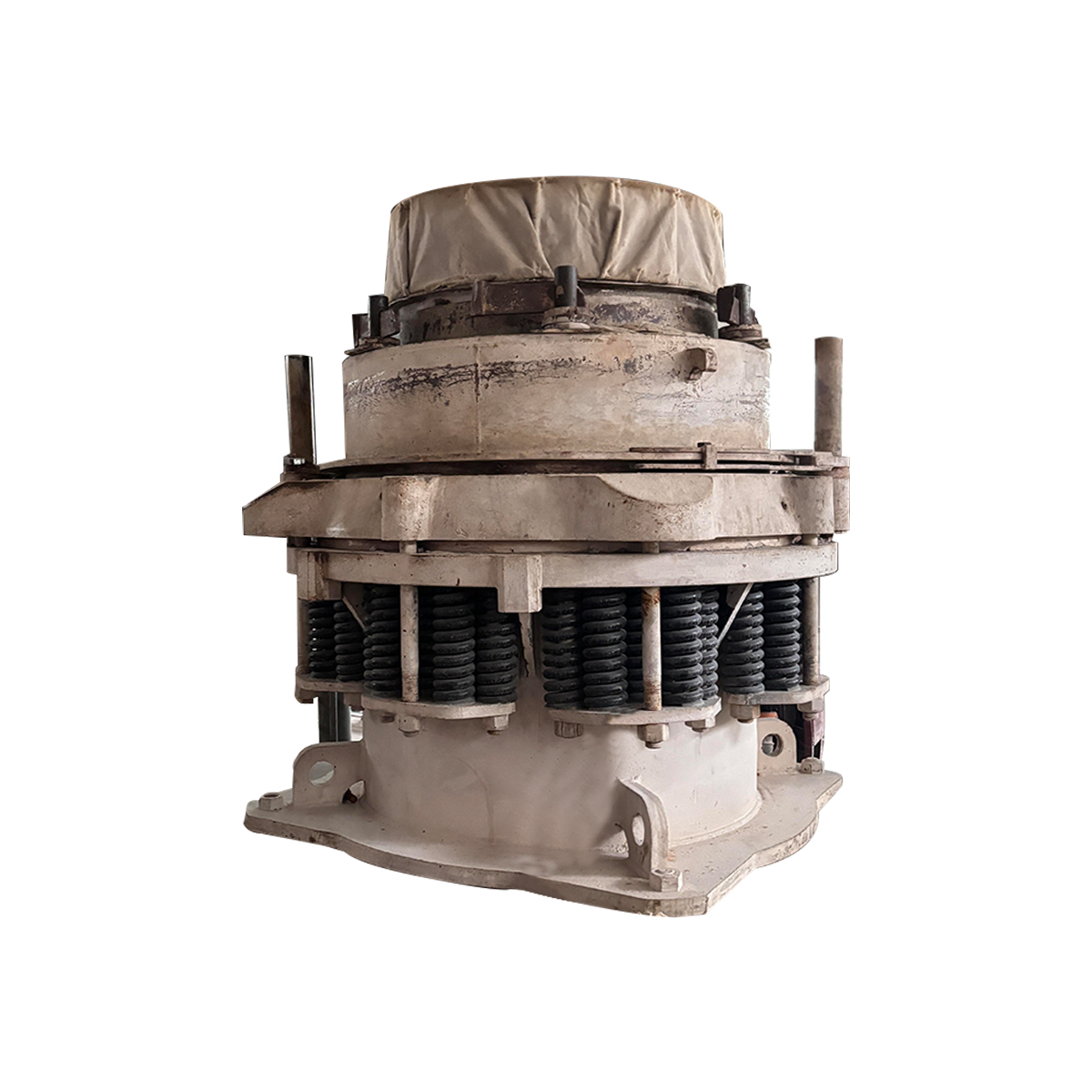

The cone crusher is a powerful and efficient crushing machine designed for medium and fine crushing of hard and medium-hard ores and rocks.
It is widely used in metal ore mining, non-metallic ore processing, and construction aggregate production. With a large crushing ratio,
high efficiency, low energy consumption, and uniform output size, this machine significantly improves production capacity and operational reliability.
The cone crusher features a robust structure, advanced spring protection system, and a wedge or shim adjustment system for easy discharge port adjustment.
It is built for heavy-duty performance in harsh mining and industrial conditions.

Product Features

• High crushing efficiency with low energy consumption

• Suitable for crushing various types of ores and rocks

• Adjustable discharge size with wedge or shim mechanism

• Durable structure and low maintenance requirements

• Spring overload protection to prevent damage from uncrushable materials

• Available in standard, medium, and short head types to meet different needs

Technical Parameters

Model	Feed Opening Max Size (mm)	Recommended Max Feed Size (mm)	Discharge Port Size (mm)	Capacity (T/H)	Power (KW)	Speed (R/Min)	Voltage (V)	Oscillations (min)	Spring Pressure (T)	Weight (T)
900 Std/Med/Short	135 / 70 / 50	115 / 60 / 40	15-50 / 5-20 / 3-13	50-90 / 20-65 / 15-50	55	730	380	333	70	10.82
1200 Std/Med/Short	170 / 115 / 60	145 / 100 / 50	20-50 / 8-25 / 3-15	110-168 / 42-135 / 18-105	110	730	220/380	300	150	25
1750 Std/Med/Short	250 / 215 / 100	215 / 185 / 85	25-60 / 10-30 / 5-15	280-480 / 115-320 / 75-230	155	735	220/380	245	300	50
2200 Std/Short	350 / 130	300 / 100	30-60 / 5-15	590-1000 / 120-340	280	500	6000	220	400	79 / 80

Application Scenarios

Metal Ore Mining

Cone crusher is ideal for crushing copper ore, iron ore, and gold ore into smaller particles suitable for further beneficiation processes.
It ensures uniform particle size and increases ore recovery rate.

Non-metallic Ore Processing

It efficiently handles materials like limestone, marble, and quartzite for use in cement, construction, and chemical industries.

Construction Aggregate Production

Produces high-quality aggregates for concrete, highway, bridge, and infrastructure projects with consistent shape and size.

After-Sales Service

• Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.

• Support engineers to provide on-site guidance for installation and commissioning;

• 7*24 hours online communication and guidance;

• Product manuals and installation videos are provided;
