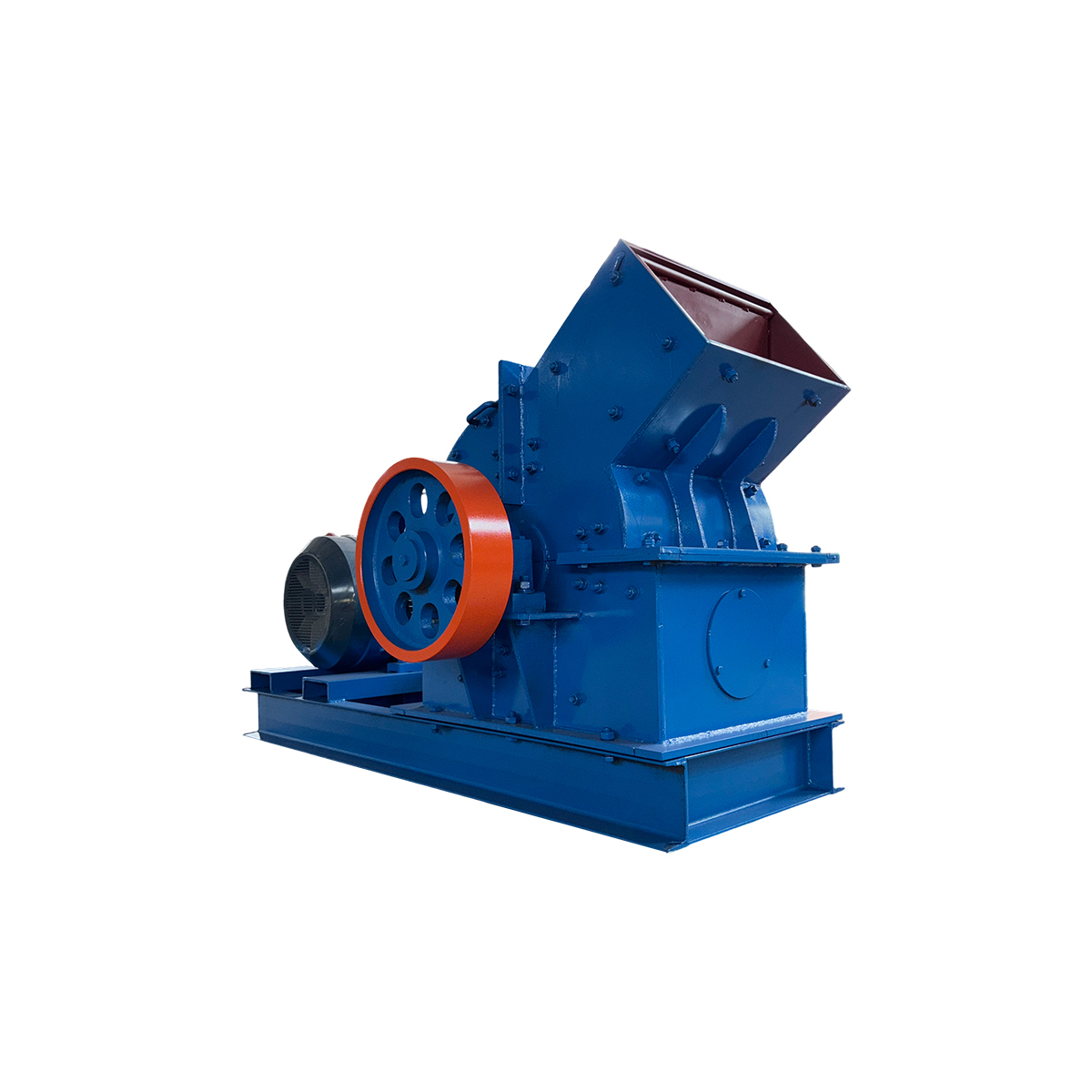

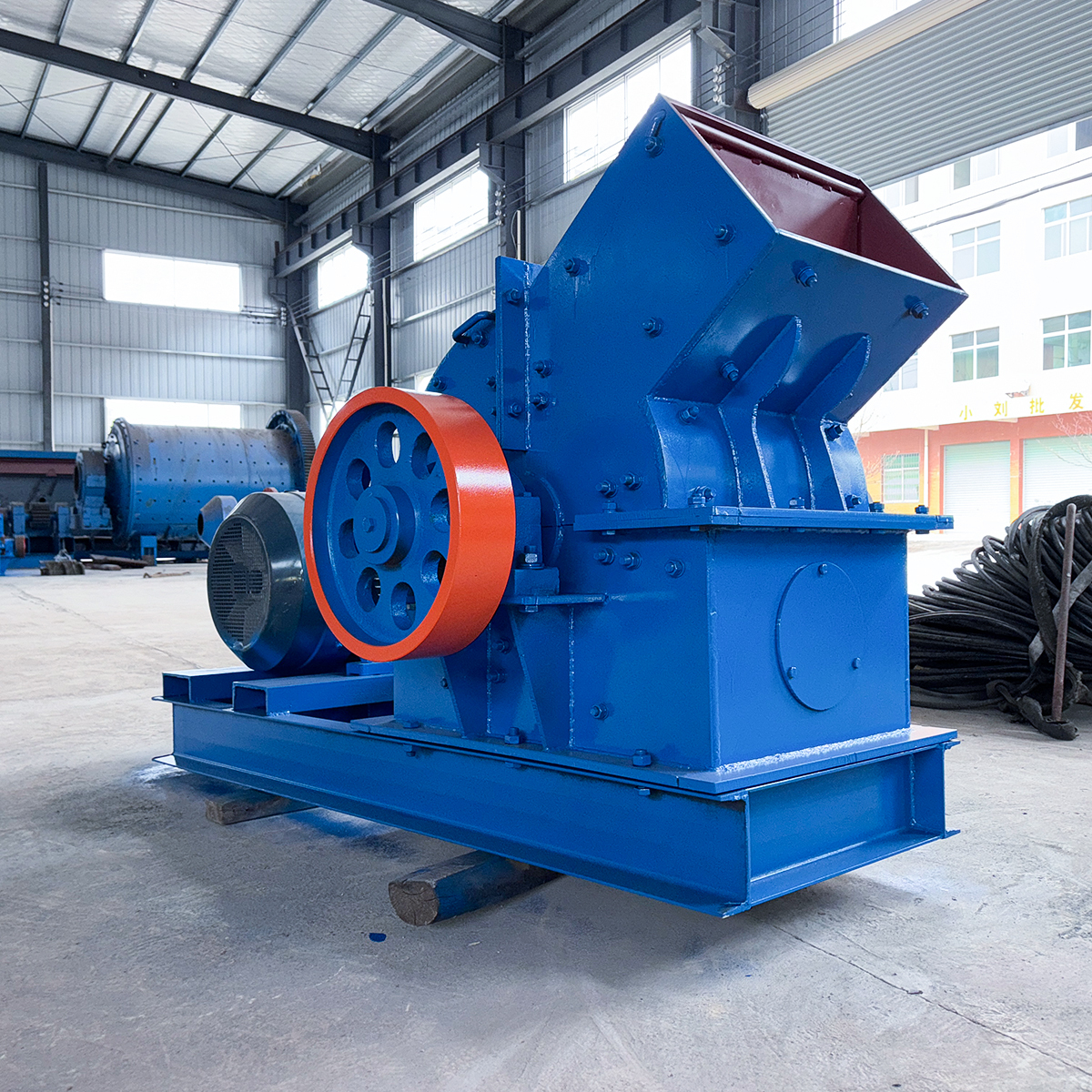

Hammer crusher

Model	Rotor Speed (r/min)	Feeding Size (mm)	Output Size (mm)	Capacity (t/h)	Power (kW)	Weight (t)	Dimensions (mm)
PC400×400	1500	≤100	0–30	5–8	7.5	0.9	844×942×878
PC600×400	1000	≤100	0–35	10–12	18.5	1.03	1054×972×1117
PC600×600	1000	≤100	0–35	12–18	45	2.14	1315×840×1501
PC800×600	1000	≤120	0–45	20–25	55	2.45	1515×2586×1040
PC1000×1000	1000	≤200	0–45	40–80	132	7.59	3514×2230×1515
PC1250×1250	750	≤200	0–45	90–110	185	13.2	2630×2180×2050
PC1600×1600	600	≤350	0–60	220–280	450	22.8	3350×3120×2660

High-Efficiency Hammer Crusher for Cement, Coal, Mining & Aggregates

Product Description:

The Hammer Crusher is a high-performance crushing machine designed to crush a wide variety of hard and brittle materials. Engineered for versatility, this industrial hammer crusher is commonly used in the cement, mining, chemical, metallurgical, and building materials industries. Its powerful rotating hammer rotor delivers a high crushing ratio and uniform particle size, making it ideal for processing limestone, coal, gypsum, salt, chalk, and many other materials.

With a complete range of models, the hammer crusher can be customized to suit various production requirements. Whether you're building a sand production line, a crushing plant, or a beneficiation system, this stone crushing machine offers stable performance, low energy consumption, and consistent output. The machine can handle feeding sizes up to 350mm and produce output granularity from 0-60mm depending on the model and material hardness.

Features & Advantages:

• 🔩 Wide Material Compatibility: Crushes limestone, coal, bricks, salts, ores, and more.

• ⚙️ Robust Construction: Heavy-duty design ensures long service life and minimal maintenance.

• ⚡ High Crushing Efficiency: Uniform output, adjustable discharge size, and low power consumption.

• 🏗️ Versatile Applications: Fits cement plants, coal yards, mining operations, and road construction.

• 🔧 Customizable Models: Available in various sizes and power configurations to match specific needs.

Technical Specifications:

Model	Rotor Speed (r/min)	Feeding Area Size (mm)	Max Feeding Size (mm)	Discharge Size (mm)	Capacity (t/h)	Power (kW)	Weight (t)	Dimensions (L×W×H mm)
PC400×400	1500	145 × 450	≤100	0–30	5–8	7.5	0.9	844 × 942 × 878
PC600×400	1000	295 × 450	≤100	0–35	10–12	18.5	1.03	1054 × 972 × 1117
PC600×600	1000	295 × 570	≤100	0–35	12–18	45	2.14	1315 × 840 × 1501
PC800×600	1000	350 × 570	≤120	0–45	20–25	55	2.45	1515 × 2586 × 1040
PC800×800	1000	350 × 850	≤120	0–45	35–45	55	3.05	1515 × 2831 × 1040
PC1000×800	1000	580 × 850	≤200	0–45	25–40	110	6.5	3206 × 2210 × 1515
PC1000×1000	1000	580 × 1060	≤200	0–45	40–80	132	7.59	3514 × 2230 × 1515
PC1250×800	750	650 × 850	≤200	0–45	20–50	132	11.7	2630 × 1780 × 2050
PC1250×1250	750	650 × 1330	≤200	0–45	90–110	185	13.2	2630 × 2180 × 2050
PC1400×1400	750	1050 × 1540	≤250	0–45	120–170	280	17.2	2790 × 2800 × 2310
PC1600×1600	600	1500 × 1785	≤350	0–60	220–280	450	22.8	3350 × 3120 × 2660

Application Scenarios:

1. Cement and Building Materials Industry

The hammer crusher for limestone is widely used to process raw materials like limestone, gypsum, and bricks. It ensures ideal particle size for cement production.

2. Coal and Power Industry

As a hammer mill for coal, this machine efficiently crushes coal into smaller sizes, facilitating transport and combustion in thermal power plants.

3. Chemical & Metallurgical Industries

Ideal for crushing salt, chalk, and chemical ores. It enables chemical reactions by preparing raw materials to the required fineness.

4. Mining and Quarrying

Used for crushing hard rock minerals like shale, tuff, feldspar, and magnesite. Prepares materials for ore dressing and downstream processes.

5. Sand and Gravel Production Line

Acts as a primary crushing machine in sand making lines, ensuring feed material is of suitable size for sand-making equipment.

After-Sales Service:

• Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.

• Support engineers to provide on-site guidance for installation and commissioning;

• 7*24 hours online communication and guidance;

• Product manuals and installation videos are provided;
