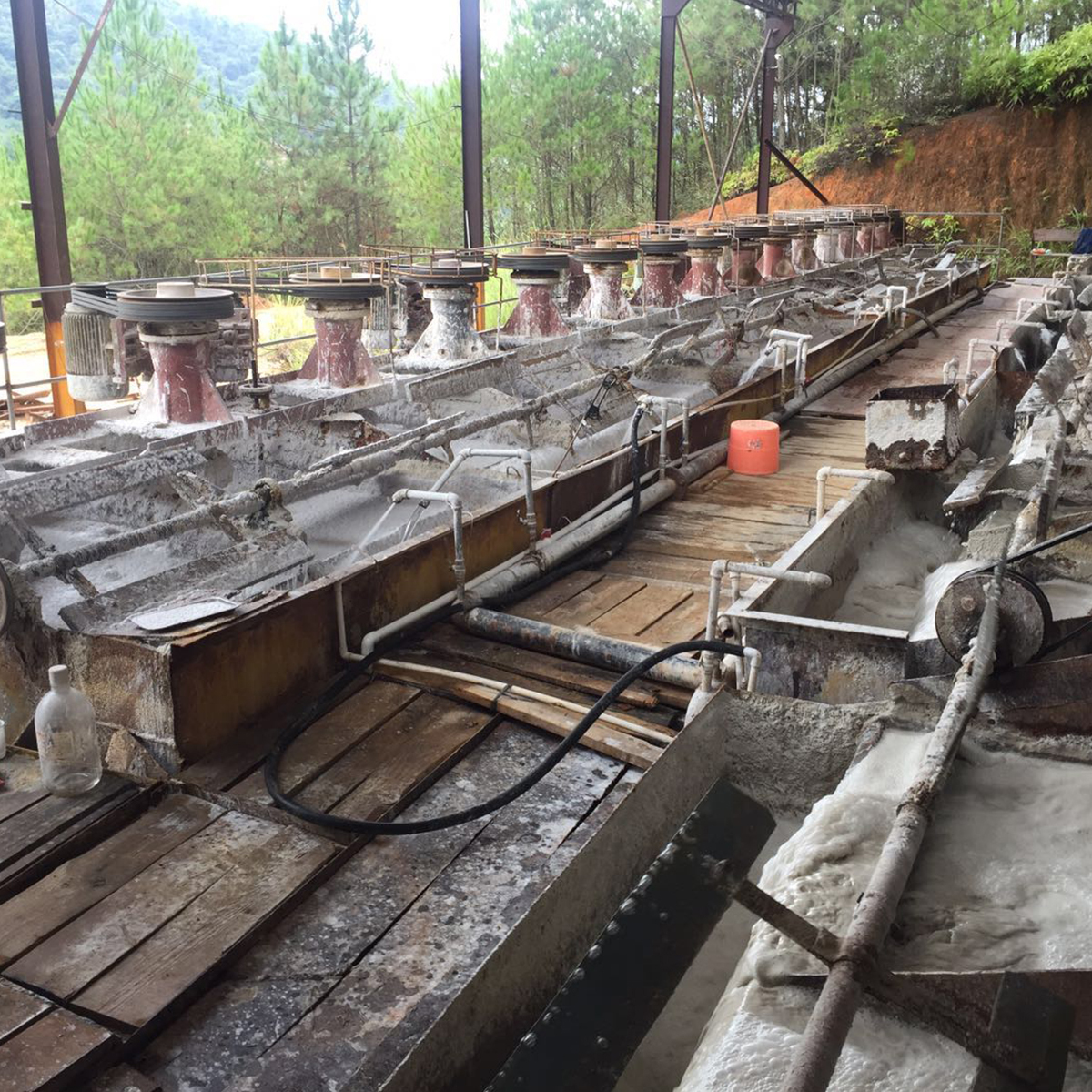

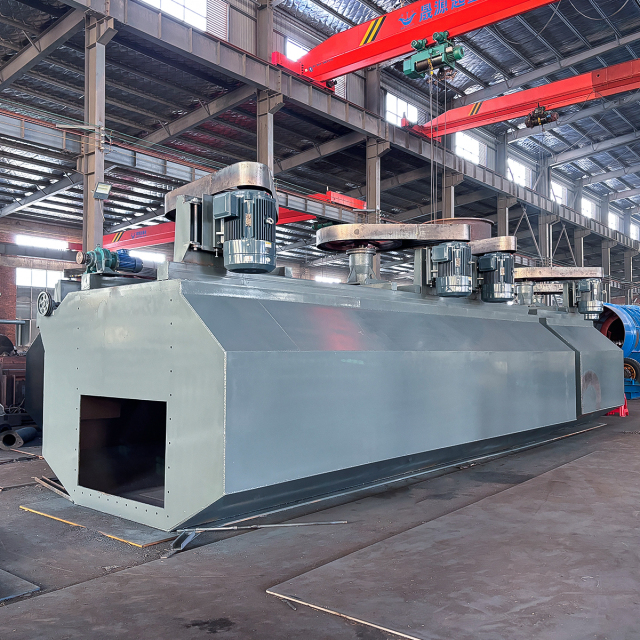

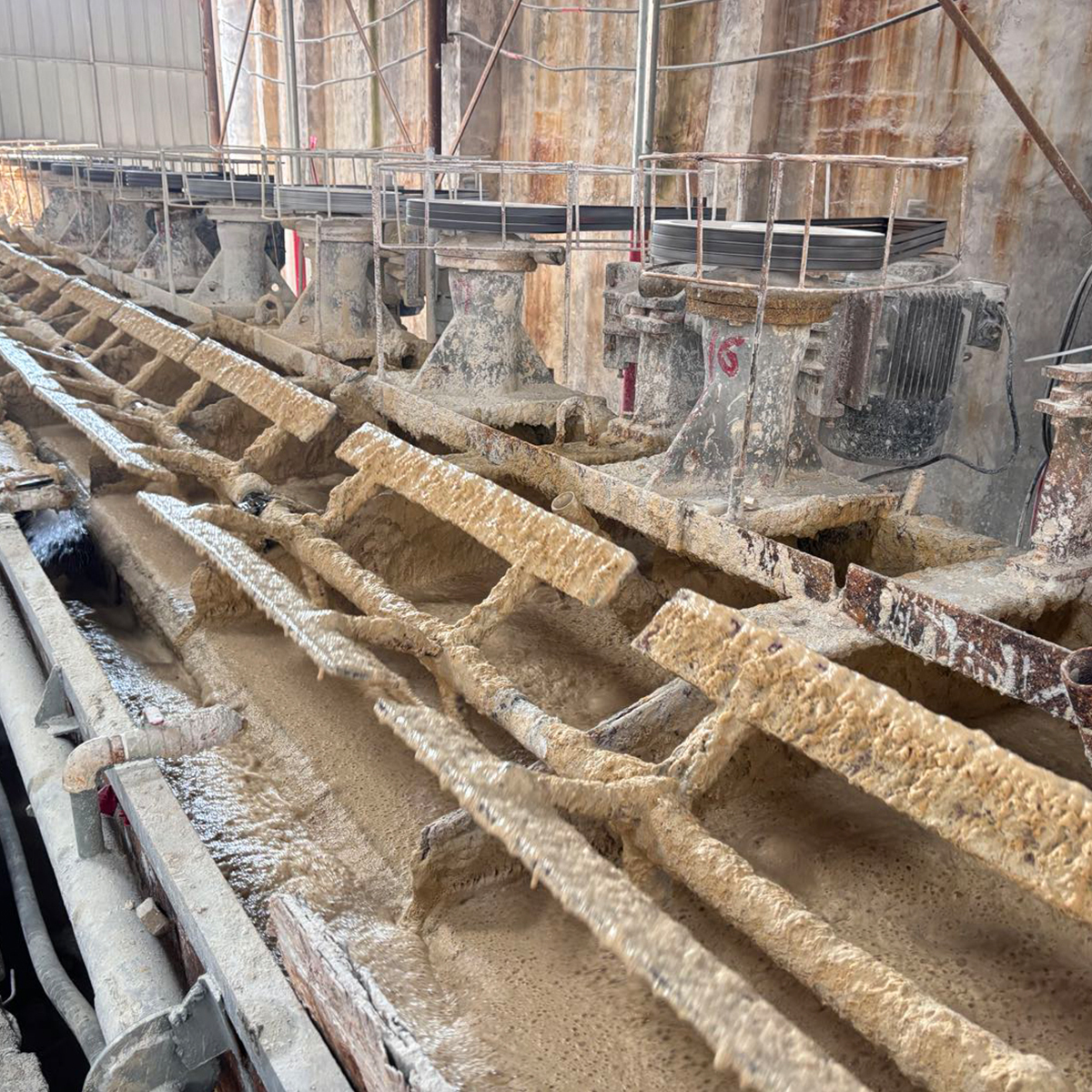

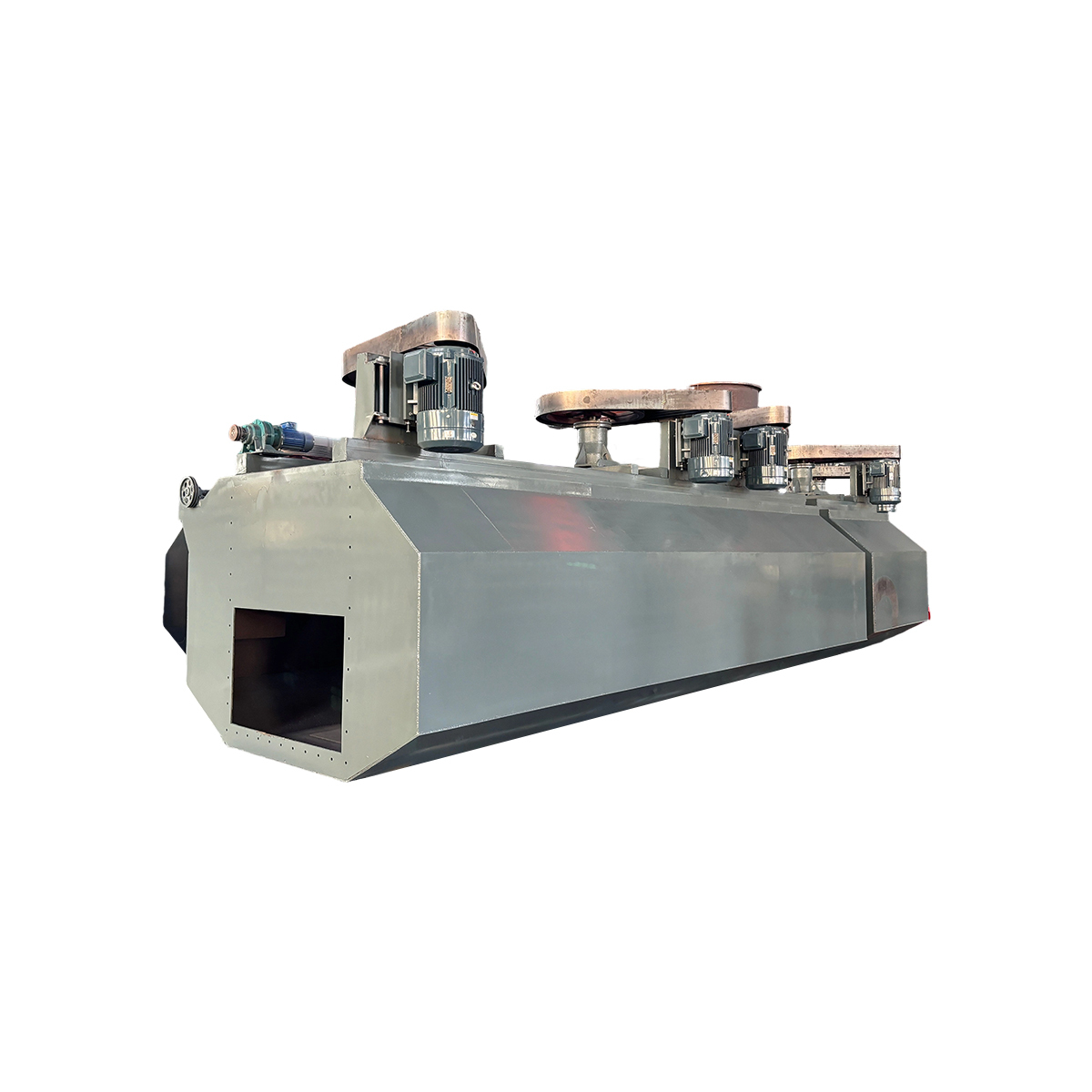

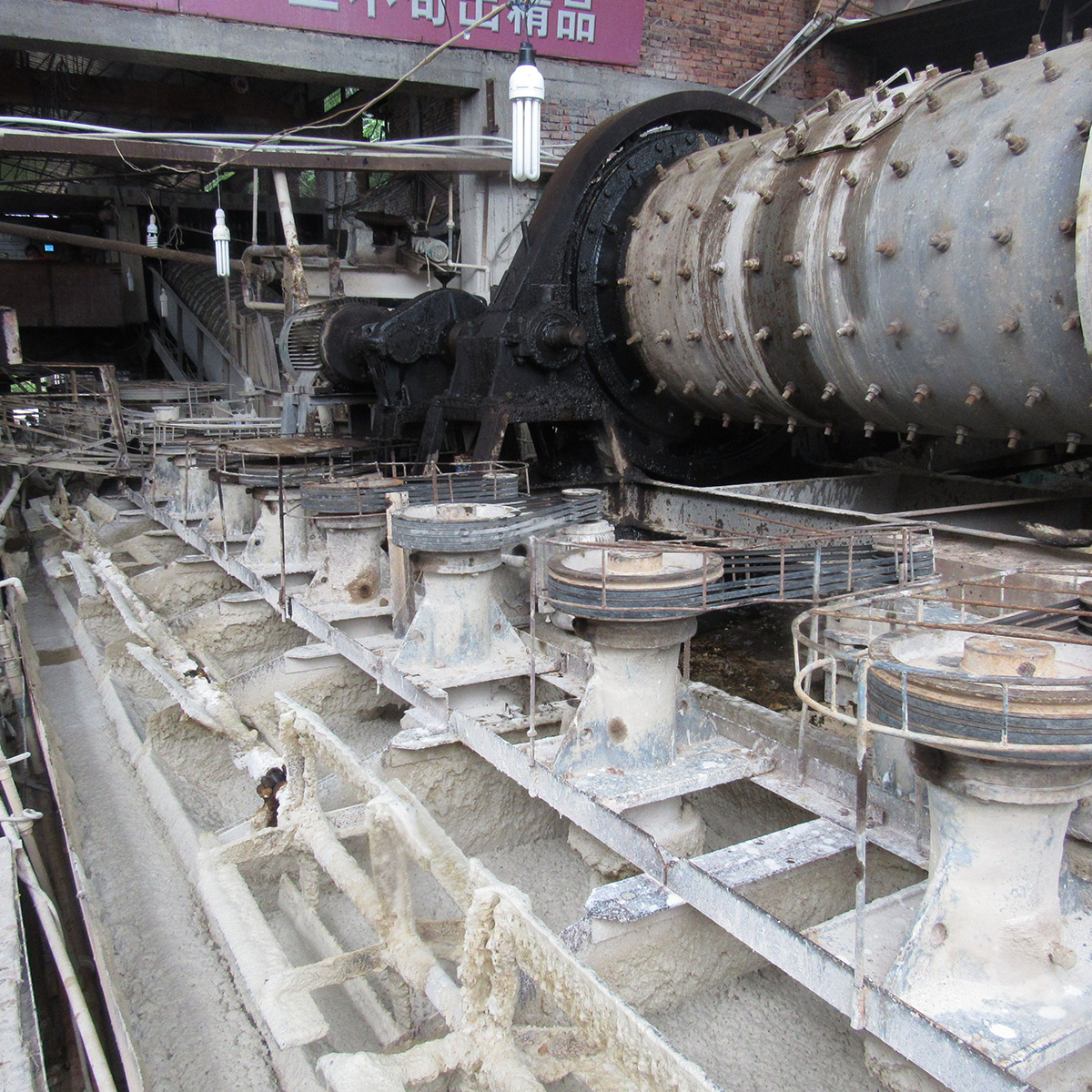

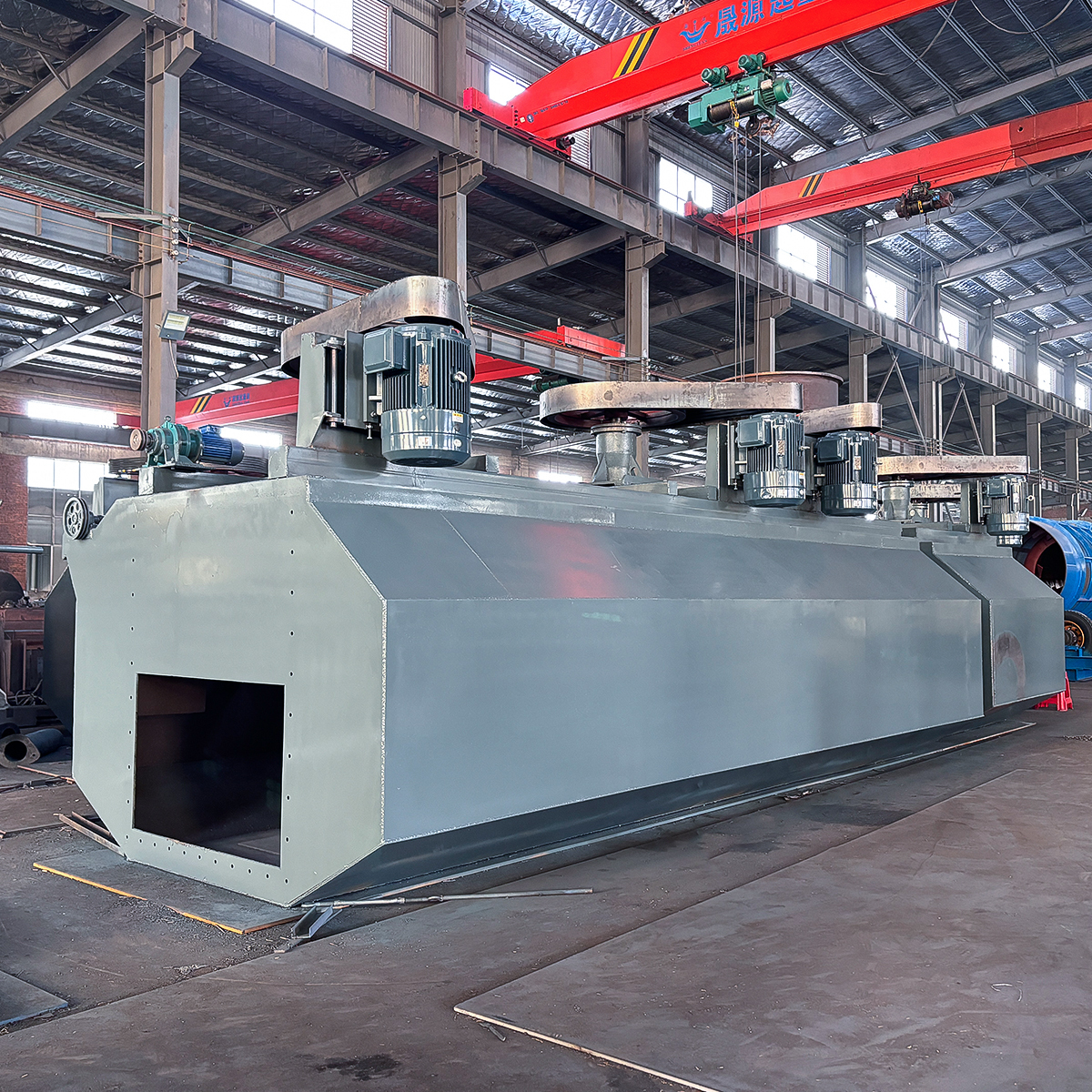

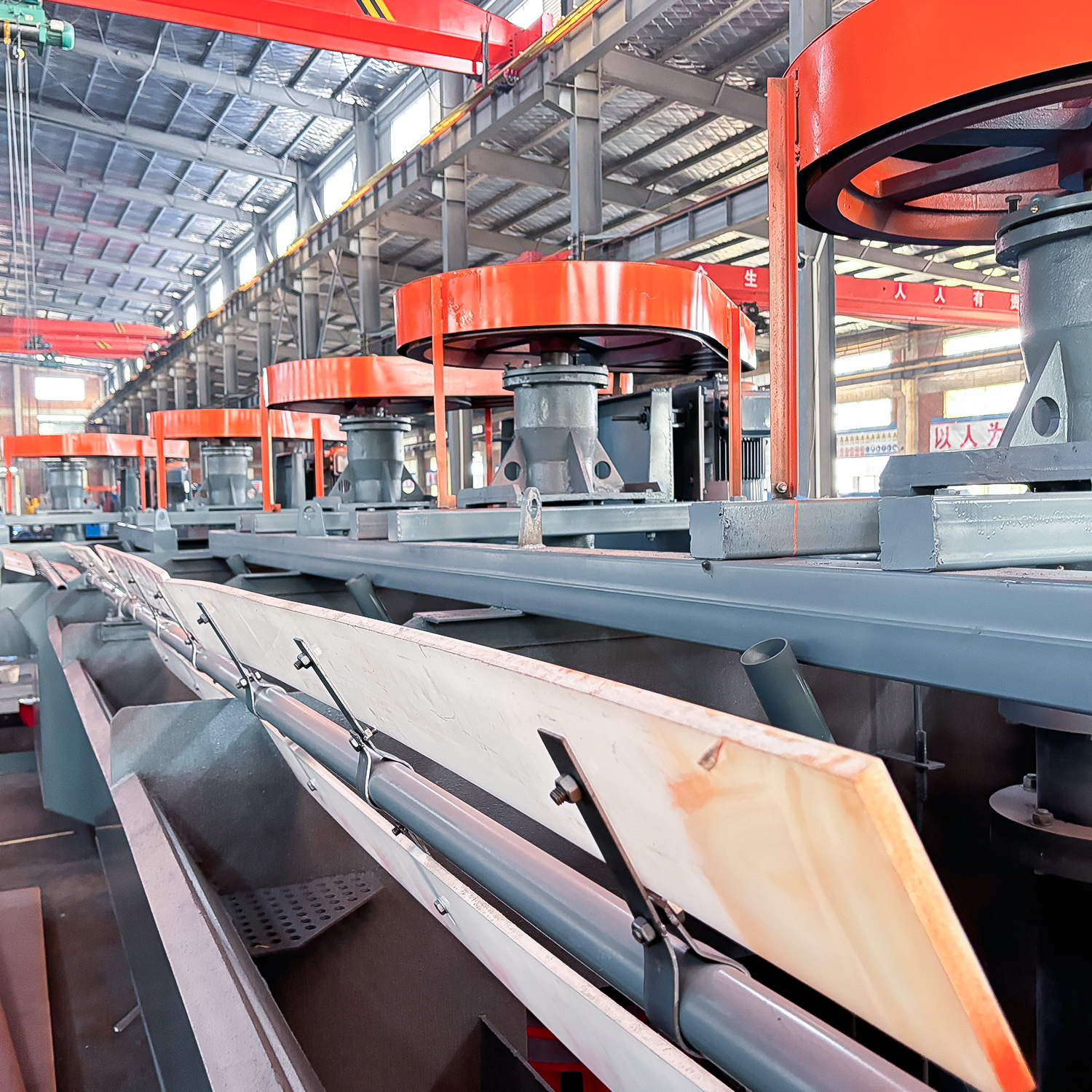

Floatation machine
Discover our advanced flotation machines for ore processing. Ideal for separating copper, gold, zinc, and iron with froth flotation technology.
| Type | Model | Effective Volume (m³) | Capacity (m³/min) | Main Shaft Power (kW) | Main Shaft Speed (r/min) | Scraper Power (kW) | Scraper Speed (r/min) | Cell Size (m) | Weight per Cell (t) |
|---|---|---|---|---|---|---|---|---|---|
| XJK | XJK-0.35 | 0.35 | 0.18–0.4 | 1.5 | 483 | 1.1 | 16 | 0.7×0.7×0.7 | 0.5 |
| XJK-0.62 | 0.62 | 0.3–0.9 | 3.0 | 400 | 1.1 | 16 | 0.90×0.82×0.85 | 1.0 | |
| XJK-1.1 | 1.1 | 0.6–1.6 | 5.5 | 330 | 1.5 | 16 | 1.1×1.1×1.0 | 1.4 | |
| XJK-2.8 | 2.8 | 1.5–3.5 | 11 | 280 | 1.1 | 16 | 1.75×1.6×1.1 | 2.5 | |
| XJK-5.8 | 5.8 | 5–7 | 22 | 240 | 1.1 | 16 | 2.2×2.2×1.2 | 3.6 |
Flotation Machine for Mineral Separation
Table of Contents
Product Overview
The flotation machine is an essential mineral separation equipment widely used in mineral processing plants. This froth flotation machine works by mixing air and reagents with finely ground ore slurry, allowing the target minerals to attach to the bubbles and float to the surface for recovery. Through froth flotation technology, it effectively separates valuable minerals from gangue for enhanced ore concentration.
It is ideal for processing nonferrous metals, ferrous metals, precious metals, and non-metallic minerals. Whether for copper, gold, iron, or fluorite, this mineral flotation equipment offers reliable performance in a range of flotation applications.
Key Features
- High-efficiency flotation performance for fine and micro-fine minerals
- Flexible configuration with XJK, SF, and JJF models for various flotation needs

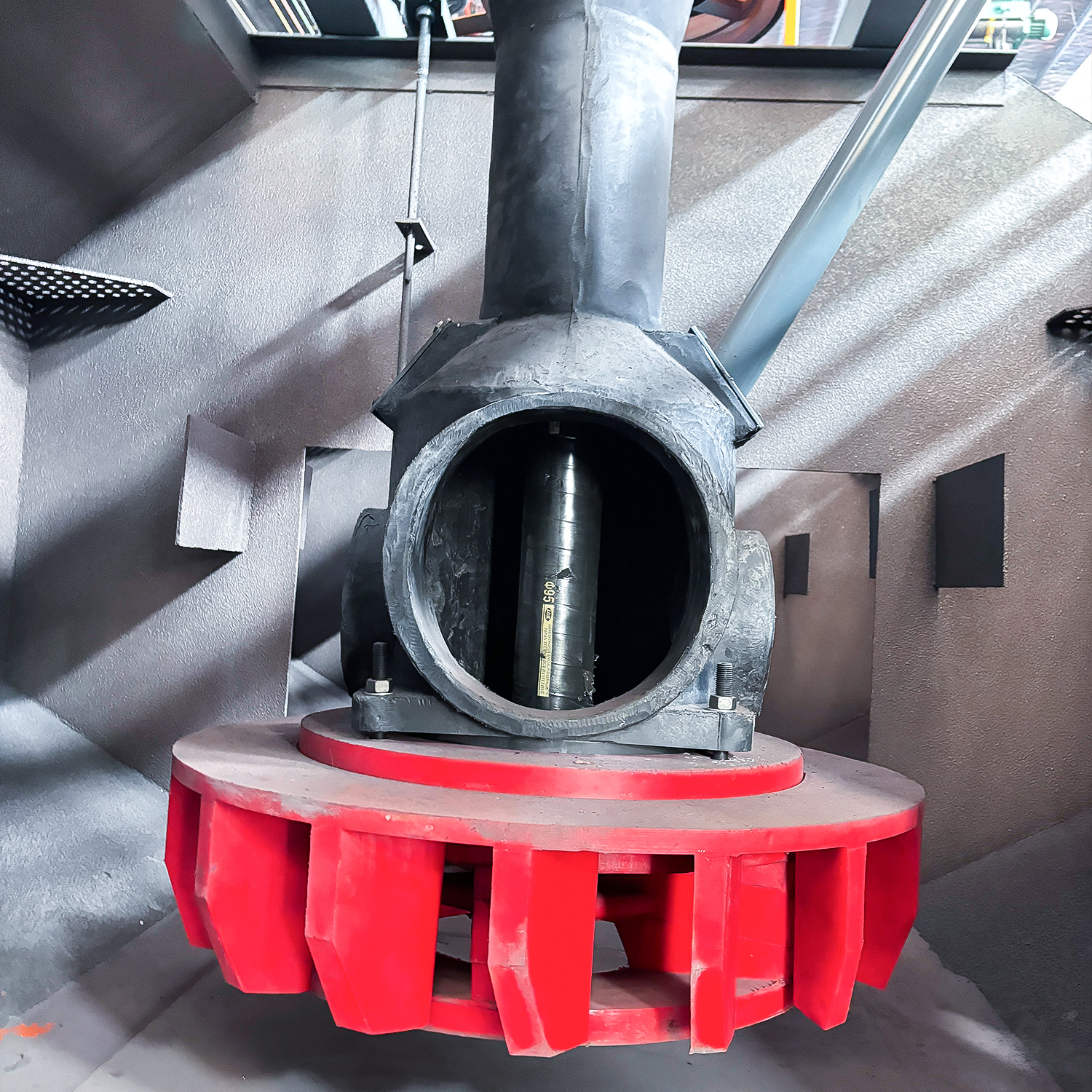

- Advanced mixing and aeration system to ensure optimal mineral recovery
- Suitable for both roughing and scavenging operations
- Robust design for long-term use in mining environments
Technical Specifications
The flotation machine comes in three main types: XJK, SF, and JJF series. Specifications vary depending on model and flotation capacity:
| Type | Model | Effective Volume (m³) | Capacity (m³/min) | Main Shaft Power (kW) | Main Shaft Speed (r/min) | Scraper Power (kW) | Scraper Speed (r/min) | Cell Size (m) | Weight per Cell (t) |
|---|---|---|---|---|---|---|---|---|---|
| XJK | XJK-0.35 | 0.35 | 0.18–0.4 | 1.5 | 483 | 1.1 | 16 | 0.7×0.7×0.7 | 0.5 |
| XJK-0.62 | 0.62 | 0.3–0.9 | 3.0 | 400 | 1.1 | 16 | 0.90×0.82×0.85 | 1.0 | |
| XJK-1.1 | 1.1 | 0.6–1.6 | 5.5 | 330 | 1.5 | 16 | 1.1×1.1×1.0 | 1.4 | |
| XJK-2.8 | 2.8 | 1.5–3.5 | 11 | 280 | 1.1 | 16 | 1.75×1.6×1.1 | 2.5 | |
| XJK-5.8 | 5.8 | 5–7 | 22 | 240 | 1.1 | 16 | 2.2×2.2×1.2 | 3.6 | |
| SF | SF-0.37 | 0.37 | 0.2–0.4 | 1.5 | 386 | 1.1 | 16 | 0.7×0.7×0.75 | 0.5 |
| SF-0.7 | 0.7 | 0.3–0.9 | 3.0 | 400 | 1.1 | 16 | 0.9×0.82×0.95 | 1.0 | |
| SF-1.2 | 1.2 | 0.6–1.6 | 5.5 | 330 | 1.5 | 16 | 1.1×1.1×1.1 | 1.9 | |
| SF-2.8 | 2.8 | 1.5–3.5 | 11 | 268 | 1.5 | 16 | 1.75×1.6×1.15 | 2.6 | |
| SF-4 | 4.0 | 2–4 | 15 | 220 | 1.5 | 16 | 1.85×2.05×1.2 | 2.9 | |
| SF-8 | 8.0 | 4–8 | 30 | 191 | 1.5 | 16 | 2.2×2.9×1.4 | 4.2 | |
| SF-10 | 10.0 | 5–10 | 30 | 191 | 1.5 | 16 | 2.2×2.9×1.7 | 4.5 | |
| SF-20 | 20.0 | 5–20 | 60 | 191 | 1.5 | 16 | 2.85×3.8×2.0 | 9.9 | |
| JJF | JJF-2 | 2.0 | 1–3 | 7.5 | 443 | 1.5 | 16 | 1.4×1.4×1.1 | 1.7 |
| JJF-4 | 4.0 | 2–4 | 11 | 305 | 1.5 | 16 | 1.6×2.15×1.25 | 2.4 | |
| JJF-8 | 8.0 | 4–8 | 22 | 233 | 1.5 | 16 | 2.2×2.9×1.4 | 4.5 | |
| JJF-10 | 10.0 | 5–10 | 22 | 233 | 1.5 | 16 | 2.2×2.9×1.7 | 4.9 | |
| JJF-16 | 16.0 | 5–16 | 30 | 180 | 1.1 | 16 | 2.85×3.8×1.7 | 8.0 | |
| JJF-20 | 20.0 | 5–20 | 37 | 180 | 1.1 | 16 | 2.9×3.8×2.0 | 10.5 |
Application Scenarios
The flotation machine is versatile and widely used in the following mineral processing operations:
Metal Mineral Separation
- Nonferrous Metals: Used for flotation of copper, lead, zinc, nickel, and aluminum ore.
- Ferrous Metals: Applied to flotation of iron ore and manganese ore.
- Precious Metals: Ideal for recovering gold, silver, and platinum group metals.
Non-metallic Mineral Separation
- Fluorite
- Graphite
- Phosphorite
- Talc
Other Applications
- Separation of chemical materials
- Processing of fine and ultra-fine grain particles
After-Sales Service
- Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.
- Support engineers to provide on-site guidance for installation and commissioning;
- 7*24 hours online communication and guidance;
- Product manuals and installation videos are provided;
