Magnetic Separator for Industrial & Mining Applications
Table of Contents
Product Description

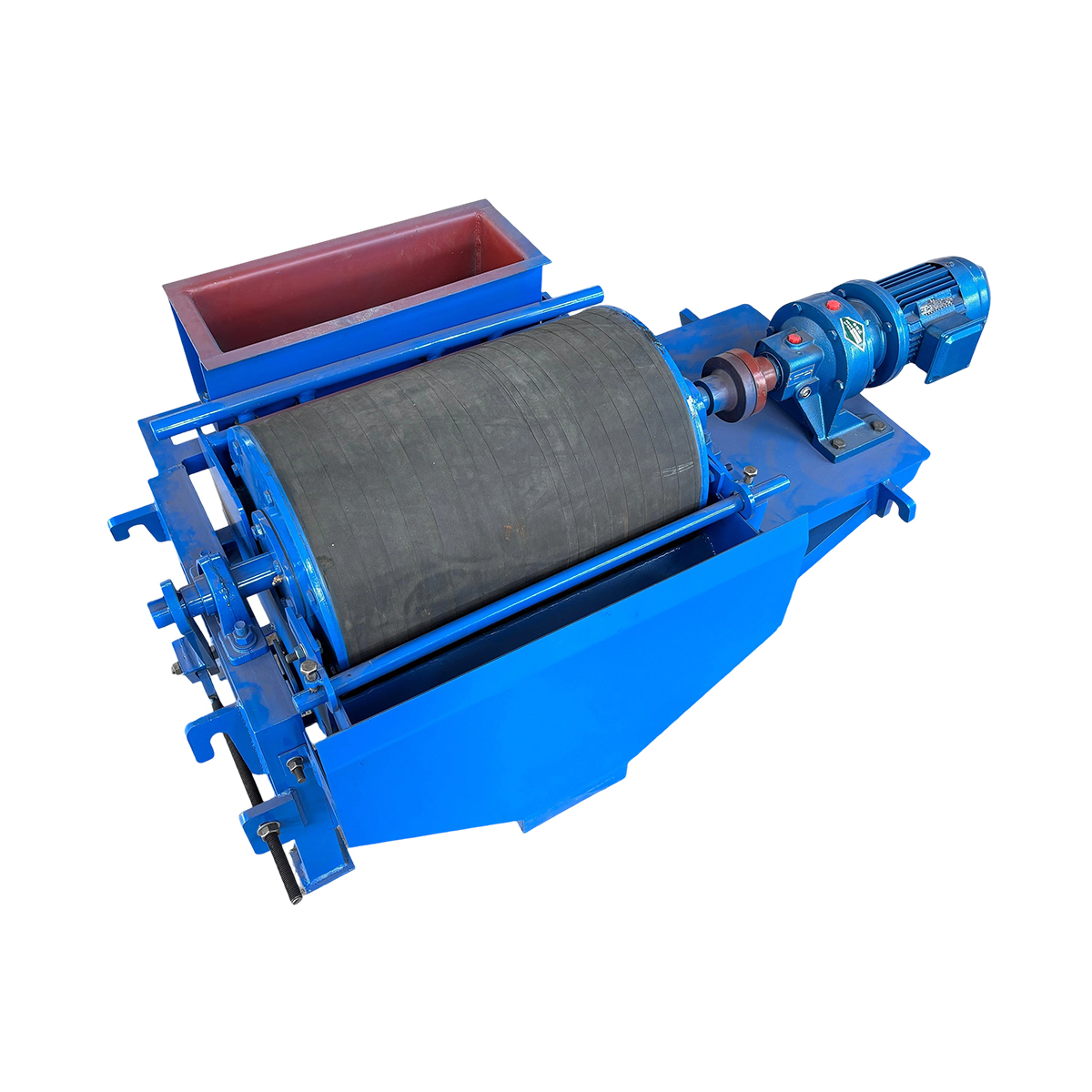

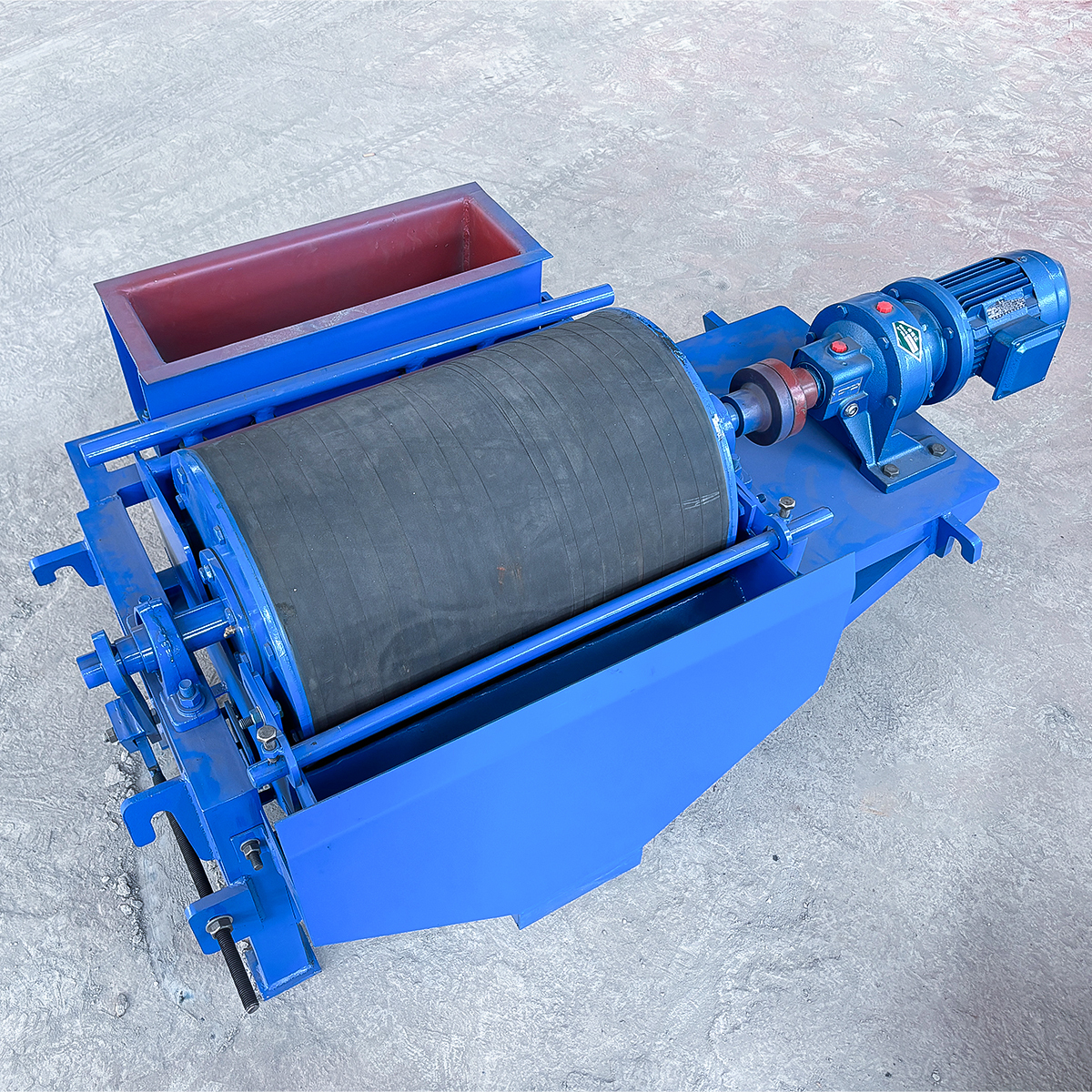

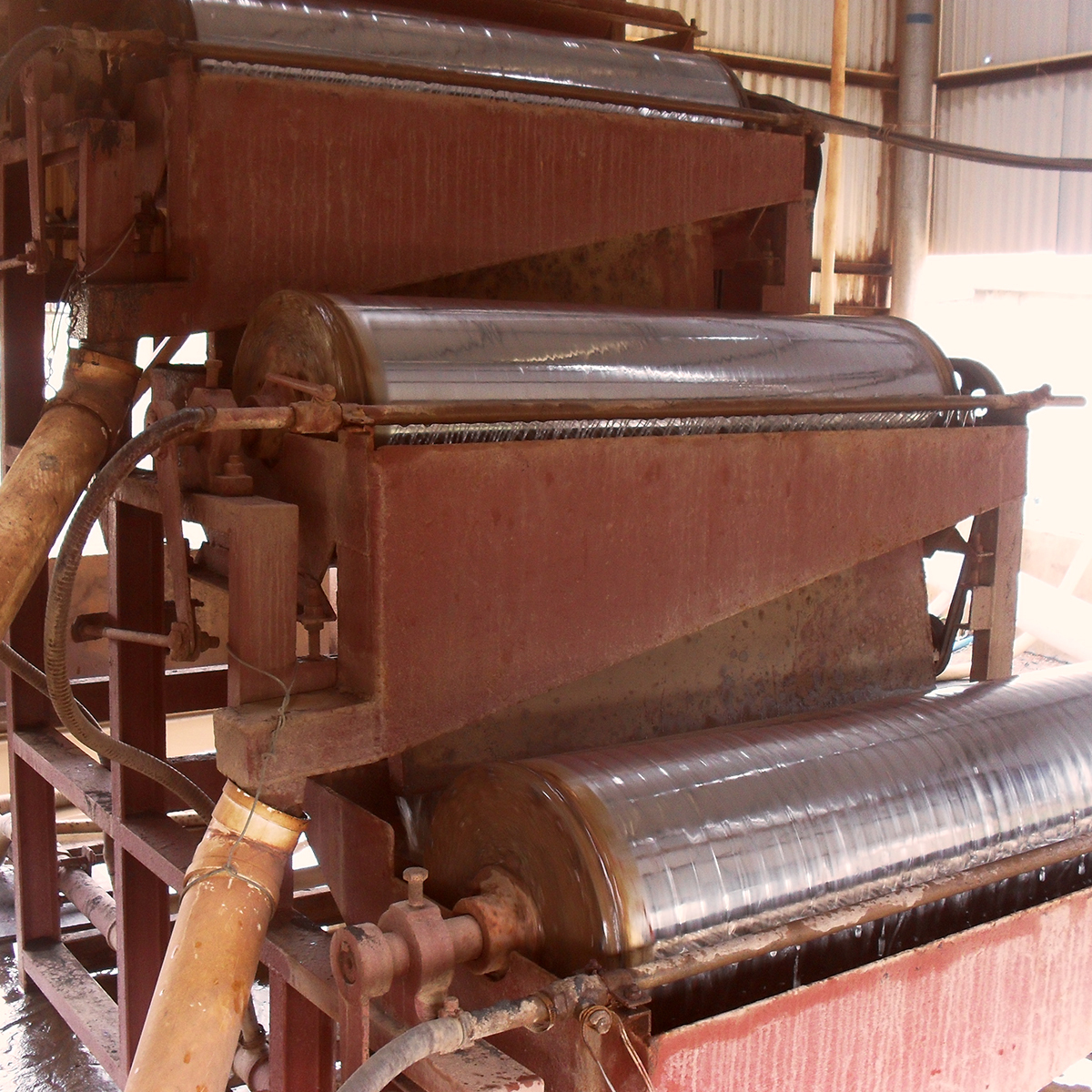

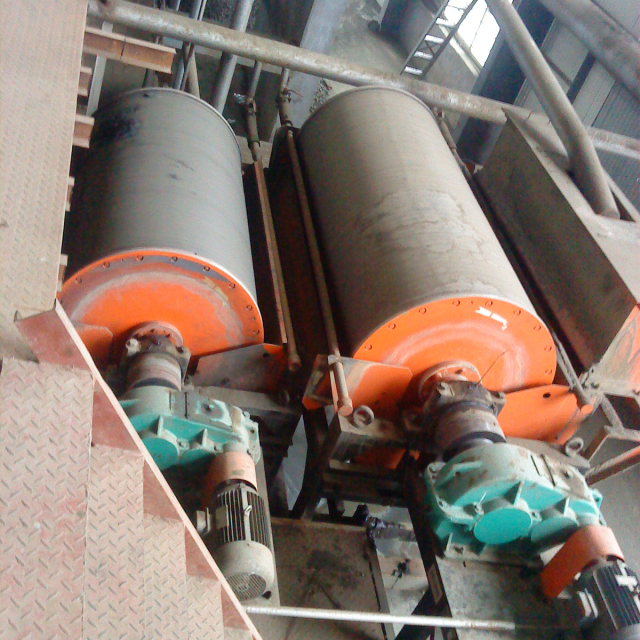

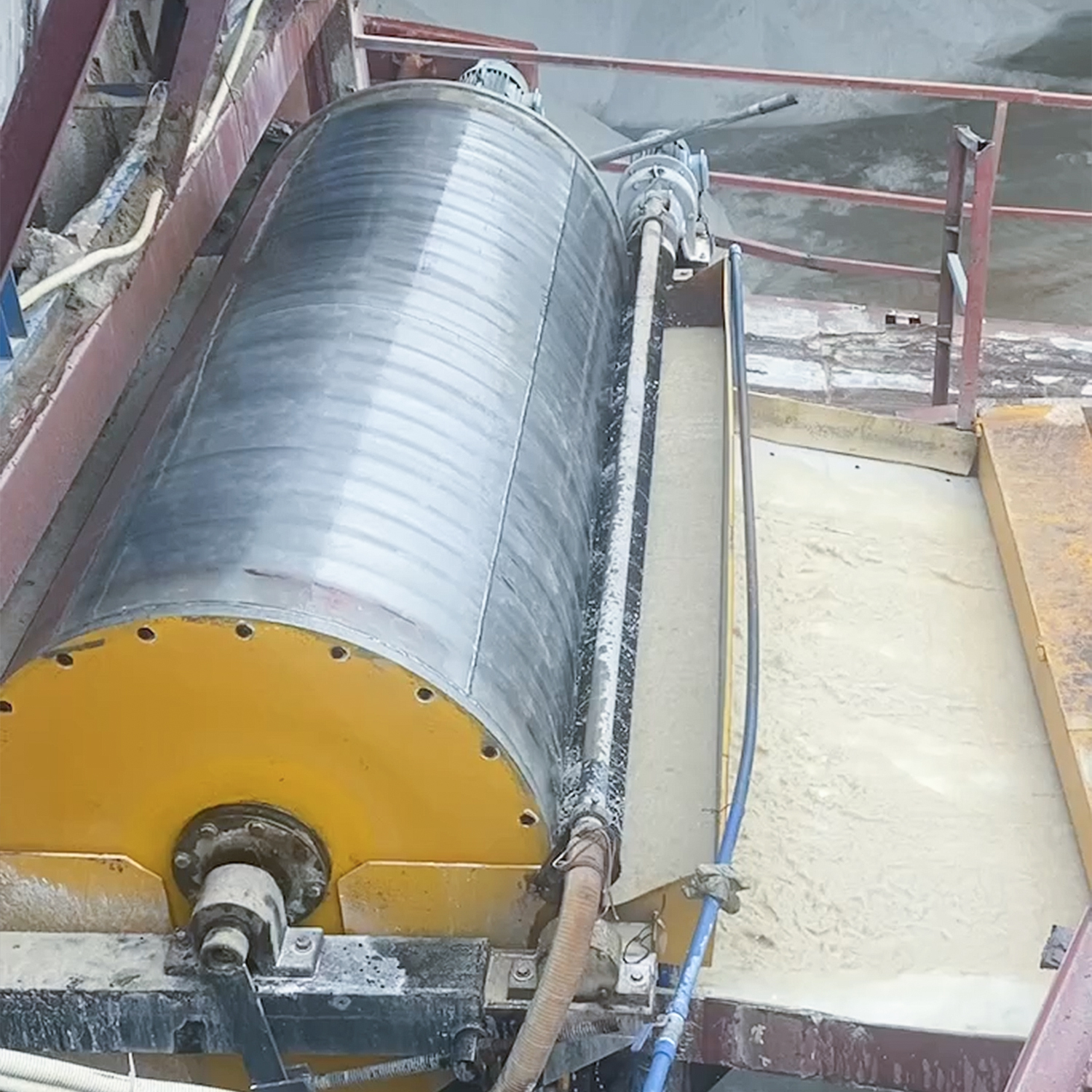

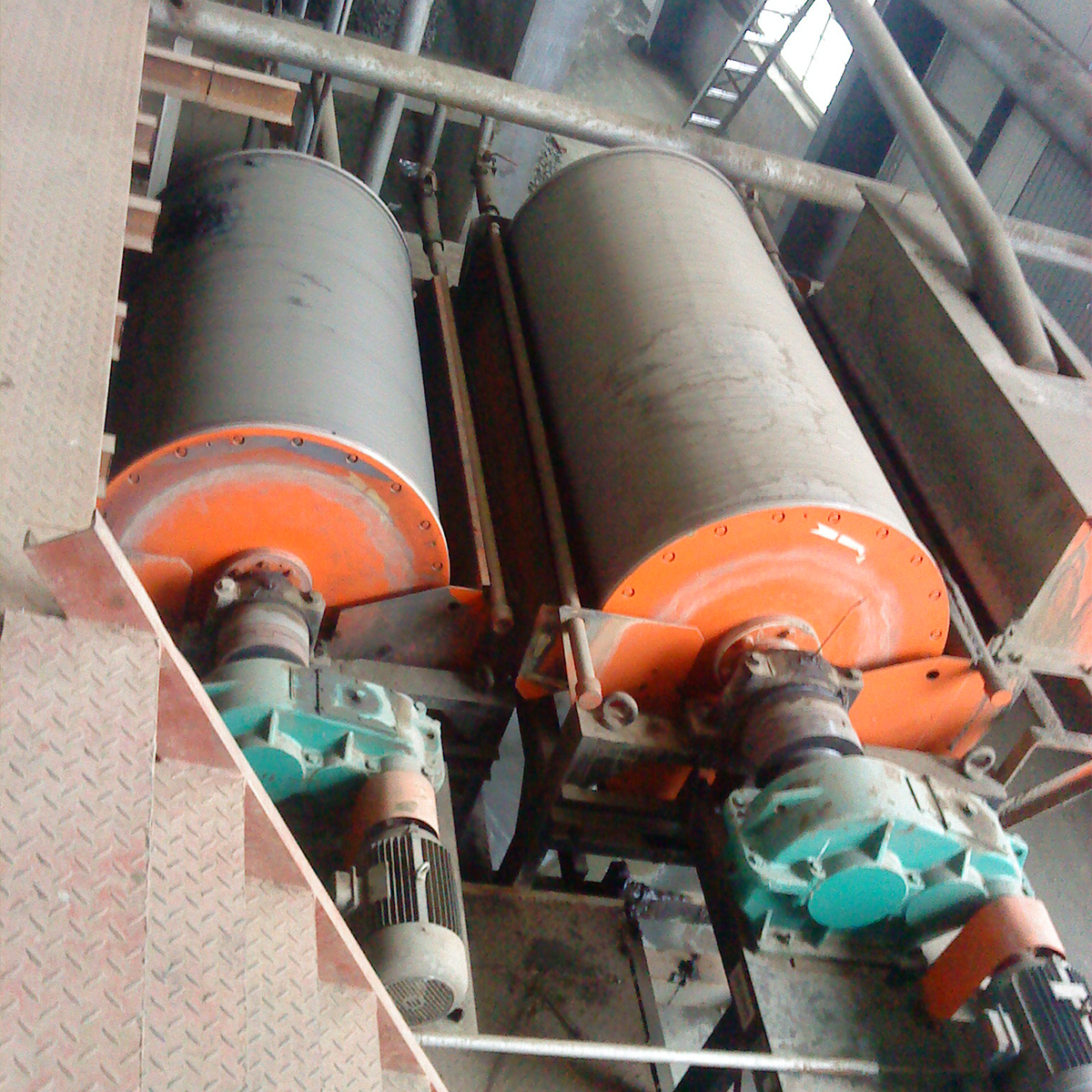

The magnetic separator is a high-performance equipment designed to separate magnetic and non-magnetic substances from mixed materials using powerful magnetic force and mechanical agitation. It is widely used in mining, metal recycling, ceramics, food processing, water treatment, and chemical industries. Based on the operational mode, the magnetic separator is divided into two major types: wet magnetic separator and dry magnetic separator. The wet magnetic separator is especially suitable for separating materials in slurry conditions, enhancing mineral recovery rate and purity.
Product Features
- High magnetic intensity and large handling capacity
- Sturdy construction for long-lasting operation in harsh environments
- Available in various drum sizes to suit industrial demands
- Energy-efficient motor with low operating cost
- Effective separation of fine and coarse magnetic particles
Technical Parameters
| Model | Cylinder Diameter (mm) | Cylinder Length (mm) | Capacity (m³/min) | Power (kW) | Rotation Speed (r/min) |
|---|---|---|---|---|---|
| CTS-69 / CTN-69 / CTB-69 | 600 | 900 | 8–15 | 2.2 | 40 |
| CTS-612 / CTN-612 / CTB-612 | 600 | 1200 | 10–20 | 2.2 | 40 |
| CTS-618 / CTN-618 / CTB-618 | 600 | 1800 | 15–30 | 3 | 40 |
| CTS-712 / CTN-712 / CTB-712 | 700 | 1200 | 15–30 | 3 | 35 |
| CTS-918 / CTN-918 / CTB-918 | 900 | 1800 | 25–55 | 4 | 28 |
| CTS-1024 / CTN-1024 / CTB-1024 | 1000 | 2400 | 52–100 | 5.5 | 22 |
| CTS-1530 / CTN-1530 / CTB-1530 | 1500 | 3000 | 90–170 | 11 | 14 |
| CTS-1540 / CTN-1540 / CTB-1540 | 1500 | 4000 | 115–220 | 11 | 14 |
Application Scenarios

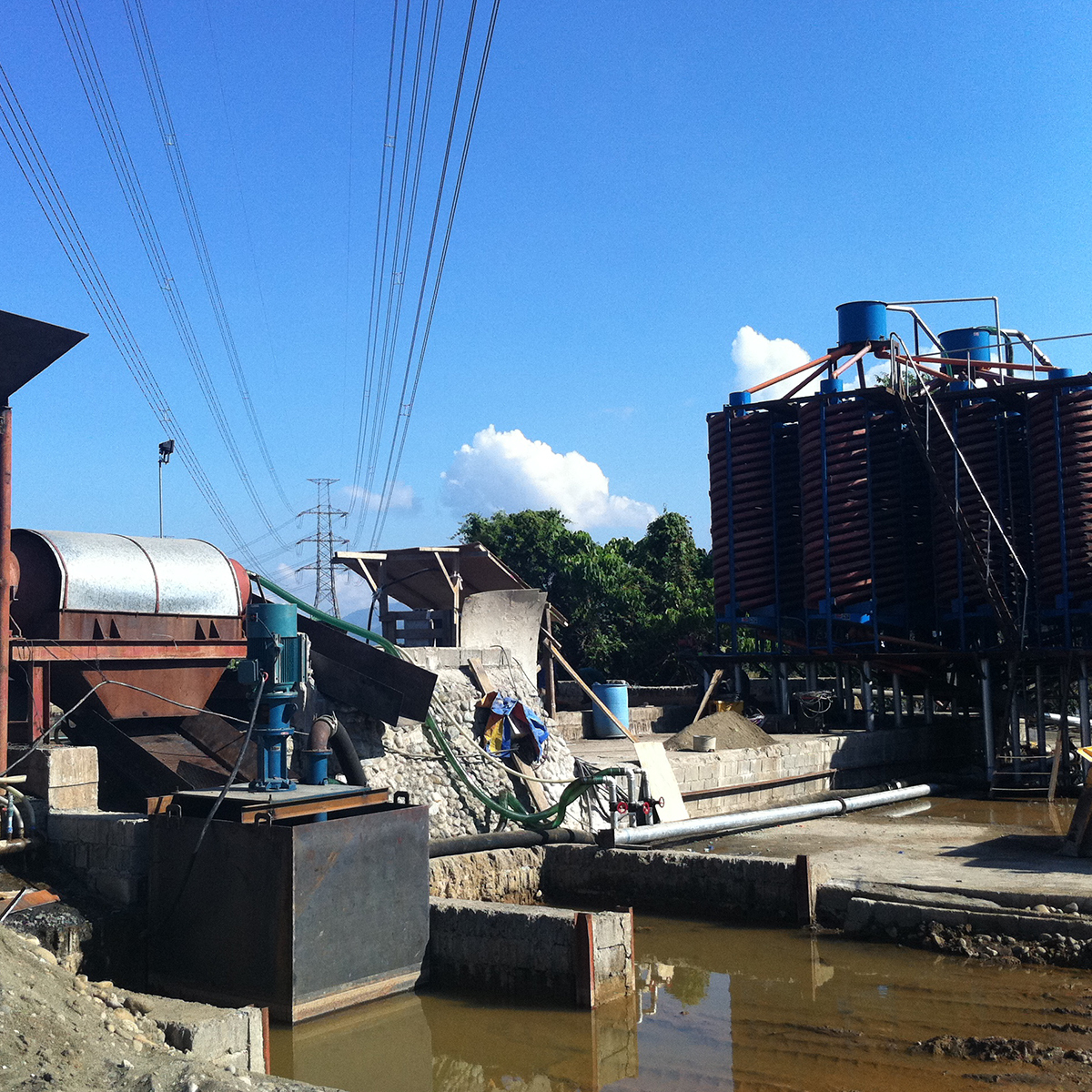

1. Mining Industry

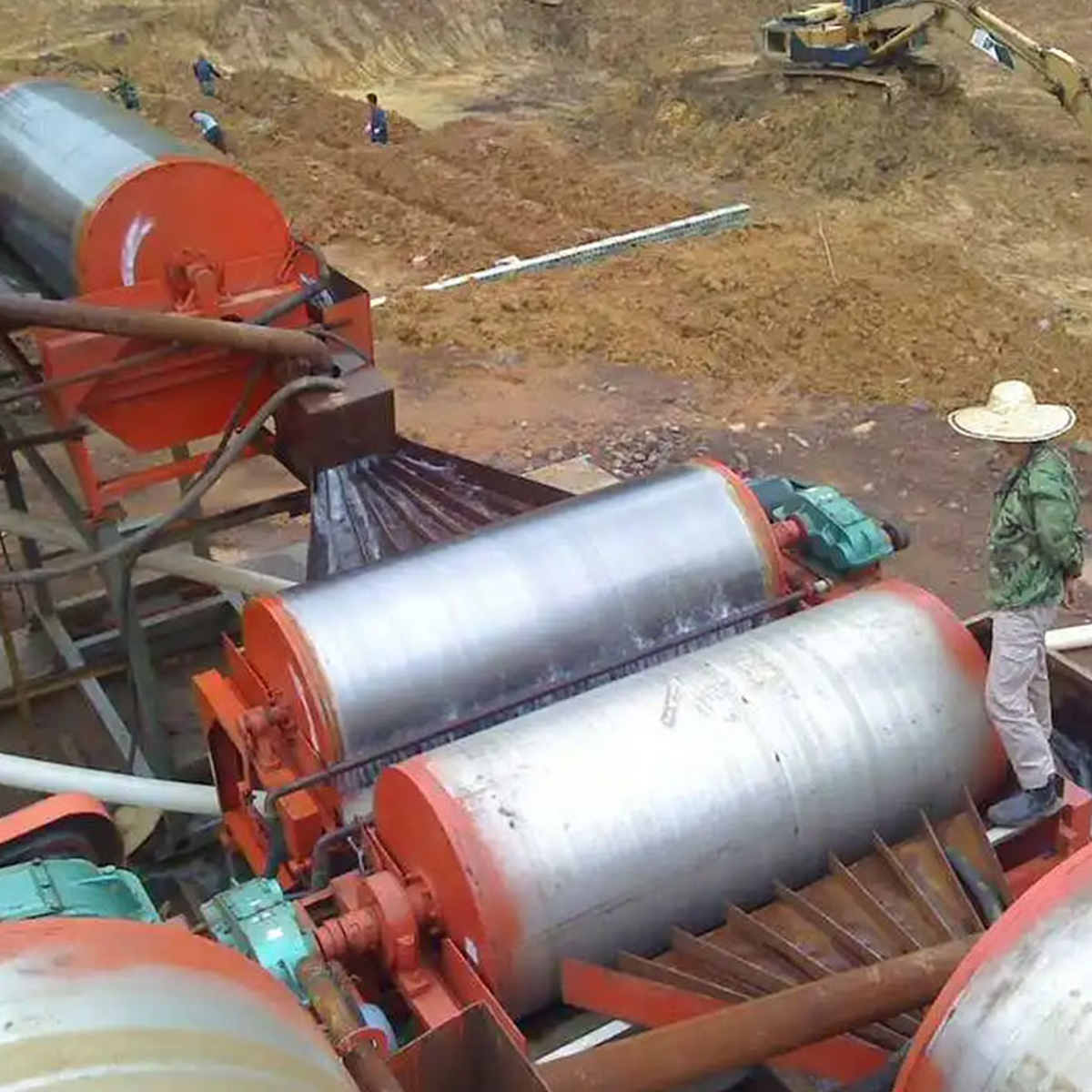

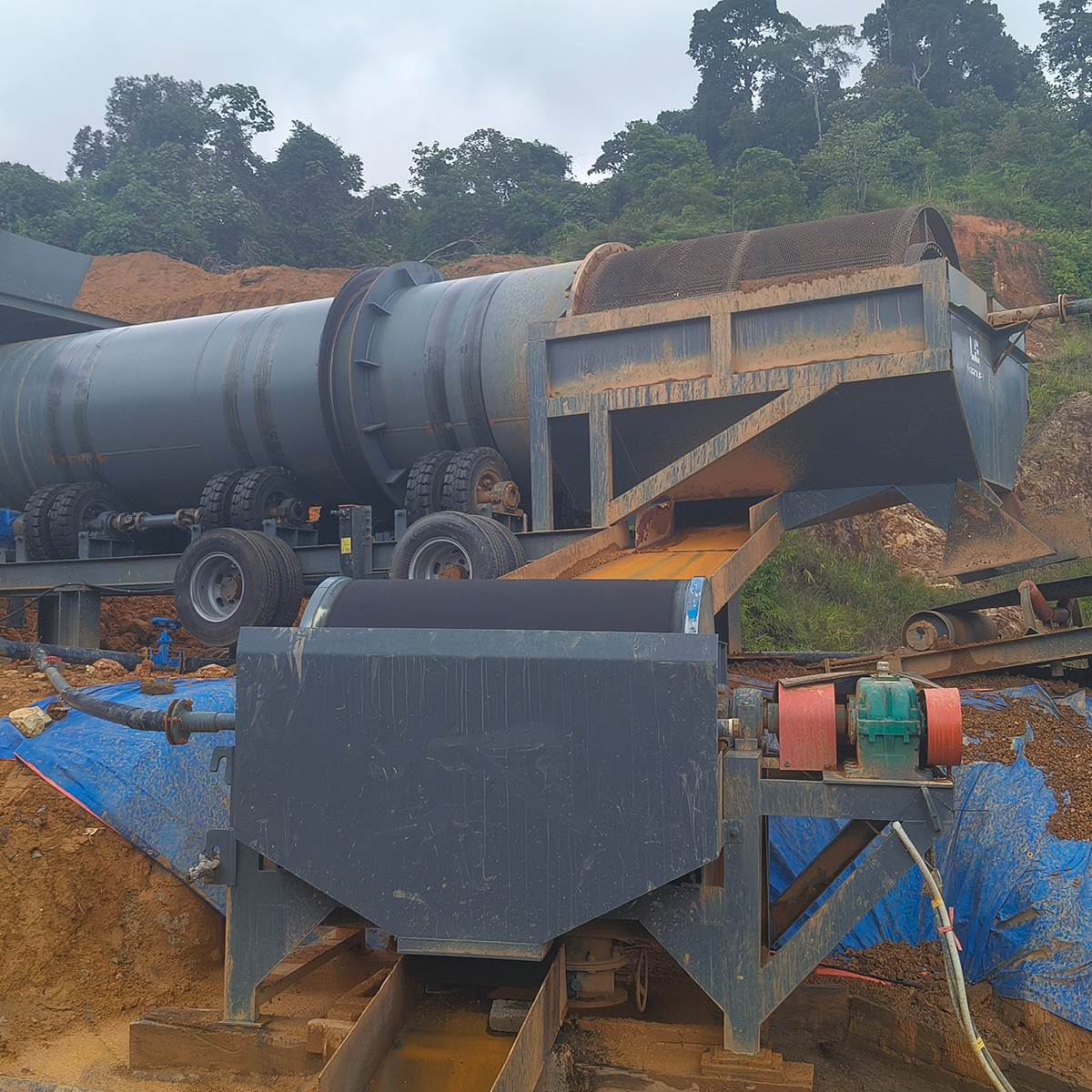

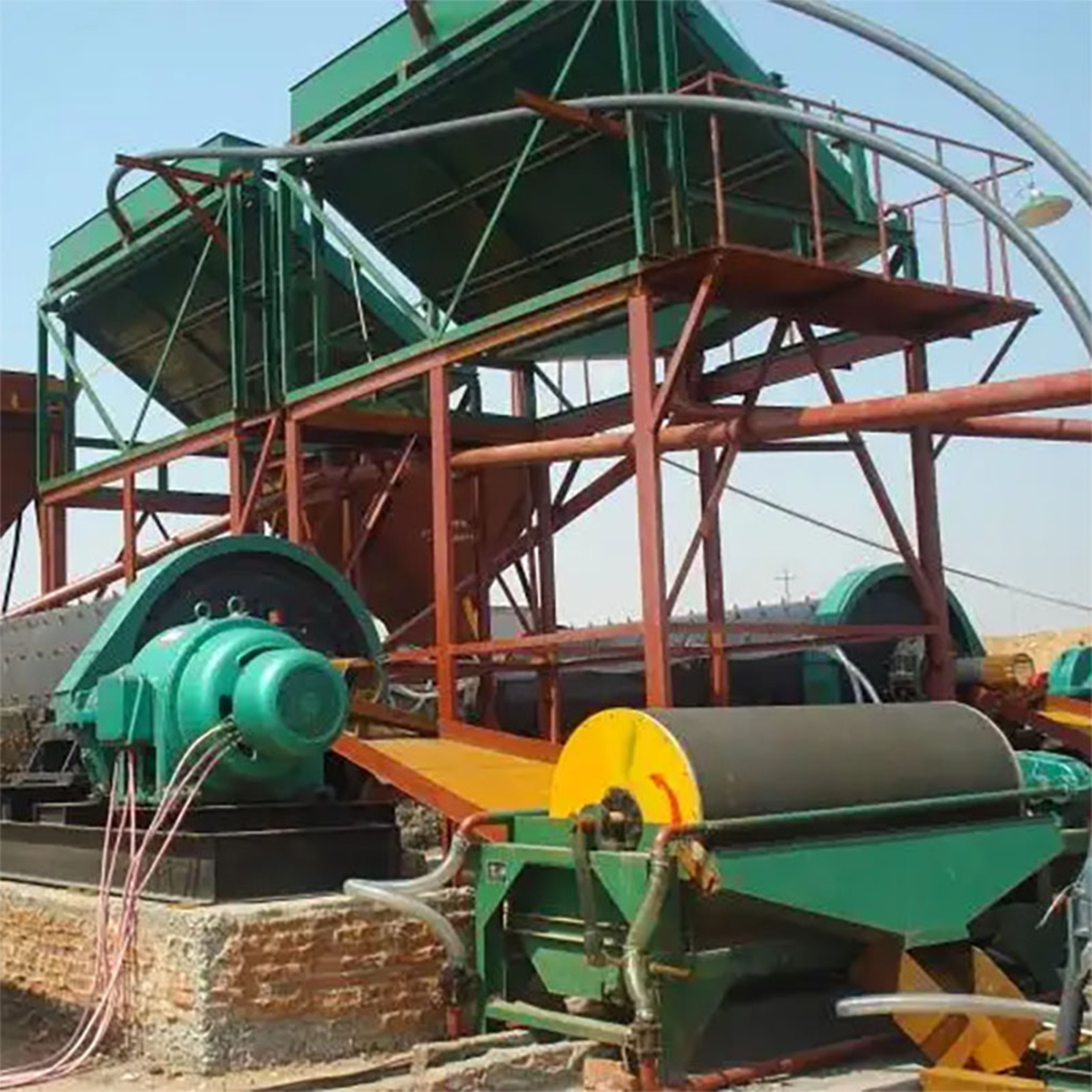

- Iron Ore Processing: Efficient magnetic separator for iron ore purification, improving recovery and grade of magnetite and pyrrhotite.
- Manganese Ore Separation: Enhance the concentration of manganese ore with high-efficiency magnetic separation.
- Rare Minerals: Effective for wolframite, ilmenite, kaolin, and rare earth ore separation.
- Tailings Recovery: Reclaim valuable magnetic particles from tailings and reduce environmental impact.
2. Metal & Resource Recycling
- Metal Waste Recovery: Powerful magnetic separator for scrap metal recycling, ideal for separating iron, nickel, and other magnetic metals.
- Industrial Waste Processing: Extract valuable metals from complex industrial waste streams, reducing disposal costs.
3. Other Industrial Applications
- Timber Industry: Remove nails and ferrous particles from timber prior to processing.
- Chemical & Food Industry: Ensure material purity by removing iron impurities using a magnetic separator for food and chemical materials.
- Water Treatment: Remove rust and suspended ferrous particles to improve water quality.
- Coal Processing: Use in magnetic separator for coal cleaning to enhance combustion efficiency.
Packing & Transportation
All magnetic separators are packed in reinforced export-grade wooden crates with anti-rust film wrapping. Units are secured with shock-proof materials for long-distance ocean freight or truck transport.
After-Sales Service
- Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.

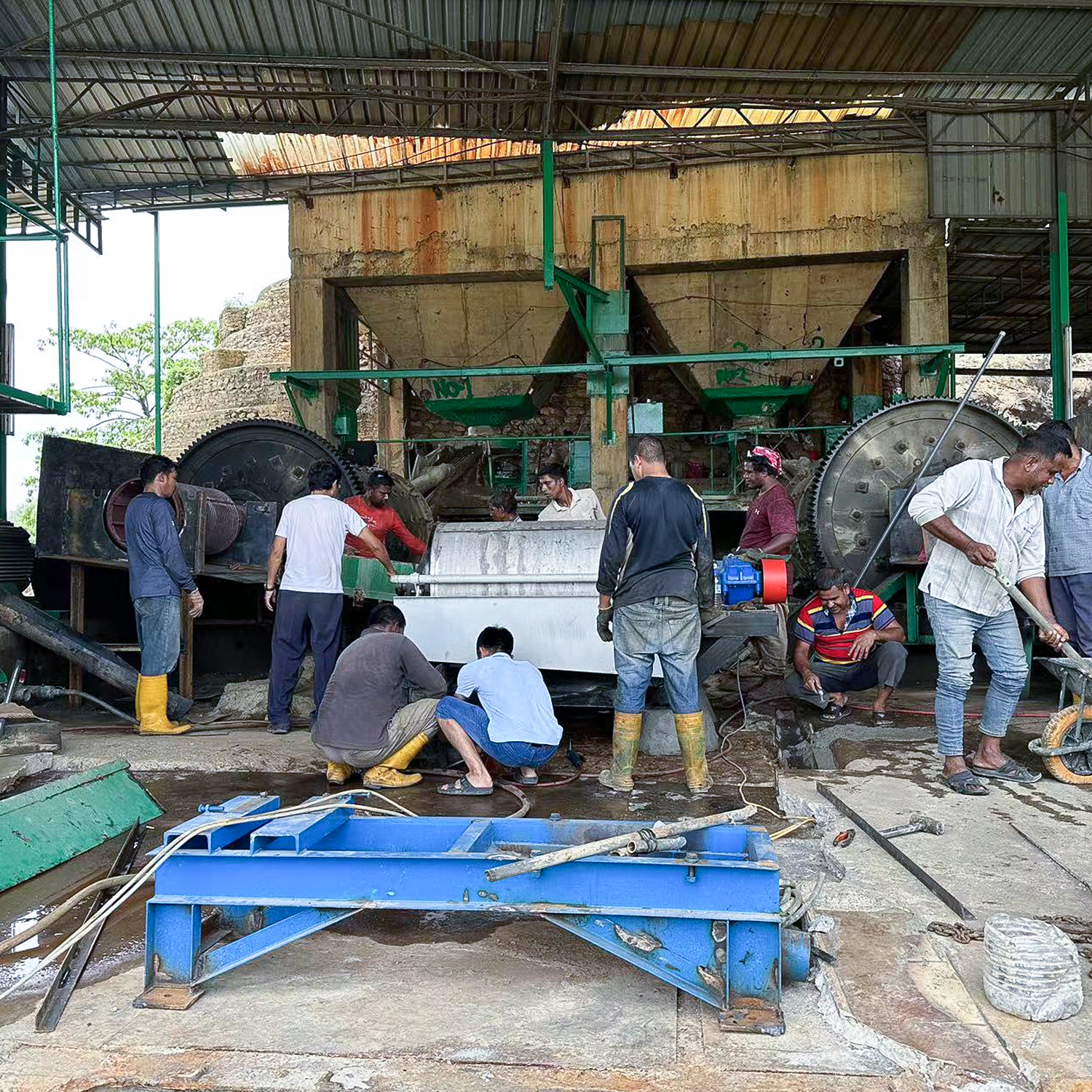

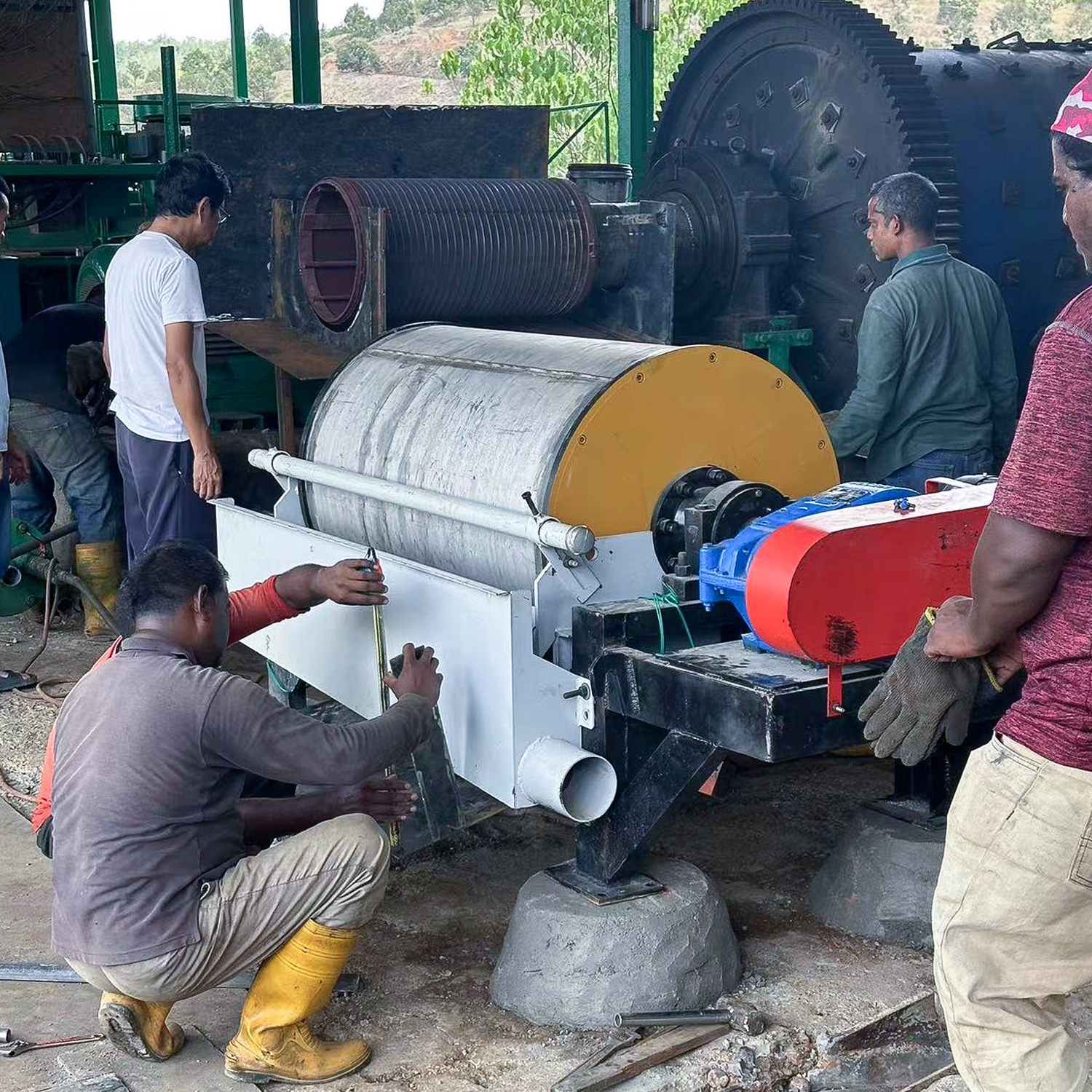

- Support engineers to provide on-site guidance for installation and commissioning;
- 7*24 hours online communication and guidance;
- Product manuals and installation videos are provided;
