In the non-ferrous metals industry, separating tungsten-tin co-deposits is widely recognized as a massive technical headache. Tungsten and tin are practically joined at the hip in the ground; finding them alone is a rare stroke of luck. Because they’re so tightly bound, operations are usually dealing with low-grade feed and a nightmare of impurities. Mess up your process selection, and you’ll end up with tungsten bleeding into your tin concentrate and vice versa. That’s a fast track to bleeding cash. Honestly, it’s the main reason so many operations miss their recovery targets.
This article breaks down the entire tungsten-tin beneficiation flowsheet. We’ll cover how to tackle wolframite-tin ores and scheelite processing, step by step. From upfront prep, desulfurization, and gravity concentration, all the way to precision separation, slime recovery, and final product finishing, we’ve got you covered. We’ll also tell you exactly which process fits which ore, so even the greenhorns on the floor can wrap their heads around it and get it right.
Most tungsten-tin ores are co-deposits. You’re mainly dealing with three valuable minerals: wolframite, scheelite, and cassiterite. But they’re swimming in a sea of gangue—quartz, mica, fluorite—and contaminated with sulfides like pyrite and chalcopyrite.
Here’s the kicker: tungsten and tin are both heavy hitters. Their densities are practically identical, so standard separation methods can’t easily tell them apart. But they have wildly different magnetic, floatability, and electrical properties. That’s your golden ticket. Every modern, efficient flowsheet is built around exploiting these differences.
When small-to-mid-sized mines are missing their recovery targets, it usually boils down to three things:
The playbook is simple: Play to your strengths, classify by size, and separate in stages.
Use gravity to separate the heavy tungsten and tin from the light gangue. Use magnetism to split wolframite from cassiterite. Use flotation to separate scheelite from cassiterite. And use electrostatic separation for dry, fine-tuning. Combine these, and you’ve got a winning process.
The industry-standard flow is pretty straightforward:
Crushing → Grinding & Classification → Pre-concentration (Waste Rejection) → Sulfide Flotation (Desulfurization) → Gravity Concentration (Roughing) → Precision Tungsten-Tin Separation → Slime Recovery → Dewatering & Drying → Final Product & Tailings Management.
Every single step has a job. You need the whole team working together to get a clean separation.
If your prep work is garbage, no amount of fancy downstream processing will save your recovery rate. The goal here is liberation, minimizing losses, and cutting costs.

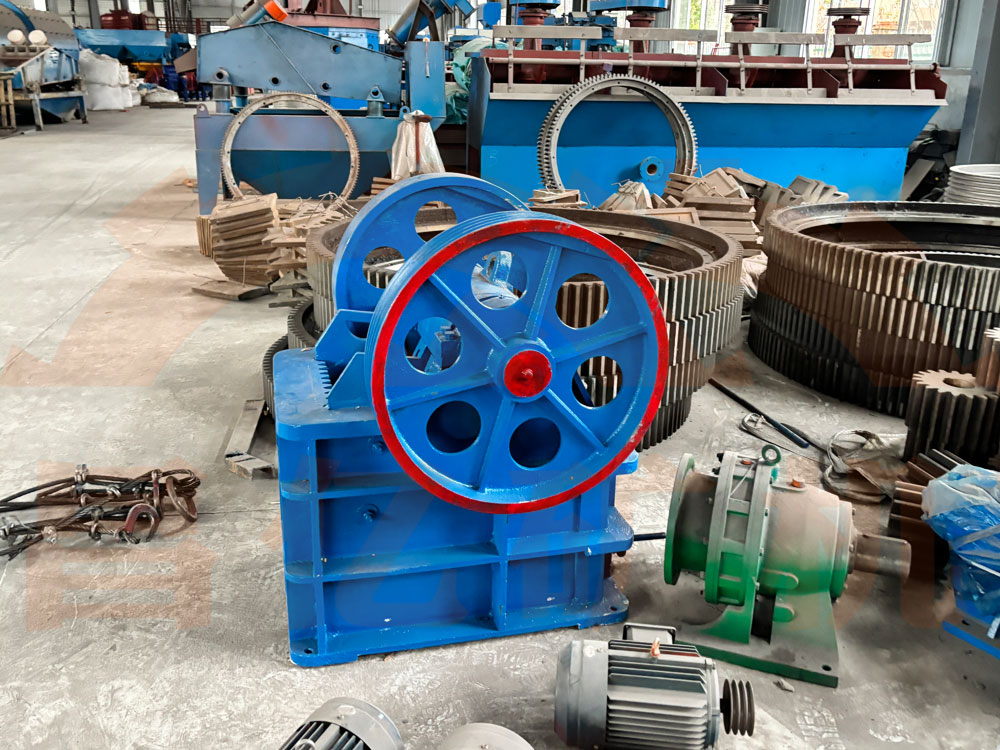

Run-of-mine ore is huge and dirty. You need to stage-crush it. Hit it with a jaw crusher to get it down to 50-80mm, then run it through a cone crusher to hit 10-25mm. Stage crushing keeps your energy costs down and gives you a uniform feed for the grinding circuit.

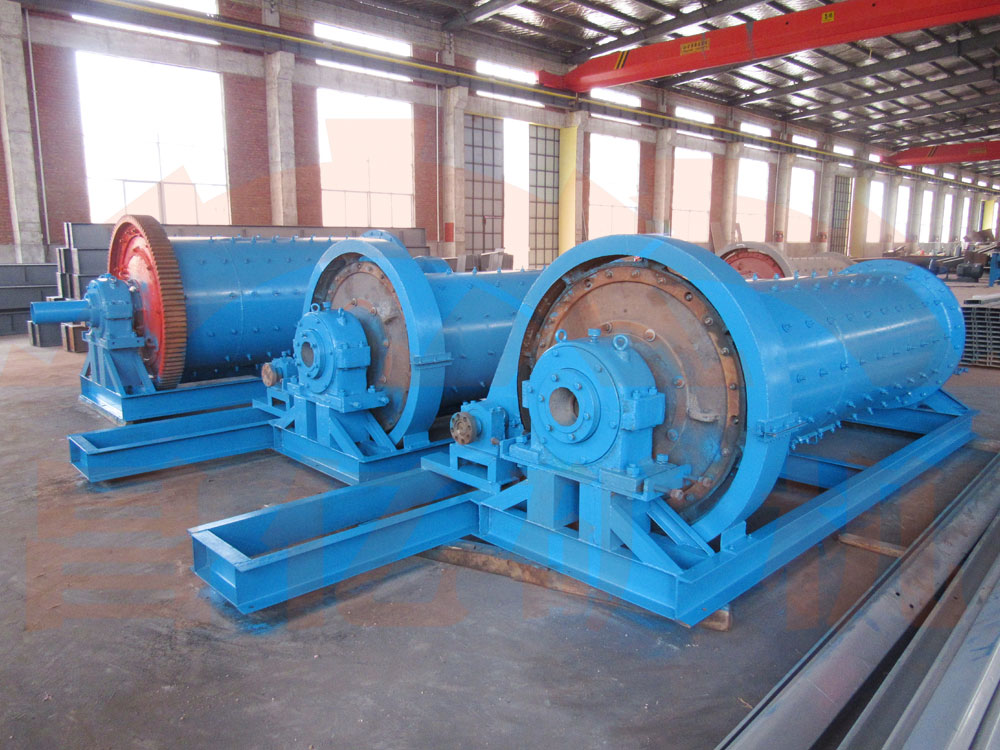

Grinding is about liberating the valuable minerals, but do not over-grind. Most plants use " a rod mill & a ball mill " in closed circuit with hydrocyclones or spiral classifiers. Keep your coarse grind at 0.5-2mm and your fine grind at 0.074-0.2mm. And for the love of mining, screen out and bypass that -20μm slime fraction before it hits the main circuit. That’s how you stop bleeding cassiterite.
Most tungsten-tin feed grades are pathetic—barely 0.1% to 0.5%. Why grind worthless rock? Use optical sorters, heavy media separation, or dry magnetic separators to reject low-grade waste before it hits the mill. This boosts your head grade and slashes your operating costs. It’s a no-brainer for boosting margins.
Sulfides like pyrite, galena, and sphalerite are heavy. Gravity separation can’t tell them apart from tungsten and tin. If you don’t float them off first, they’ll ride right into your rough concentrate, tanking your grade and messing up your downstream separation. Desulfurization isn't optional; it's mandatory.

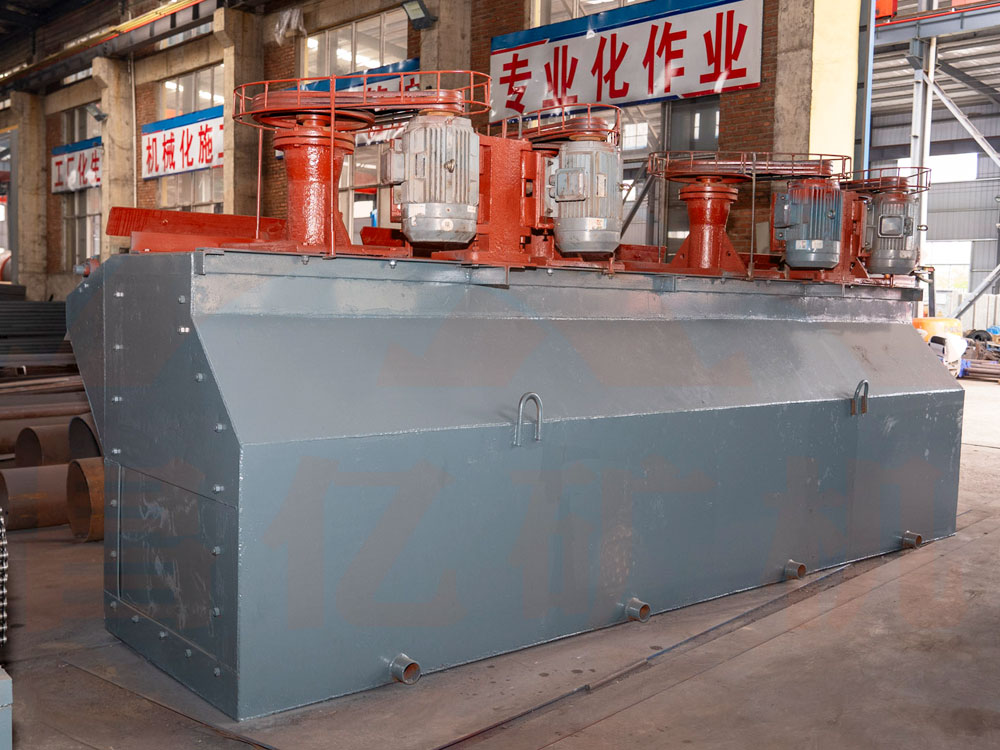

It’s simple and reliable. Add xanthate collectors and frothers, adjust the pH, and float the sulfides. Collect them as a byproduct sulfur concentrate (hey, extra revenue!), and send the clean tailings to the gravity circuit. Your downstream separation will be infinitely cleaner.
Gravity separation is the most cost-effective and widely used method for tungsten-tin. It relies purely on density differences.
It works for coarse, medium, and fine particles, especially for high-tonnage operations. It’s cheap, clean, and reliable. The only catch? It sucks at recovering ultra-fine slimes.
Don't just use one machine; build a circuit:
Gravity only gets you a mixed tungsten-tin concentrate. To get pure, marketable products, you need to split them. And the method depends entirely on what kind of tungsten you’ve got.

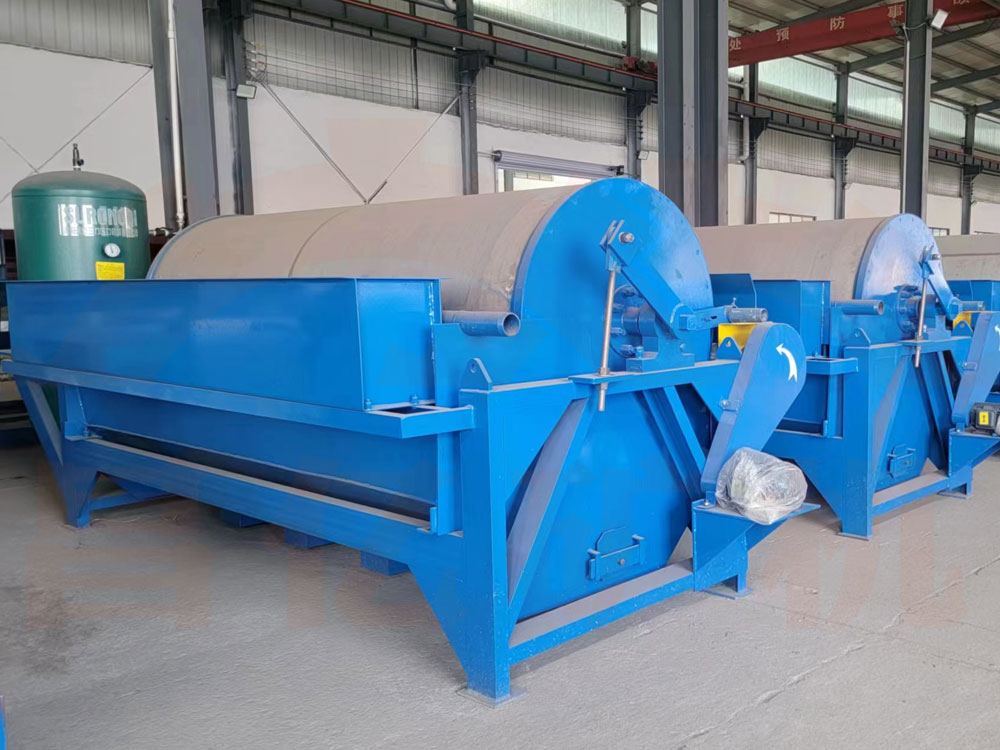

For wolframite-cassiterite ores, high-intensity magnetic separation is your best bet. Wolframite is weakly magnetic; cassiterite isn't. Run it through a wet high-intensity magnetic separator at 2.0-3.0 Tesla. The magnetic fraction is your wolframite concentrate; the non-magnetic is your cassiterite. Clean, simple, and highly efficient.
Scheelite and cassiterite are both non-magnetic, so magnets won't help you. You need flotation.

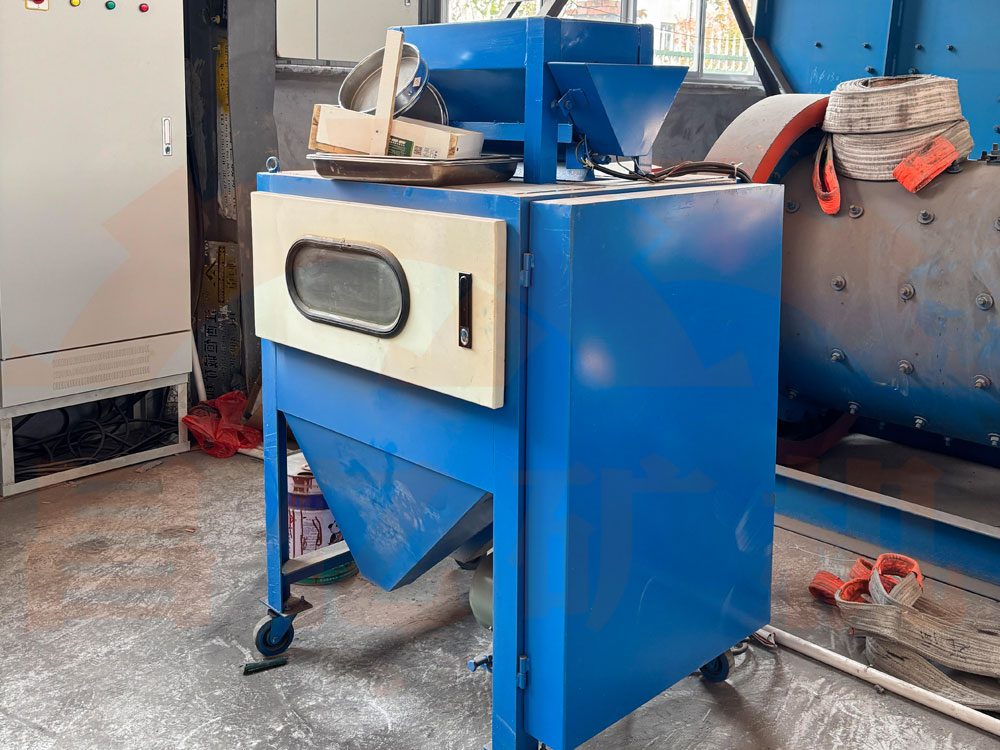

This is a dry, fine-tuning step for coarse concentrates. Cassiterite conducts electricity well; wolframite doesn't. Pass the dry concentrate through a high-voltage electrostatic separator, and they’ll split instantly. It’s perfect for pushing your final product grade to premium levels.
That -20μm slime fraction is where mines lose their shirts. It’s too light for jigs and tables. The fix? Combine centrifugal concentrators or suspended vibration concentrators with specialized tin/scheelite flotation. Yeah, it costs a bit more to run, but recovering that lost metal pays for itself in spades.
Your concentrates are basically soup right now. You can’t sell soup. Thicken it in a settling tank, run it through a vacuum or filter press, and dry it. Now you’ve got a clean, dry, high-grade product ready for market. Treat your tailings responsibly, and you’re done.
There is no magic bullet for tungsten-tin beneficiation. It’s all about matching the process to the ore, separating in stages, and aggressively minimizing losses. The core flow is Pre-concentration → Desulfurization → Gravity → Precision Separation → Slime Recovery. Just tweak the magnetic, flotation, or electrostatic steps depending on whether you’re running wolframite or scheelite.
Want to boost your bottom line? Stop over-grinding your tin, strip out those sulfides early, catch your slimes, and tune your equipment to your specific ore. That’s how you win in this business.
Q1: What’s the biggest headache in tungsten-tin processing?
Density overlap and cassiterite’s brittleness. They’re hard to separate, and grinding turns your tin into unrecoverable mud.
Q2: What’s the difference between gravity and flotation here?
Gravity is your cheap, early-stage bulk concentrator for coarse stuff. Flotation is your precision tool for fines and complex separations.
Q3: How does magnetic separation actually work?
Wolframite is magnetic; cassiterite isn't. A strong magnet pulls the wolframite out, leaving the tin behind. Simple physics.
Q4: What is asynchronous flotation?
It’s a smart trick. You float the minerals in separate steps at different pH levels based on their unique chemistry, rather than trying to force them all to float at once.
Q5: How do I stop losing fine particles?
Ditch the shaking tables for the slime fraction. Use high-G centrifugal concentrators to physically force those microscopic heavy minerals out of the water.
