Dividing mud bucket

Model	Settlement Area (㎡)	Volume (m³)	Feeding Size (mm)	Discharge Concentration (%)	Capacity (㎡/t)	Weight (t)	Dimensions (mm)
CY-1000	0.78	0.27	<0.2	40-60	4.5–52	0.5	Φ1264×1529
CY-1500	2	0.83	<0.2	40-60	4.5–52	1	Φ1804×2115
CY-2000	3	2.27	<0.2	40-60	4.5–52	1.5	Φ2404×2715
CY-2500	4.9	4	<0.2	40-60	4.5–52	1.9	Φ2906×3328
CY-3000	7	6.65	<0.2	40-60	4.5–52	2.1	Φ3406×3925

Dividing Mud Bucket

Table of Contents

• Product Overview

• Key Features

• Technical Parameters

• Application Scenarios

• After-Sales Services

Product Overview

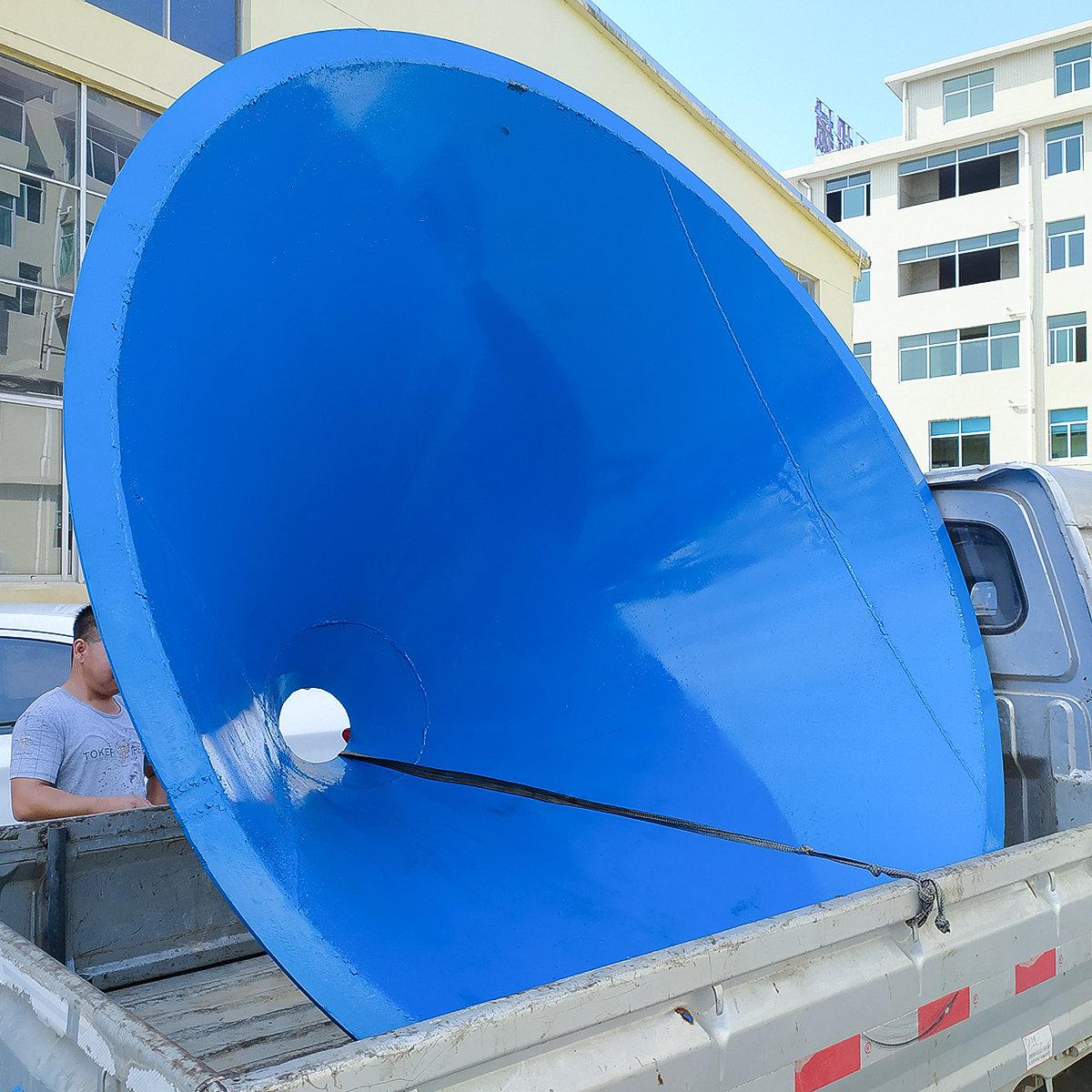

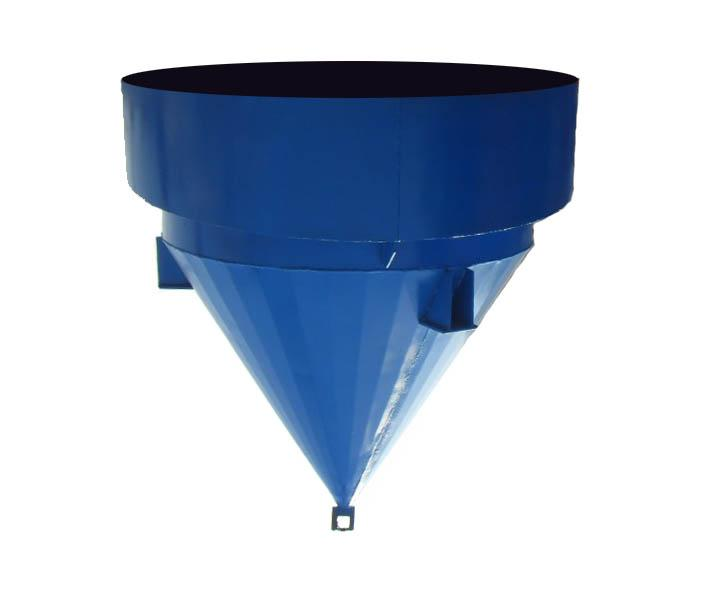

The Dividing Mud Bucket is a specialized mud classifier designed for efficient ore desludging and feed control. Featuring a simple cone structure, this mineral classification tank enables precise slurry feed regulation before spiral chutes, shaking tables, or grinding units. As the slurry is tangentially fed into the tank center, it radiates toward the overflow weir, while heavier particles settle efficiently in the conical base for discharge.

This high-efficiency slurry control equipment is widely used for mineral classification, ore concentration, and sludge removal, enhancing performance across mining operations and mineral processing lines.

Key Features

• Simple cone structure with effective sedimentation and classification

• Ideal for desliming raw ores before hydraulic classifiers

• Improves grinding feed concentration and efficiency

• Supports upstream control for ore slime separation equipment

• Large cone volume doubles as ore storage tank

• Low maintenance, high wear-resistance, and long service life

Technical Parameters

Model	Settlement Area (㎡)	Volume (m³)	Feeding Size (mm)	Discharge Concentration (%)	Capacity (㎡/t)	Weight (t)	Dimensions (mm)
CY-1000	0.78	0.27	<0.2	40-60	4.5–52	0.5	Φ1264×1529
CY-1500	2	0.83	<0.2	40-60	4.5–52	1	Φ1804×2115
CY-2000	3	2.27	<0.2	40-60	4.5–52	1.5	Φ2404×2715
CY-2500	4.9	4	<0.2	40-60	4.5–52	1.9	Φ2906×3328
CY-3000	7	6.65	<0.2	40-60	4.5–52	2.1	Φ3406×3925

Application Scenarios

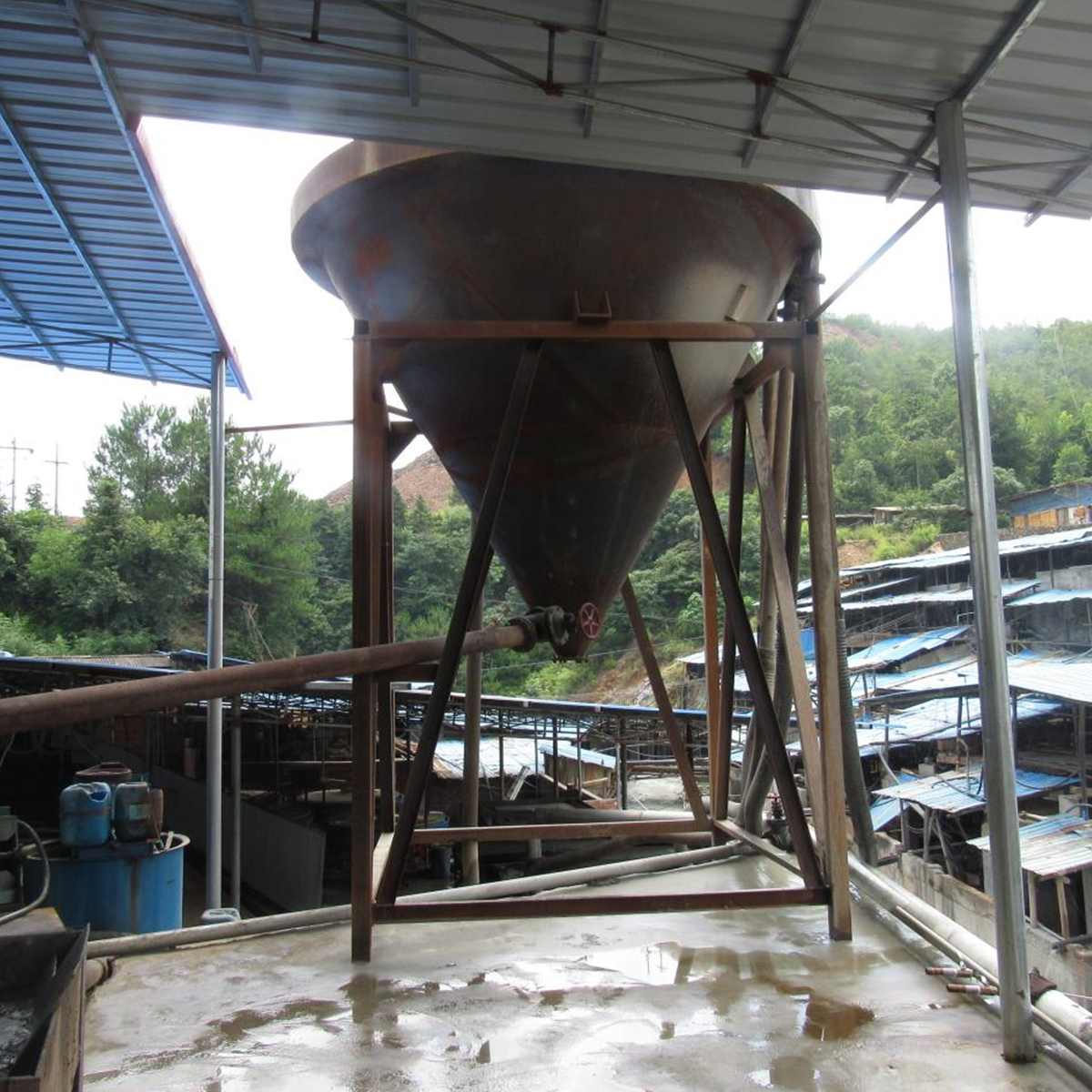

The dividing mud bucket is commonly integrated before hydraulic classifiers to enhance classification efficiency. It is also used in front of grinding systems for ore thickening and dewatering, helping to raise feed concentration. Additionally, it supports slurry flow control in mineral separation systems and acts as a temporary ore storage tank due to its large conical volume.

This slurry feed control equipment plays a vital role in fine ore desludging and concentrate preparation across gold, tin, tungsten, and rare earth beneficiation lines.

After-Sales Services

• Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.

• Support engineers to provide on-site guidance for installation and commissioning;

• 7*24 hours online communication and guidance;

• Product manuals and installation videos are provided;
