Ordinary mixing tank

Model	Tank Diameter (mm)	Tank Height (mm)	Effective Volume (m³)	Impeller Diameter (mm)	Power (kW)	Weight (kg)
XB05	500	500	0.078	240	0.75	160
XB07	750	750	0.26	240	0.75	228
XB10	1000	1000	0.58	240	2.2	350
XB12	1200	1200	1.14	400	4	765
XB15	1500	1500	2.2	400	5.5	1360
XB20	2000	2000	5.5	550	11	1800
XB25	2500	2500	11	625	15	2270
XB30	3000	3000	19.1	800	18.5	4296
XB35	3500	3500	29.5	850	22	5580
XB40	4000	4000	46	1000	30	8036

Ordinary Mixing Tank for Mining and Mineral Processing

Table of Contents

• Product Overview

• Key Features

• Technical Specifications

• Application Scenarios

• Transport & After-Sales

Product Overview

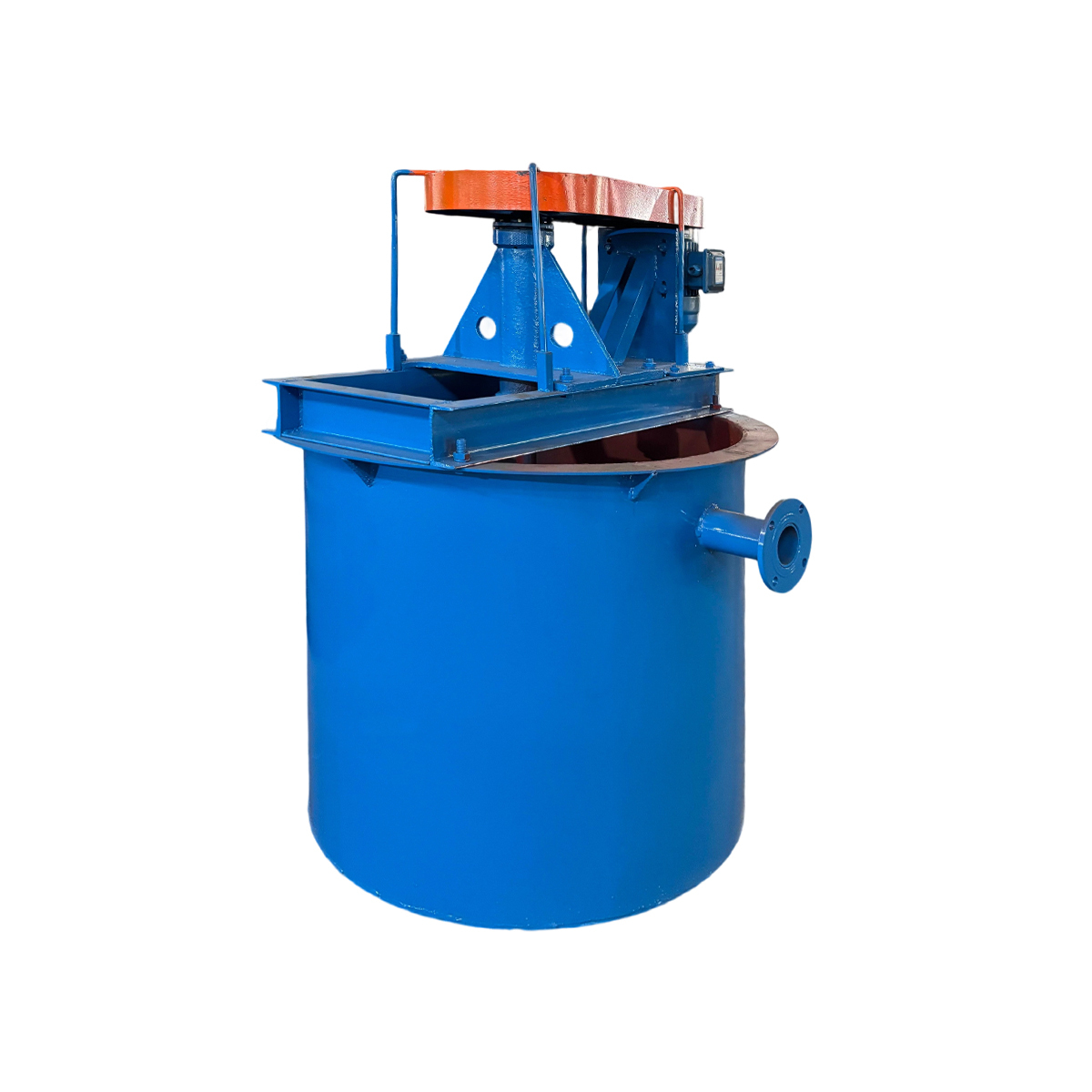

The ordinary mixing tank, also referred to as a slurry mixing tank for mining, is essential in the mineral processing and chemical industries. It is primarily used to ensure the complete and uniform mixing of slurry and reagents before the flotation process of metal minerals. This mechanical mixing tank is driven by an electric motor, which rotates the impeller to circulate the materials in the tank for homogeneous blending.

The design of the ordinary mixing tank ensures effective reagent distribution, enhancing flotation outcomes. Its robust construction and efficient mixing mechanism make it a reliable slurry and reagent mixer for various operational scales.

Key Features

• Efficient slurry and reagent mixing prior to flotation

• Electric motor-driven impeller mixing equipment ensures uniform circulation

• Compact design with excellent sealing performance

• Low residual ash rate and quick discharge capability

• Applicable in both metallic and non-metallic mineral processing

Technical Specifications

Model	Tank Dia (mm)	Tank Height (mm)	Effective Volume (m³)	Impeller Dia (mm)	Power (kW)	Weight (kg)
XB05	500	500	0.078	240	0.75	160
XB07	750	750	0.26	240	0.75	228
XB10	1000	1000	0.58	240	2.2	350
XB12	1200	1200	1.14	400	4	765
XB15	1500	1500	2.2	400	5.5	1360
XB20	2000	2000	5.5	550	11	1800
XB25	2500	2500	11	625	15	2270
XB30	3000	3000	19.1	800	18.5	4296
XB35	3500	3500	29.5	850	22	5580
XB40	4000	4000	46	1000	30	8036

Application Scenarios

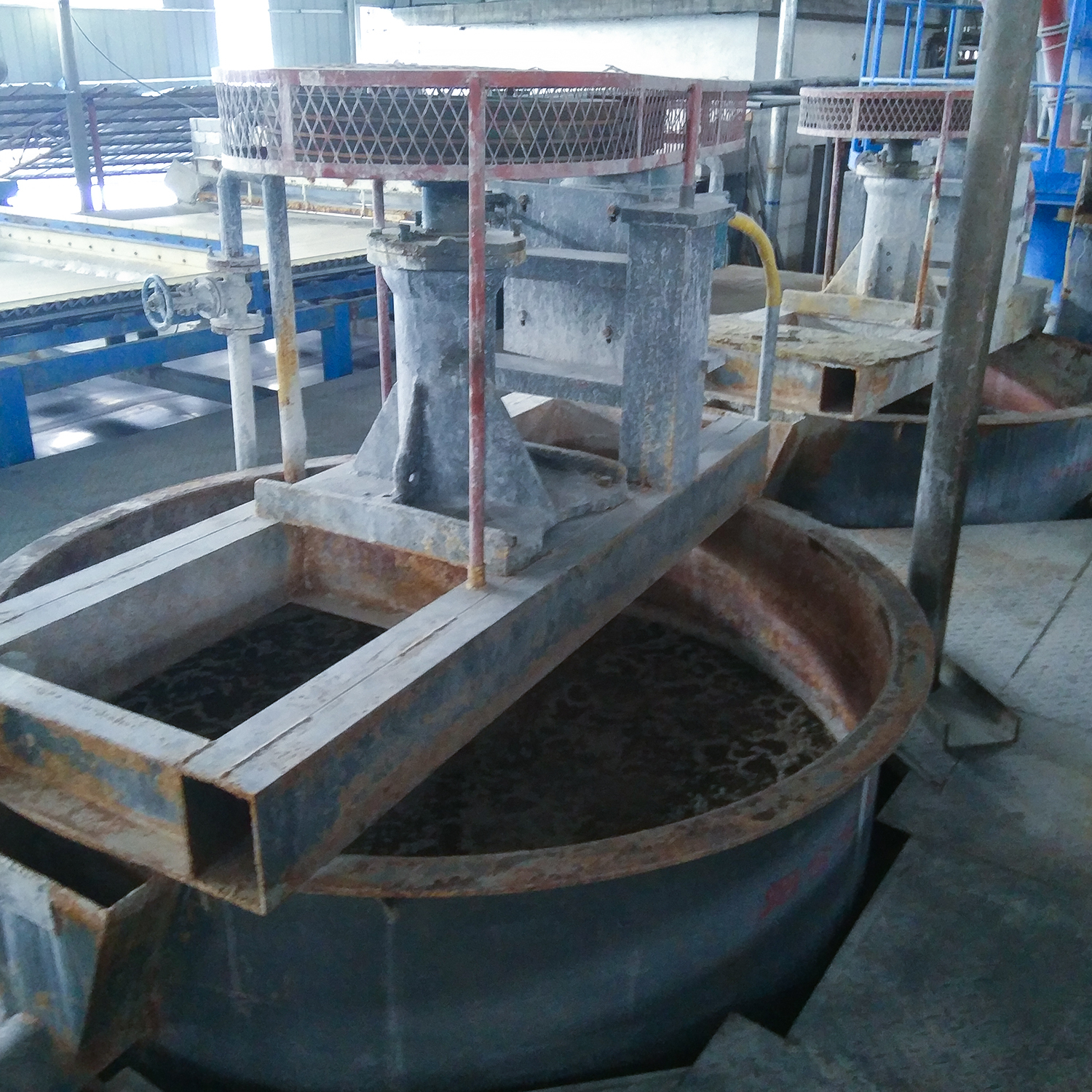

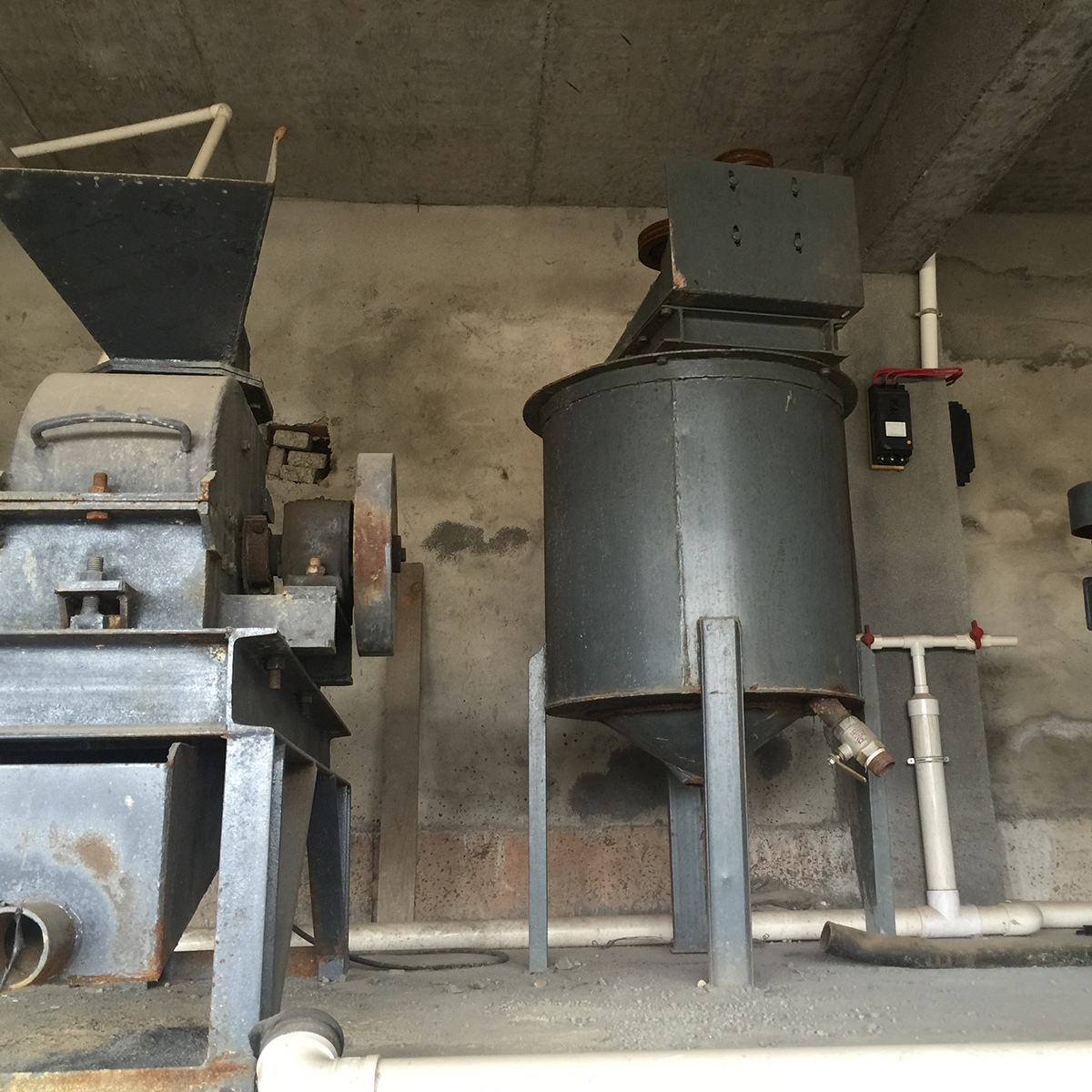

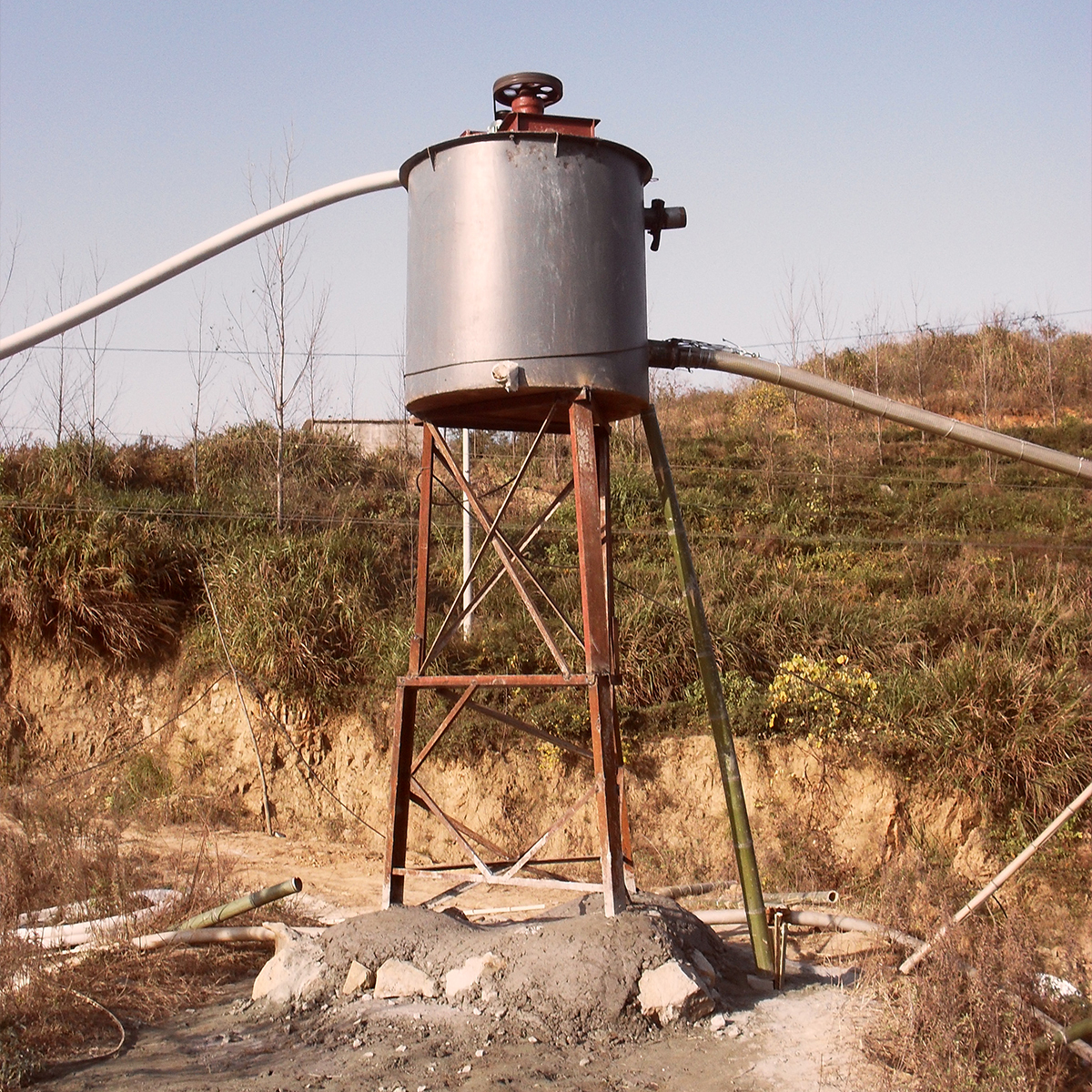

The XB mechanical stirring tank is widely used in flotation and gravity separation circuits for both ferrous and non-ferrous ores. As a versatile mineral processing stirring tank, it ensures that reagents and slurry are thoroughly blended to maximize flotation performance. The tank consists of a main body, vertical shaft, transmission frame, and motor assembly.

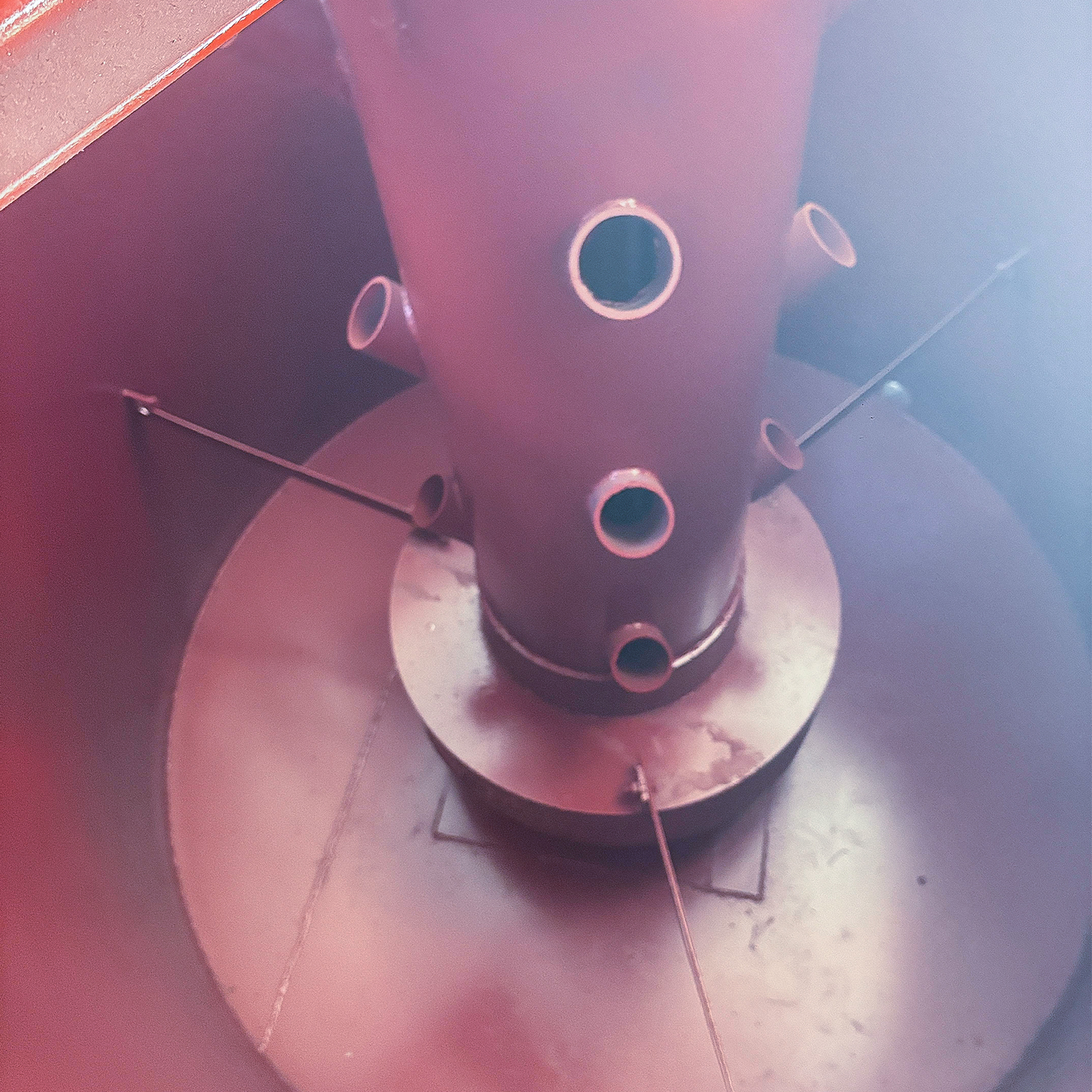

The impeller mixing equipment functions similarly to a radial circulation propeller. Driven by a motor and belt system, the impeller creates a vortex inside the tank to suspend solids and mix reagents evenly. This equipment is known for its tight sealing, compact footprint, and fast material discharge, making it a high-efficiency mining flotation mixing tank.

After-Sales Service

• Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.

• Support engineers to provide on-site guidance for installation and commissioning;

• 7*24 hours online communication and guidance;

• Product manuals and installation videos are provided;
