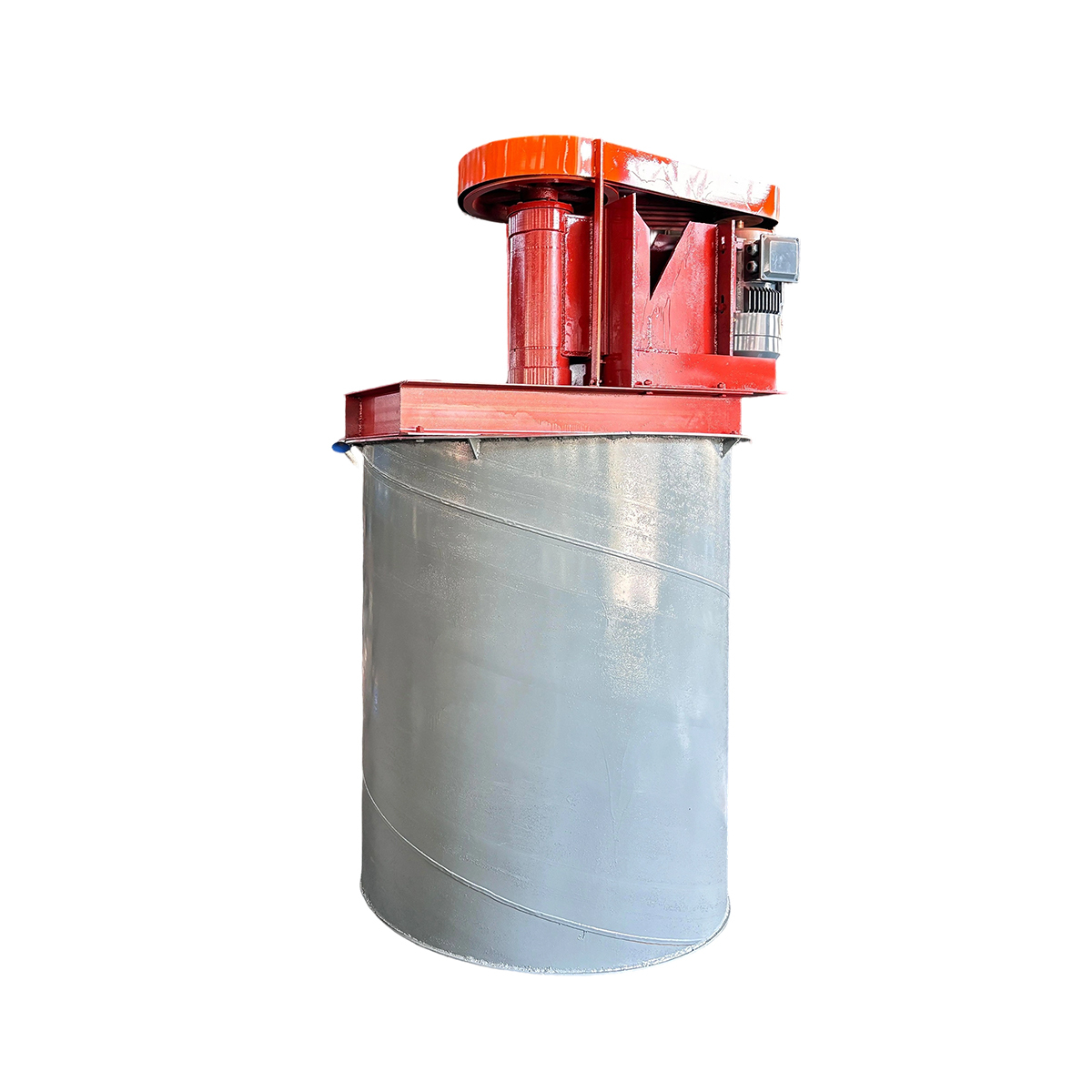

Lifting mixing tank

Model	Chute (mm)	Effective Volume (m³)	Impeller Diameter (mm)	Rotary Speed (r/min)	Power (kW)	Weight (kg)
XBT-750	750×1000	0.42	300	572	3	681
XBT-1500	1500×1800	2.8	450	480	11	1022
XBT-2000	2000×2500	6.0	550	362	15	2400
XBT-2500	2500×3000	12.0	650	305	22	4700

Lifting Mixing Tank for Mining and Ore Processing

Table of Contents

• Product Overview

• Key Features

• Technical Specifications

• Application Scenarios

• Shipping & Dimensions

• After-Sales Service

Product Overview

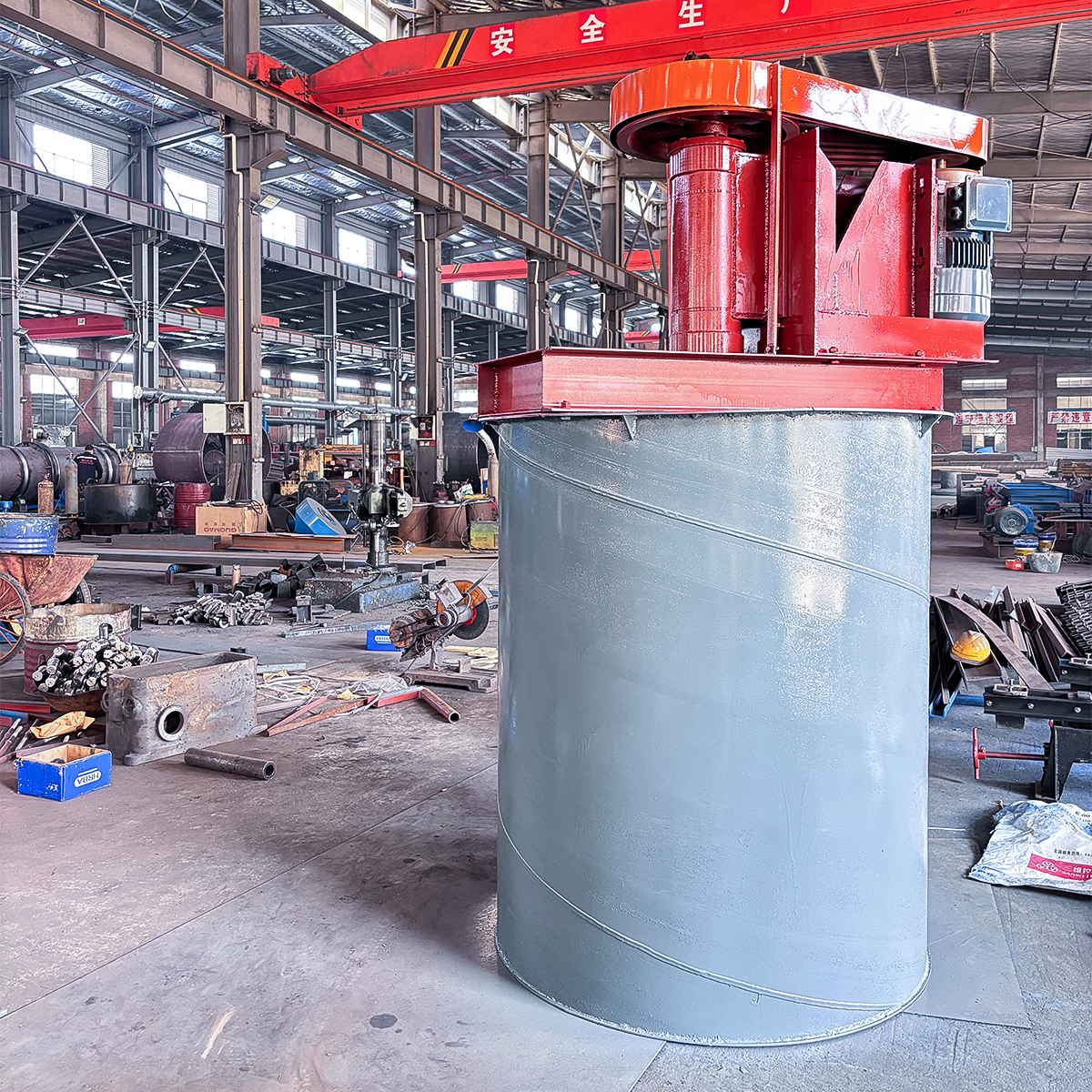

The lifting mixing tank, also known as a mining mixing tank, is a vital piece of slurry agitation equipment used before the flotation process in mineral processing operations. This equipment is designed to fully mix slurry with reagents to improve flotation efficiency. It is powered by an electric motor that drives the impeller to rotate, ensuring the reagents and slurry are thoroughly mixed and reaction time is extended. The flotation mixing tank is widely applied in processing both metal and non-metallic ores.

Key Features

• Efficient slurry mixing and agitation before mineral separation.

• Powered by a motor-driven impeller for uniform reagent distribution.

• Helps enhance reagent reaction time and overall flotation performance.

• Especially effective in flotation circuits of ore processing plants.

• Applicable to ferrous, non-ferrous metal mines and coal preparation plants.

Technical Specifications

Model	Chute (mm)	Effective Volume (m³)	Impeller Diameter (mm)	Rotary Speed (r/min)	Power (kW)	Weight (kg)
XBT-750	750×1000	0.42	300	572	3	681
XBT-1500	1500×1800	2.8	450	480	11	1022
XBT-2000	2000×2500	6.0	550	362	15	2400
XBT-2500	2500×3000	12.0	650	305	22	4700

Application Scenarios

The XBT lifting mixing tank is primarily used to lift and mix slurry in mineral processing flows where there is insufficient elevation difference. With a suction range of approximately 0.2M and a lifting height of around 1M, this ore processing mixing tank also agitates the slurry effectively.

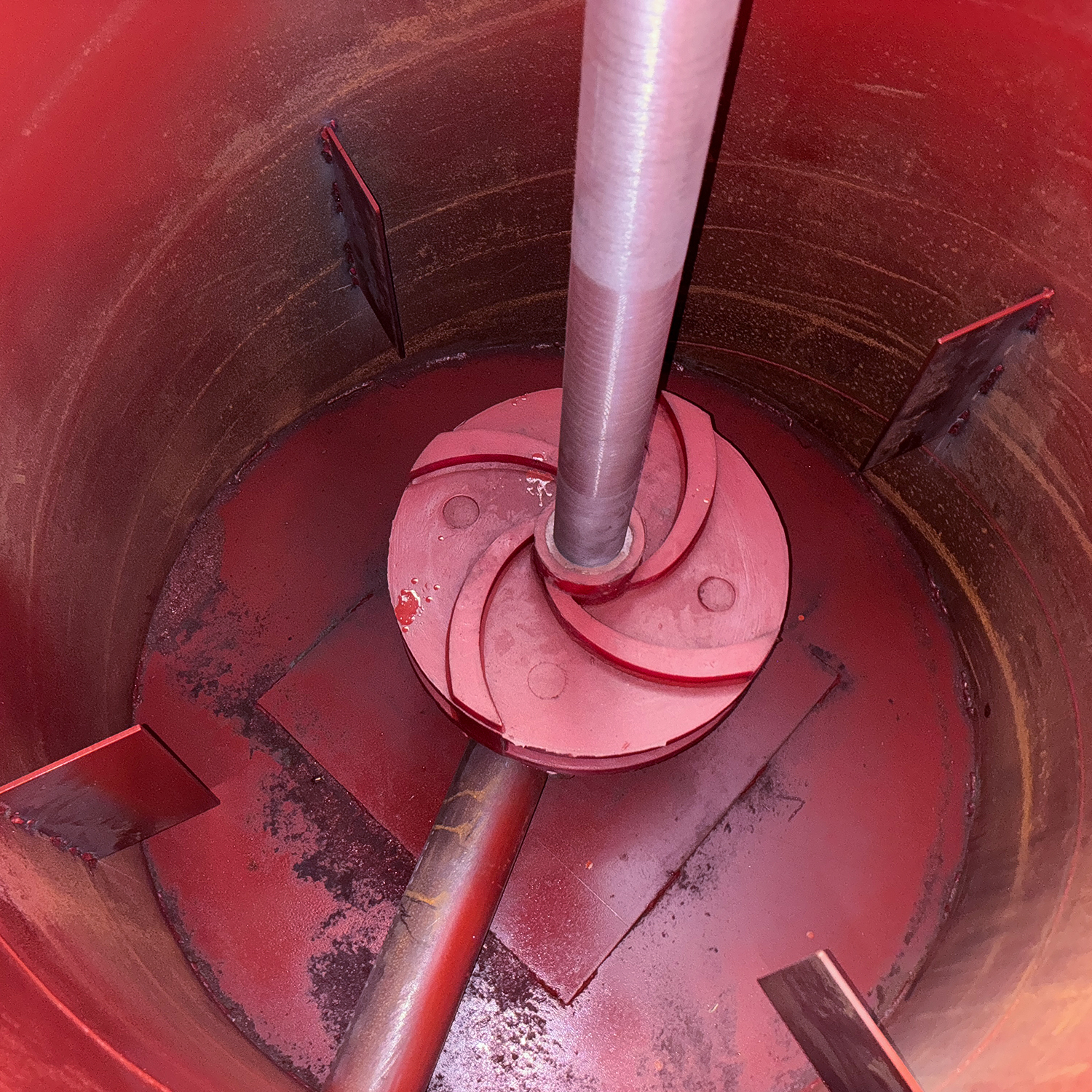

The tank’s impeller operates similarly to a centrifugal pump, drawing slurry through the feed pipe into the impeller chamber. The slurry is then discharged centrifugally around the impeller, effectively suspending solid particles throughout the tank. This enables complete mixing and elevation of the slurry, critical in mineral beneficiation, especially in flotation mixing systems.

This equipment is ideal for ferrous and non-ferrous metal ore dressing plants, coal washing plants, and other facilities that require both slurry mixing and lifting.

Shipping & Dimensions

Shipping dimensions vary based on the model. Please contact us for customized packaging solutions and overseas logistics support. All lifting mixing tanks are shipped with safety reinforcements and labeled specifications.

After-Sales Service

• Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.

• Support engineers to provide on-site guidance for installation and commissioning;

• 7*24 hours online communication and guidance;

• Product manuals and installation videos are provided;
