Linear Vibrating Screen

Model	Layers	Screen Mesh (mm)	Feeding Size (mm)	Capacity (t/h)	Double Breadth (mm)	Vibrating Direction Angle (°)	Power (kw)
ZKB0936	1	0.25-50	<100	4-40	6-8	45	2.2x2
2ZKB1020	2	0.25-50	<100	4-50	6-8	45	3x2
ZKB1025	1	0.25-50	<100	4-50	6-8	45	3x2
ZKB1225	1	0.25-50	<100	9-80	6-8	45	4x24x2
ZKB1236	1	0.25-50	<100	9-100	6-8	45	5.5x2
2ZKB1236	2	0.25-50	<100	9-100	6-8	45	5.5x2
2ZKB1437	2	0.25-50	<100	12-150	8-10	45	7.5x2
ZKB1542	1	0.25-50	<100	12-160	8-10	45	11x2
ZKB1836	1	0.25-50	<300	16-260	8-10	45	15x2

Linear Vibrating Screen | Efficient Screening Equipment

Table of Contents

• Product Overview

• Key Features

• Technical Specifications

• Application Scenarios

• Packaging & Transport

• After-Sales Service

Product Overview

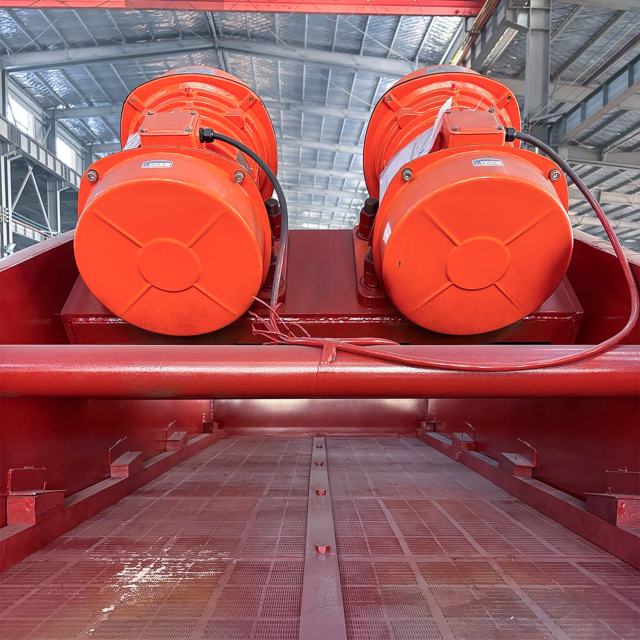

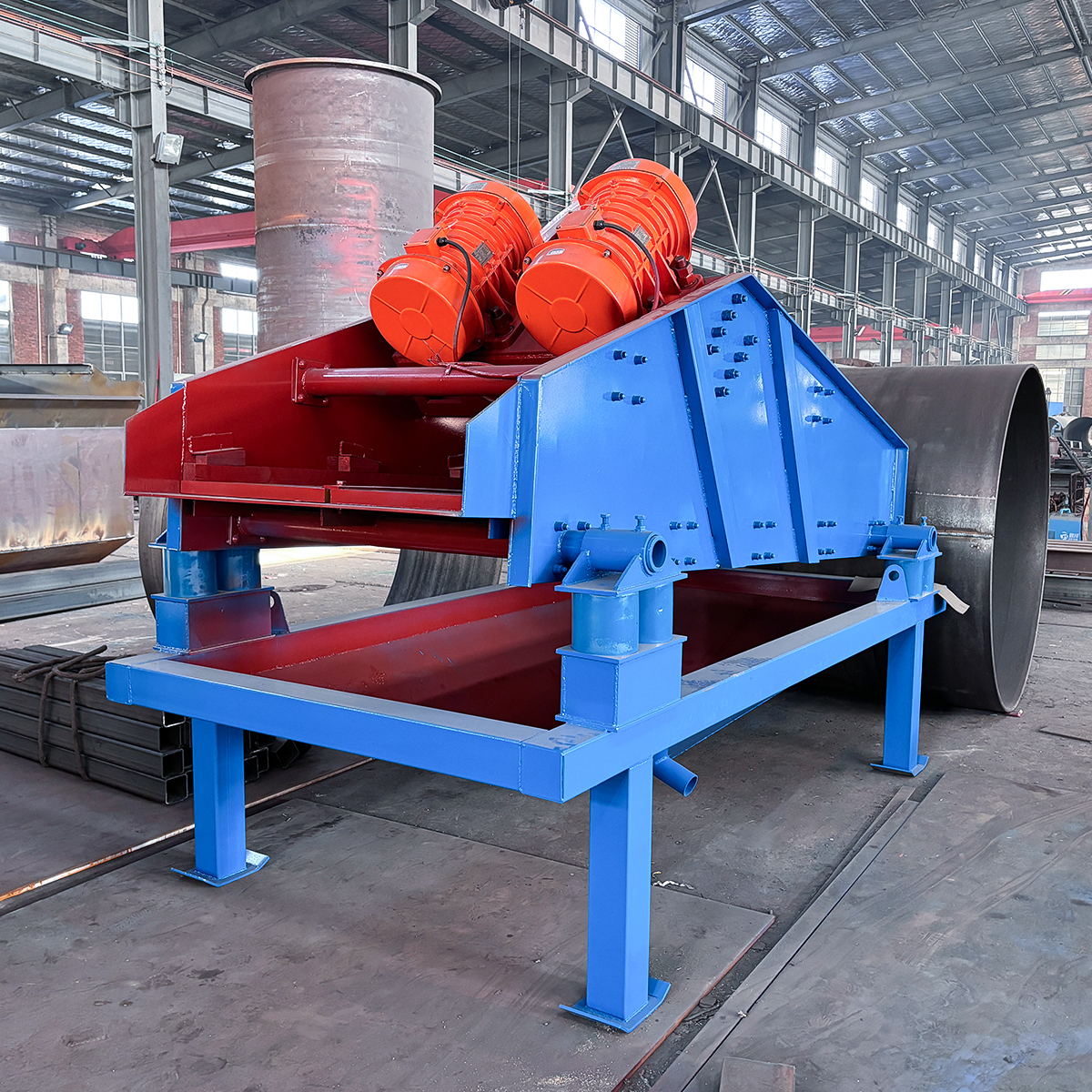

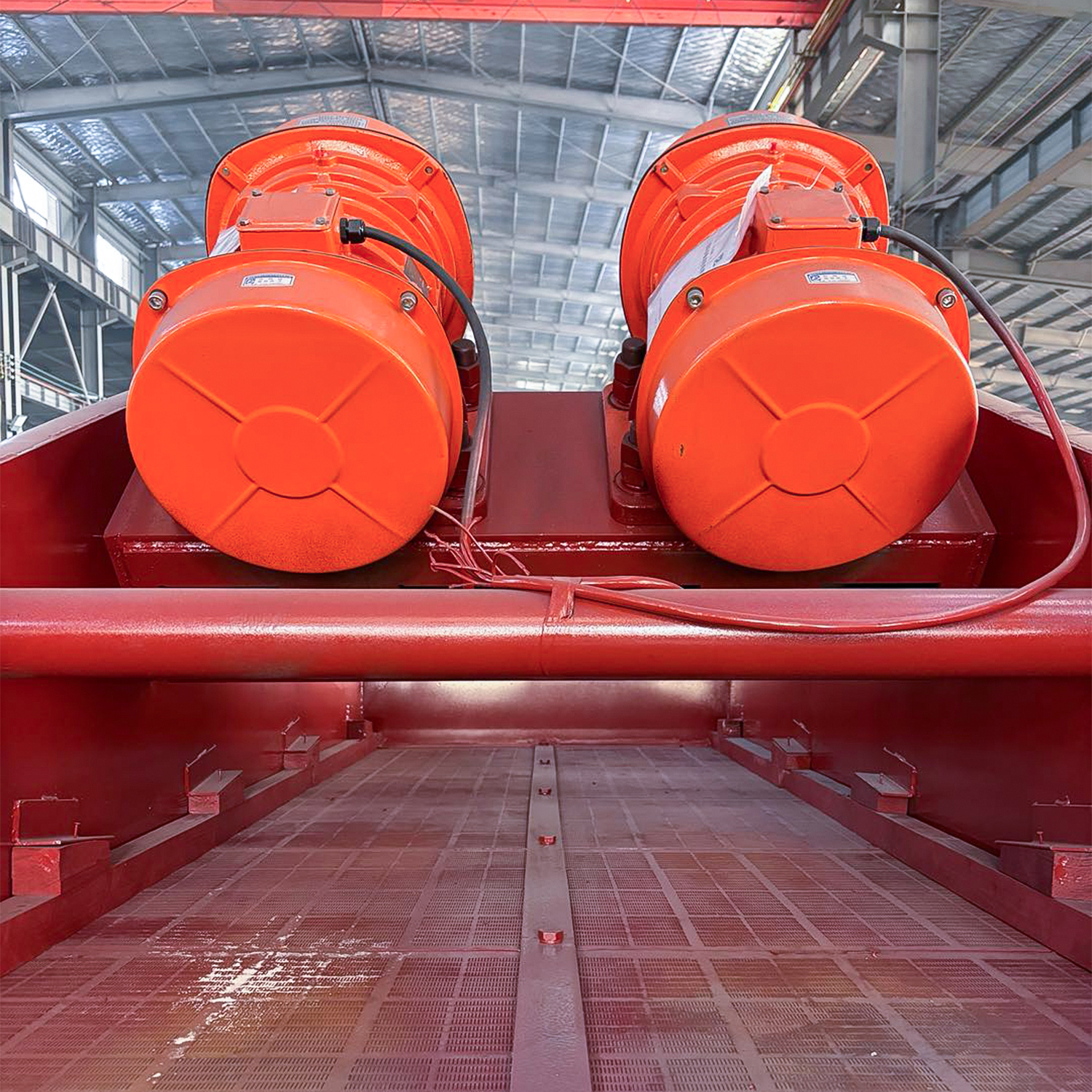

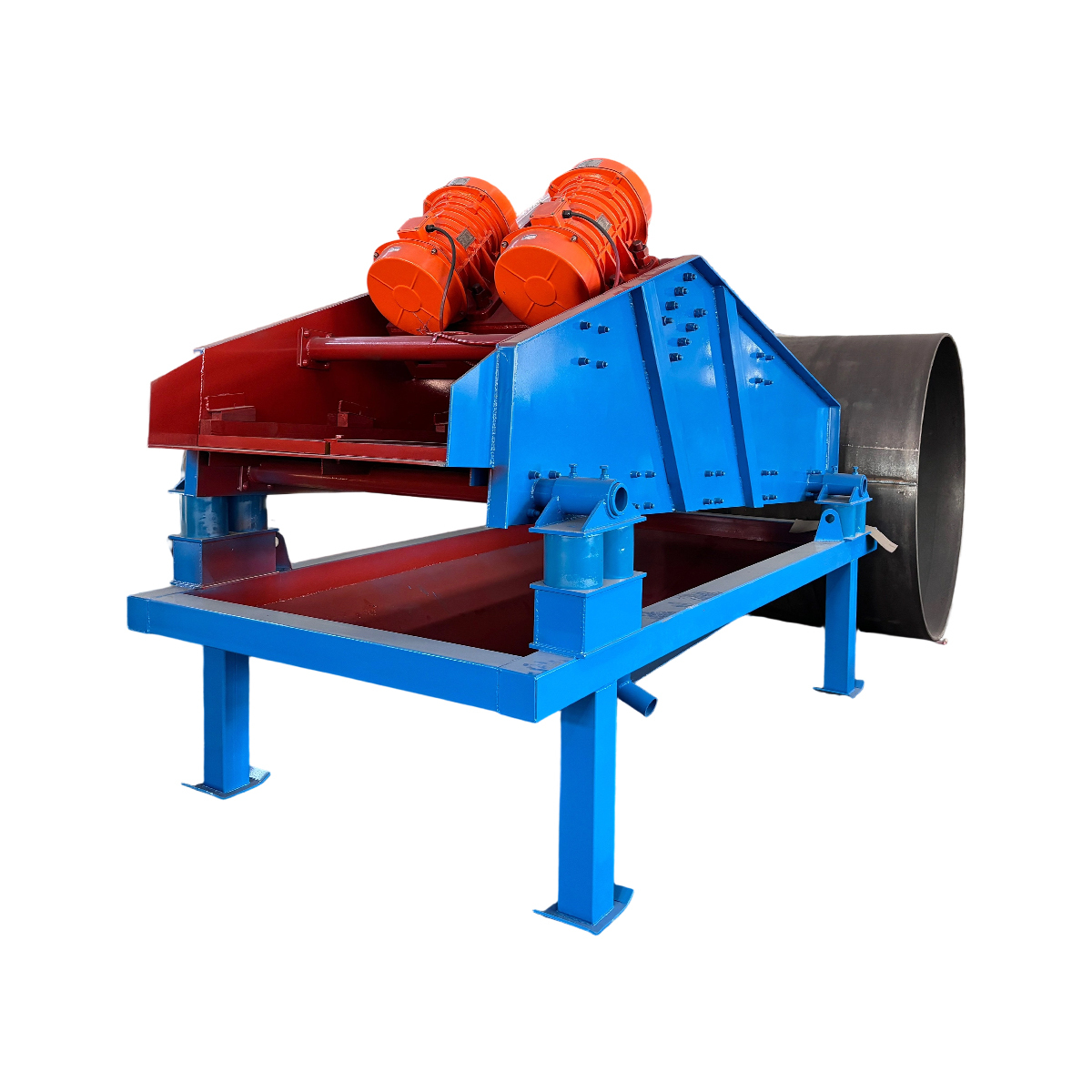

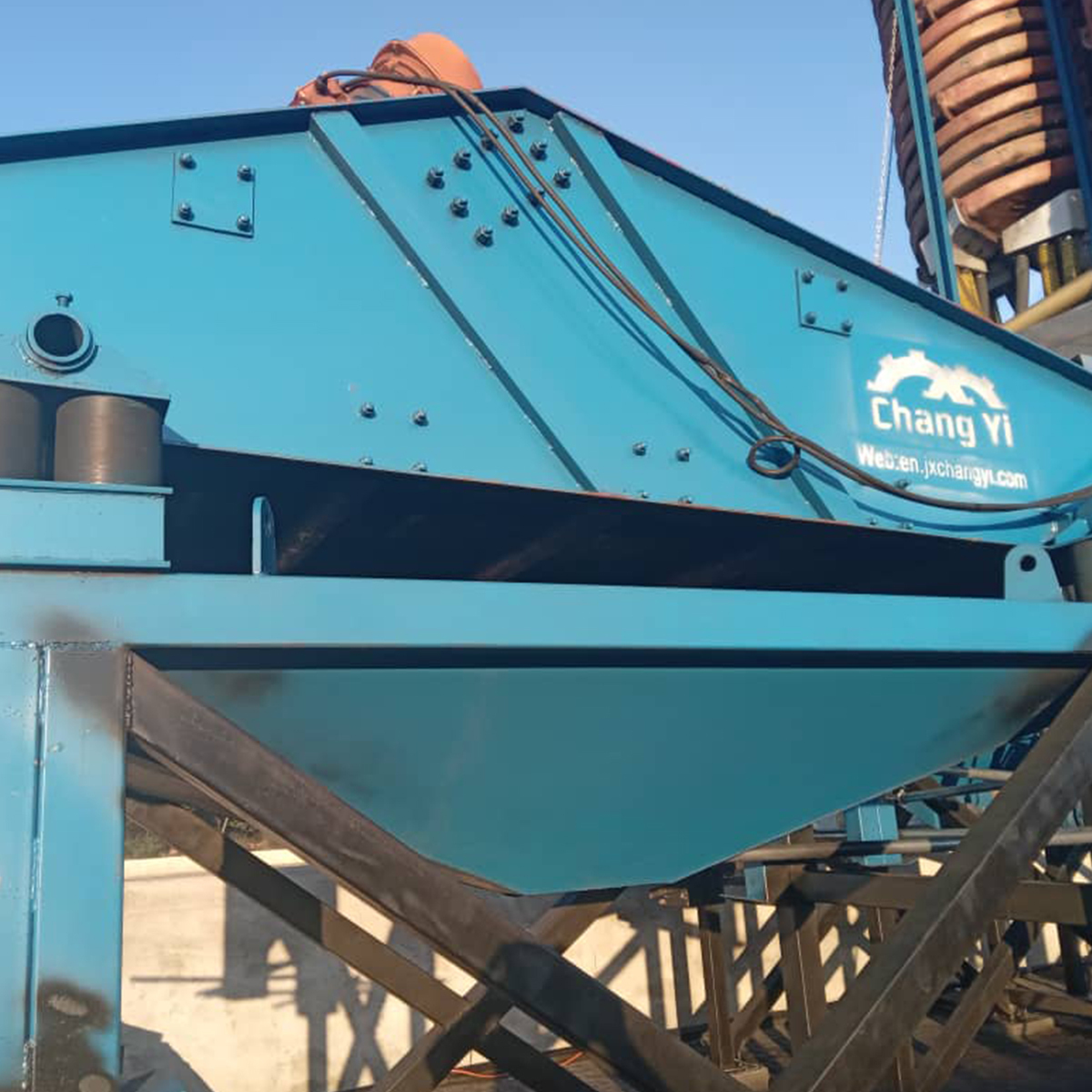

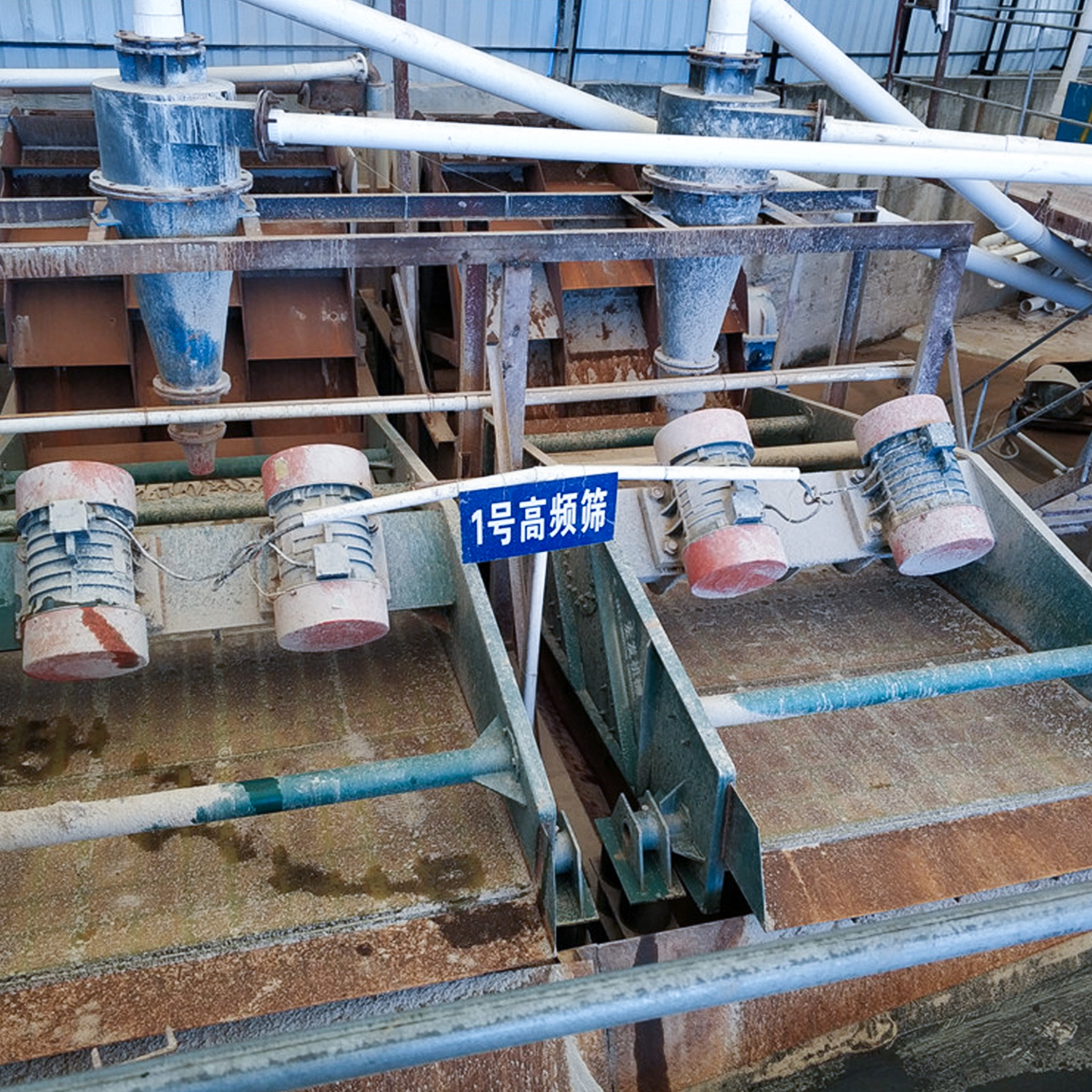

The Linear Vibrating Screen uses a vibration motor as the excitation source, making the material move in a straight line across the screen. The material is uniformly fed into the inlet and passes through multi-layer screen meshes to produce different grades of products. The linear vibrating screen is designed to provide high yield, low energy consumption, easy maintenance, and a dust-free working environment, making it ideal for screening bulk materials across various industries.

This equipment features automatic discharge and a fully enclosed structure, ensuring clean, efficient, and environmentally friendly operation. It is widely used in industries like food, chemicals, pharmaceuticals, metallurgy, building materials, and mining, providing exceptional performance in separating, grading, and screening materials.

Key Features

• High Efficiency: Multi-layer design allows for efficient separation and grading of materials.

• Low Energy Consumption: Utilizes vibration motor for efficient and low power consumption.

• Simple Structure: Easy to install, operate, and maintain, ensuring cost savings and low downtime.

• Dust-Free Operation: Fully enclosed design prevents dust overflow, ensuring a cleaner working environment.

• Automatic Discharge: Automatically discharges screened materials, improving productivity and reducing manual labor.

Technical Specifications

Model	Layers	Screen Mesh (mm)	Feeding Size (mm)	Capacity (t/h)	Double Breadth (mm)	Vibrating Direction Angle (°)	Power (kw)
ZKB0936	1	0.25-50	<100	4-40	6-8	45	2.2x2
2ZKB1020	2	0.25-50	<100	4-50	6-8	45	3x2
ZKB1025	1	0.25-50	<100	4-50	6-8	45	3x2
ZKB1225	1	0.25-50	<100	9-80	6-8	45	4x24x2
ZKB1236	1	0.25-50	<100	9-100	6-8	45	5.5x2
2ZKB1236	2	0.25-50	<100	9-100	6-8	45	5.5x2
2ZKB1437	2	0.25-50	<100	12-150	8-10	45	7.5x2
ZKB1542	1	0.25-50	<100	12-160	8-10	45	11x2
ZKB1836	1	0.25-50	<300	16-260	8-10	45	15x2

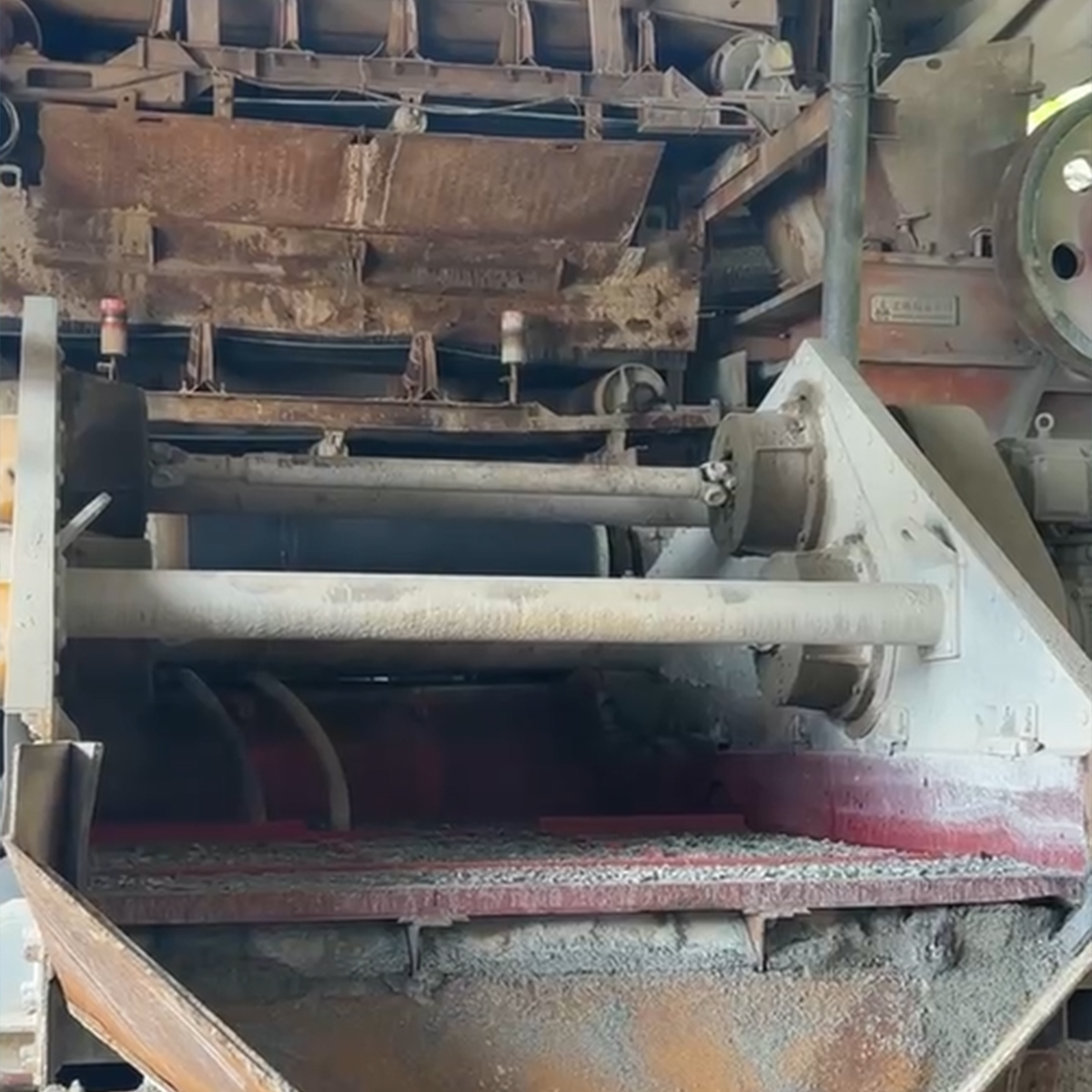

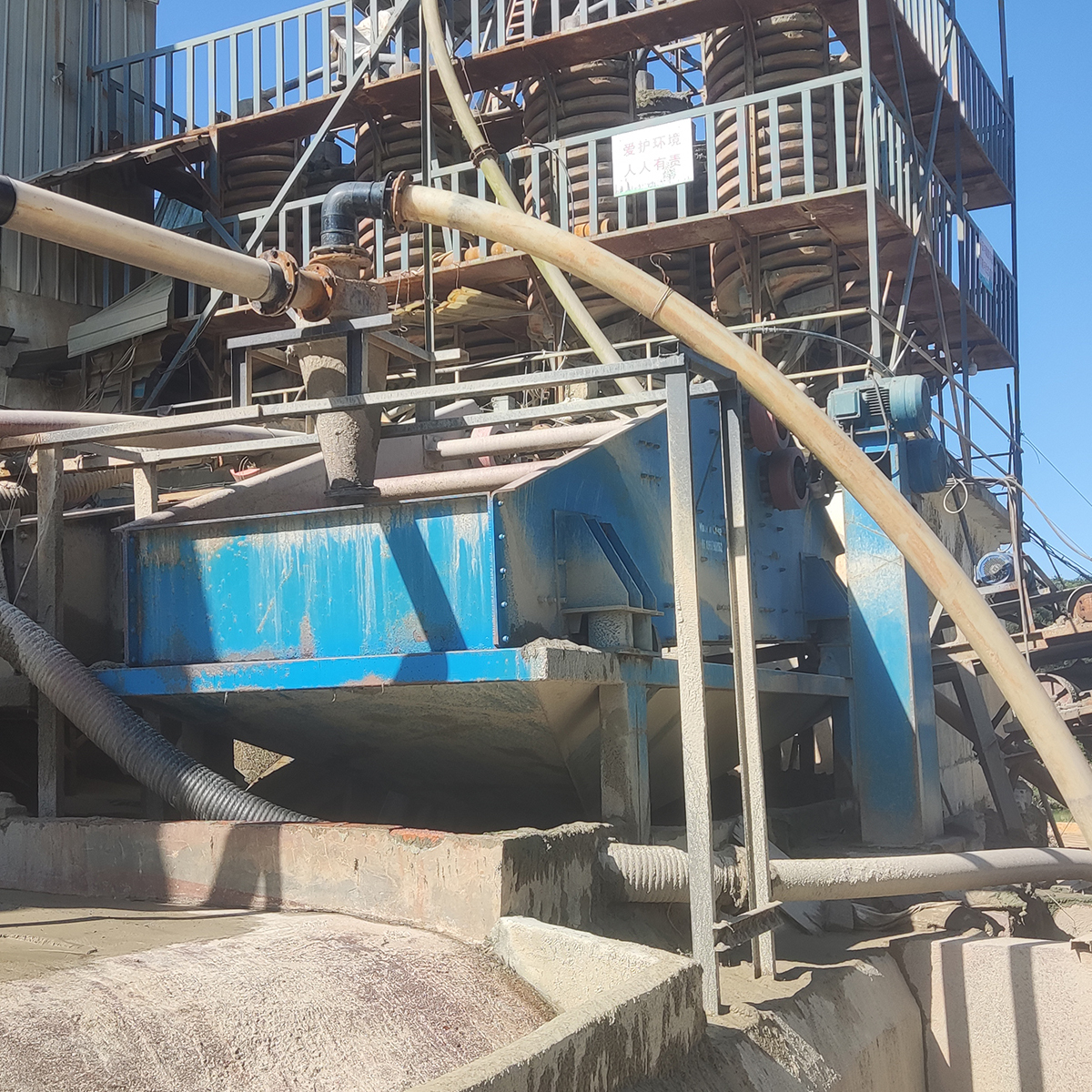

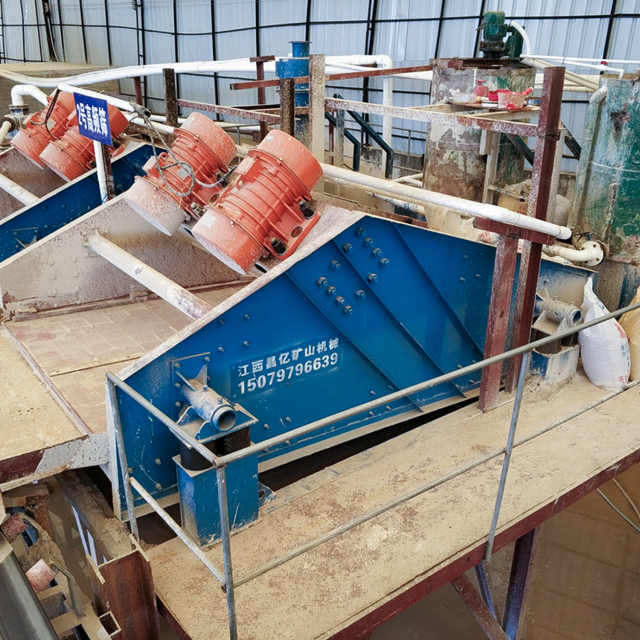

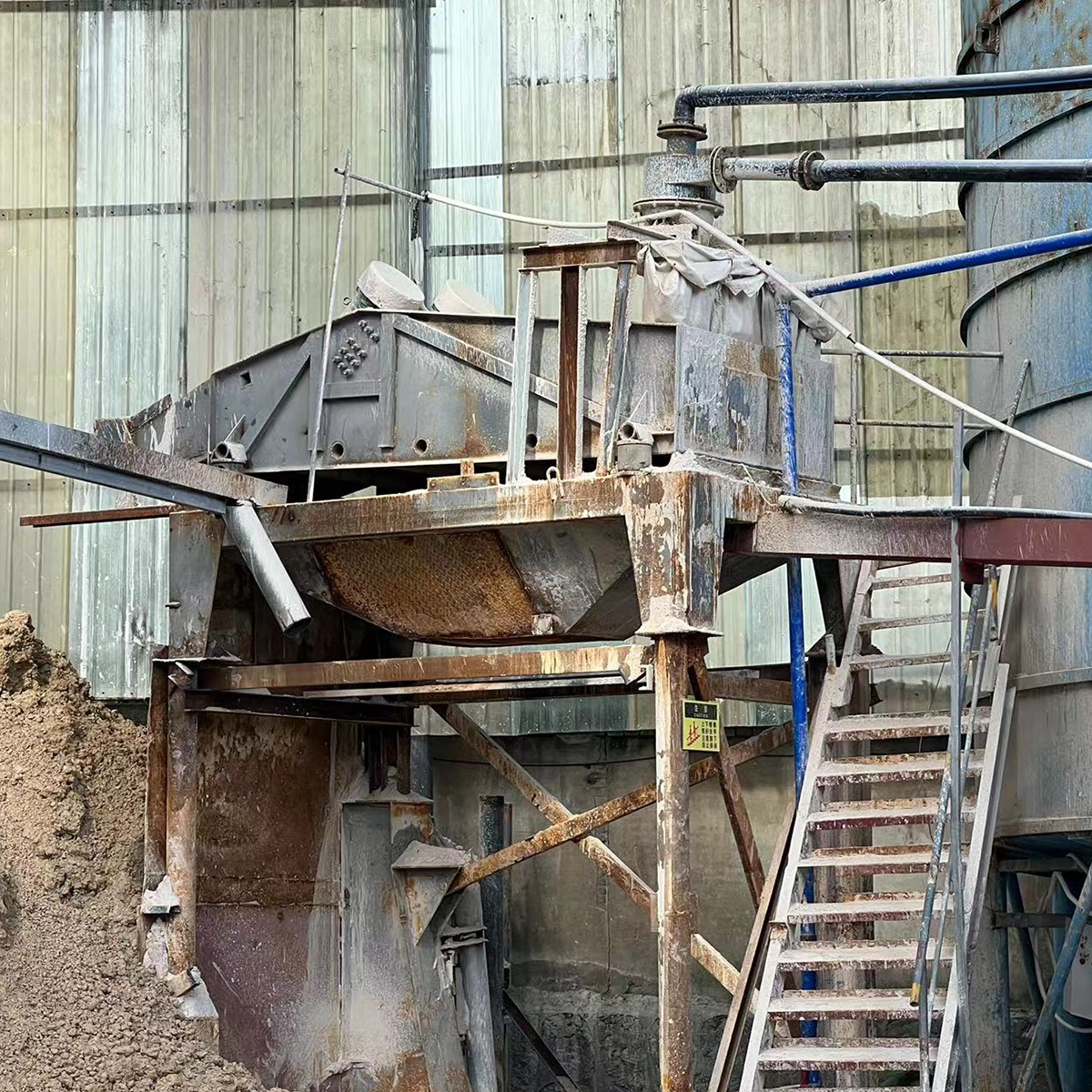

Application Scenarios

The Linear Vibrating Screen is widely used in various industries for different material screening and classification tasks:

• Food Industry: Screening raw materials such as soybeans, peanuts, sesame, etc., to ensure food hygiene and quality.

• Chemical Industry: Screening chemical raw materials such as fertilizers, resins, paints, etc., ensuring product uniformity and quality.

• Pharmaceutical Industry: Screening Chinese medicine powder, tablets, and pills to ensure the purity and particle size of medicines.

• Metallurgical Industry: Screening refractory materials, kaolin, quartz sand, etc., to improve production efficiency and product quality.

• Building Materials Industry: Screening sand, gravel, cement, etc., for the production of construction materials.

• Mining Industry: Used for ore classification, improving ore utilization.

• Other Industries: Widely used in coal, light industry, abrasives, and other sectors.

Packaging & Transport

The Linear Vibrating Screen is securely packed in export-standard materials to ensure safe transportation. Custom packaging options are available depending on shipping requirements.

After-Sales Service

• Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.

• Support engineers to provide on-site guidance for installation and commissioning;

• 7*24 hours online communication and guidance;

• Product manuals and installation videos are provided;
