Bucket Sand Washer

Model	Bucket Diameter (mm)	Rotary Speed (r/min)	Capacity (t/h)	Power (kW)
XSD2600	2600	0.8–1.2	20–50	5.5
XSD2800	2800	0.8–1.2	30–70	11
XSD3000	3000	0.8–1.2	50–100	15
XSD3200	3200	0.8–1.2	80–120	18.5
XSD3600	3600	0.8–1.2	120–180	30

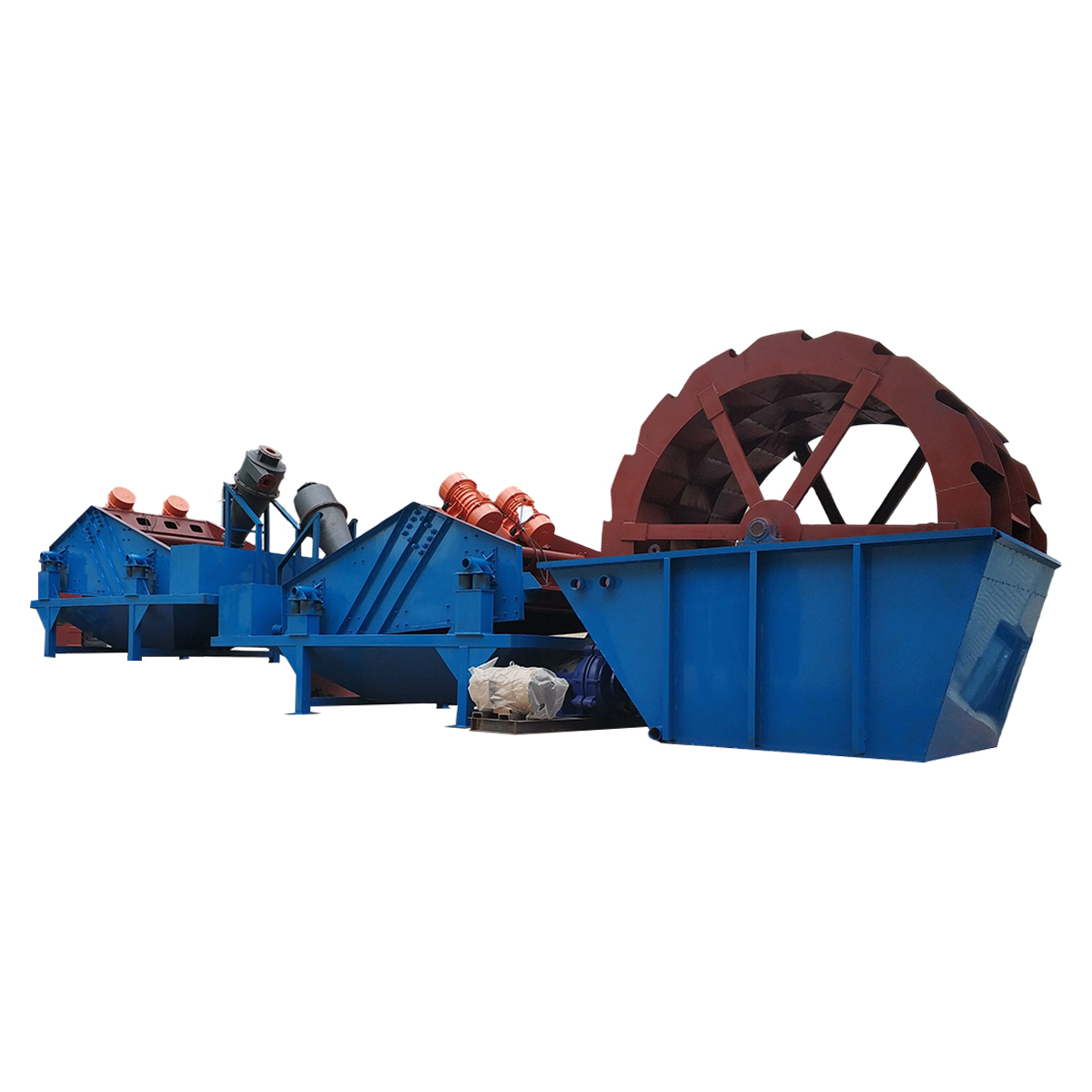

Bucket Wheel Sand Washer

Product Description

The XSD Series Bucket Wheel Sand Washer is a high-performance sand washing equipment specially designed
for removing impurities, clay, dust, and silt from sand and gravel. This advanced bucket wheel sand washer integrates
cleaning, dehydration, and classification into one system, delivering outstanding results for aggregate producers, mining operations,
construction companies, and ready-mix concrete plants.

At its core, the sand washer utilizes a rotating impeller mounted in a water tank. When in operation, raw materials are
fed into the water basin and stirred by the rotating wheel, causing the light impurities and sludge to float and overflow through the
outlet, while clean sand settles at the bottom and is lifted out by the wheel buckets. This process ensures that the final sand is
free from contaminants, with a high degree of cleanliness and uniform granularity — critical for high-grade construction applications.

The washer tank is made of corrosion-resistant steel, designed to withstand continuous wet operation and abrasive particles. The
impeller system features reinforced blades made of wear-resistant materials, significantly extending the unit’s working life
compared to conventional washing machines. With a low failure rate and user-friendly layout, the machine requires minimal maintenance,
allowing users to reduce downtime and operating costs.

Additionally, this durable sand washer is engineered for energy efficiency. It consumes less water and electricity while
offering a processing capacity ranging from 20 to 180 tons per hour. The modular structure allows for easy transport, quick installation,
and flexible configuration in both stationary and mobile crushing and screening plants.

Whether you're looking for a reliable construction sand washing machine or a used sand washer for sale with
consistent performance, the XSD series provides an optimal balance of efficiency, longevity, and return on investment for your
aggregate cleaning needs.

Key Features

• High Cleaning Efficiency: Effectively removes dirt, clay, and impurities using a powerful impeller rotation system.

• Large Capacity Output: Handles up to 180 tons per hour depending on the model.

• Robust Structure: Compact design with easy installation and maintenance.

• Low Wear Design: Fewer vulnerable parts; components made with wear-resistant materials.

• Versatile Application: Ideal for multiple industries including mining, construction, hydropower, and concrete production.

Technical Specifications

Model	Bucket Diameter (mm)	Rotary Speed (r/min)	Capacity (t/h)	Power (kW)
XSD2600	2600	0.8–1.2	20–50	5.5
XSD2800	2800	0.8–1.2	30–70	11
XSD3000	3000	0.8–1.2	50–100	15
XSD3200	3200	0.8–1.2	80–120	18.5
XSD3600	3600	0.8–1.2	120–180	30

Application Scenarios

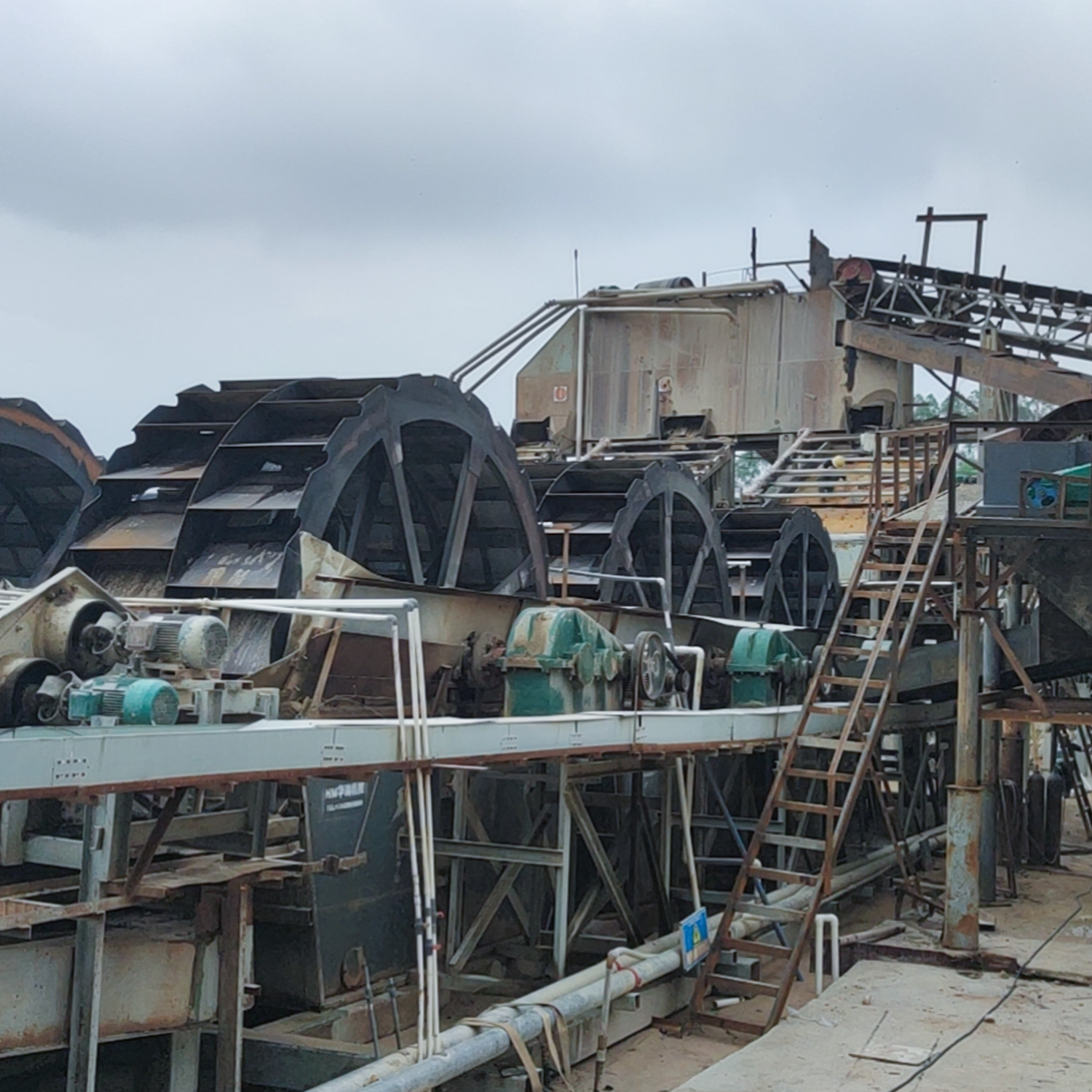

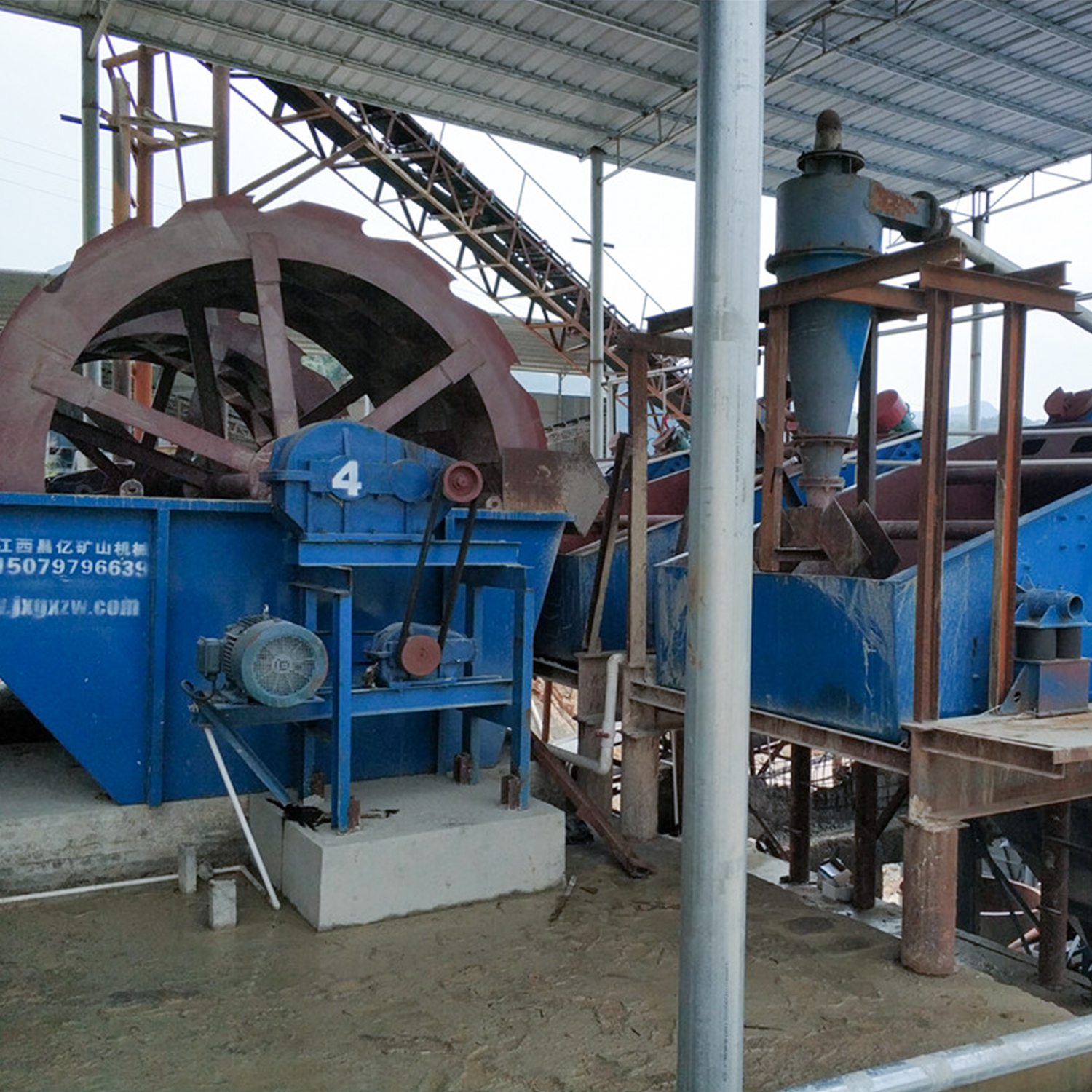

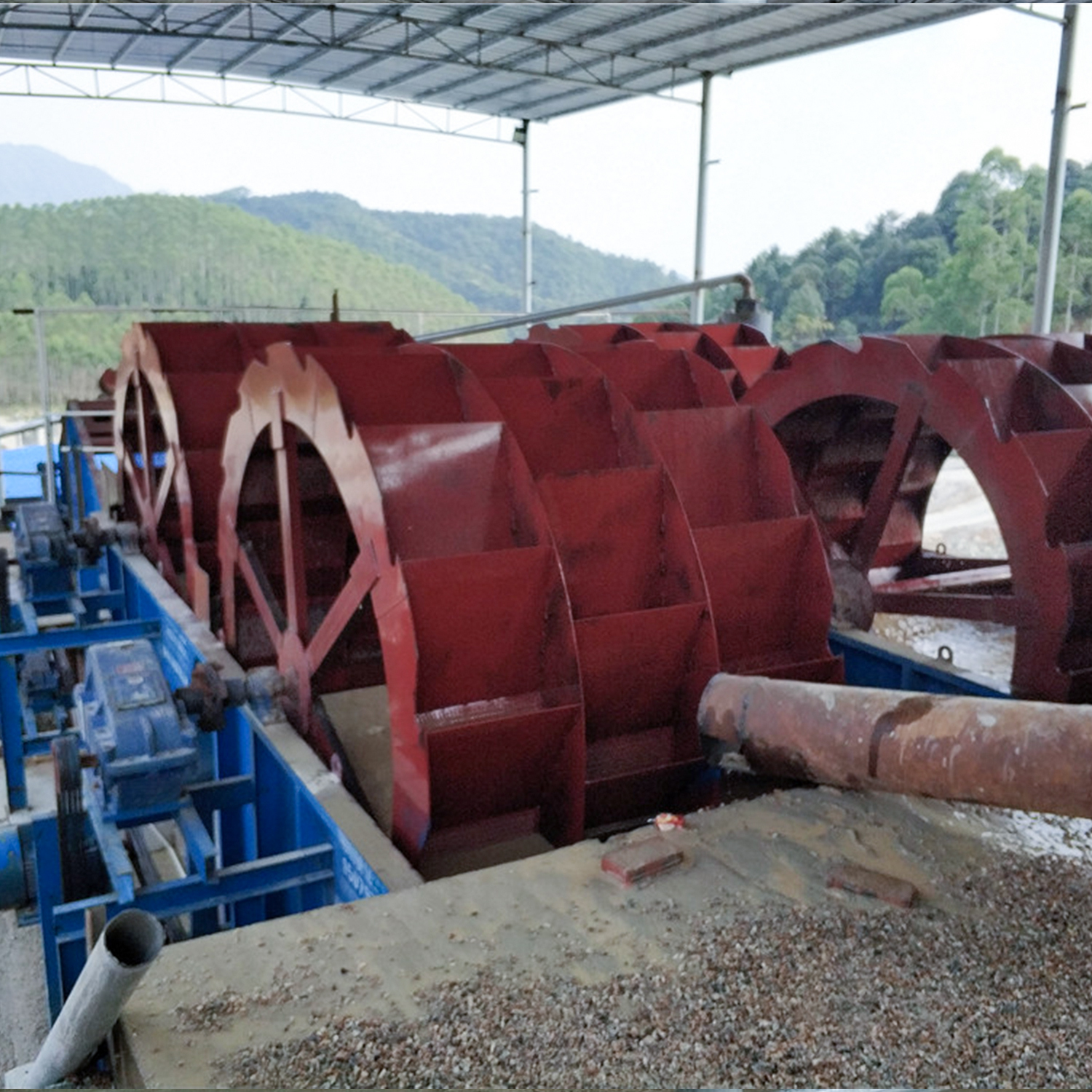

• Sand & Gravel Plant: Essential for removing dirt and clay from aggregates to ensure high-quality sand for use or resale.

• Mining Operations: Cleans raw ores to improve material quality and reduce downstream processing issues.

• Construction Sites: Ensures clean sand is used in concrete to maintain strength and durability.

• Hydropower Stations: Used to clean aggregates for dams and water infrastructure projects.

• Concrete Batching Plants: Delivers pure, fine sand for reliable concrete mixing results.

After-Sales Service

• Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.

• Support engineers to provide on-site guidance for installation and commissioning;

• 7*24 hours online communication and guidance;

• Product manuals and installation videos are provided;

Why Choose Our Sand Washer

• ISO-certified quality and global export capabilities

• Customizable color, logo, and materials

• Short lead time and strict quality control

• OEM/ODM service supported

• Multiple models to match various project scales
