Roller screen

Model	Screen Width (mm)	Number of Axes	Process Capacity (t/h)	Sieve Hole (mm)	Power (kw)	Rotary Speed (r/min)
GS-1660A	1000	6	300	55*65	6*1.25	550
GS-1009A	1000	9	500	55*65	9*1.25	550
GS-1012A	1000	12	700	55*65	12*1.25	550
GS-1409A	1400	9	1000	60*80	5*2.2	908
GS1412A	1400	12	1200	60*80	7*2.2	915
GS1415A	1400	15	1500	60*80	9*2.2	915
GS-1812A	1800	12	1500	60*80	7*2.2	915
GS-1815A	1800	15	2000	60*80	9*2.2	915
GS-1818A	1800	18	2500	60*80	11*2.2	915

Roller Screen | High-Efficiency Screening for Coarse Materials

Table of Contents

• Product Overview

• Key Features

• Technical Specifications

• Application Scenarios

• After-Sales Service

Product Overview

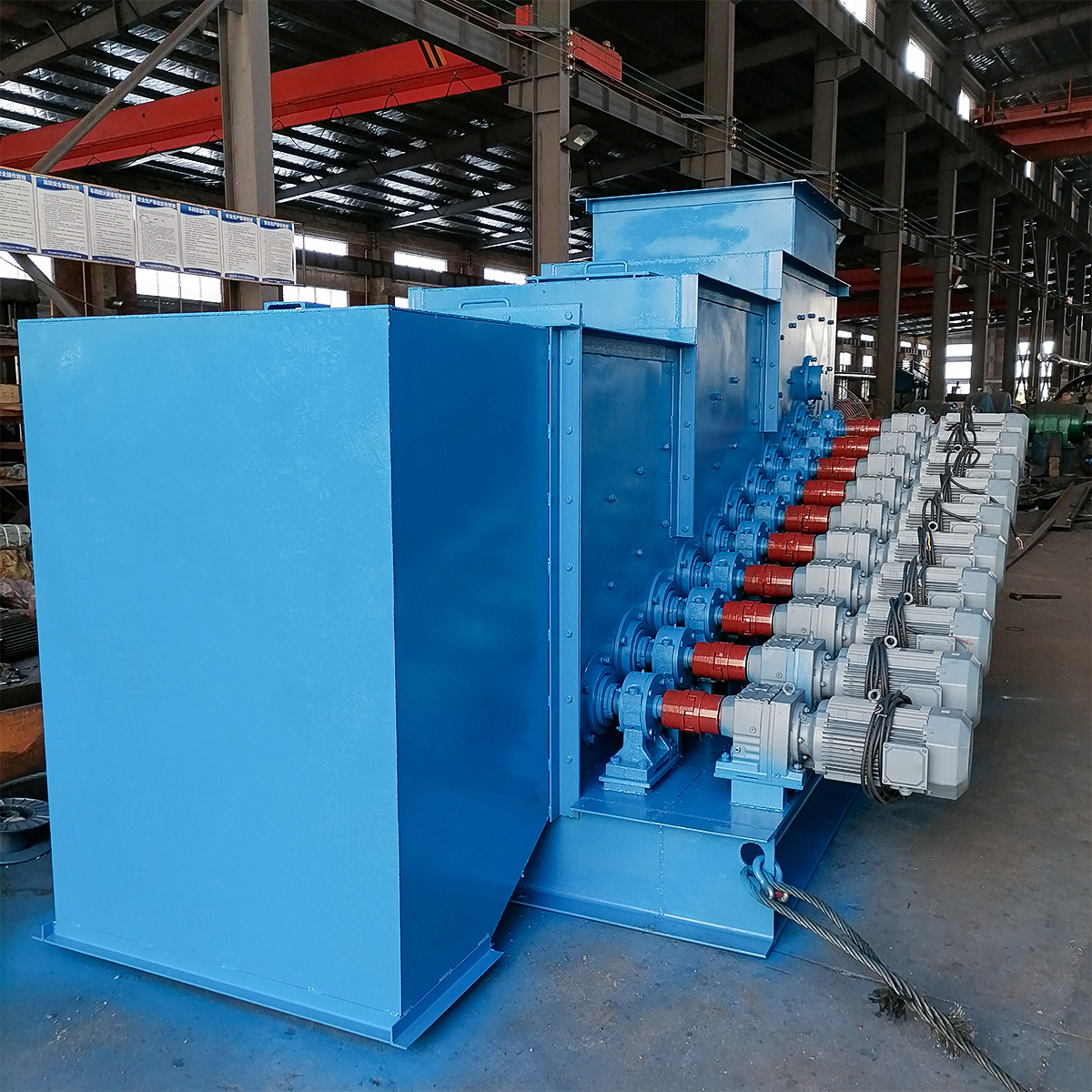

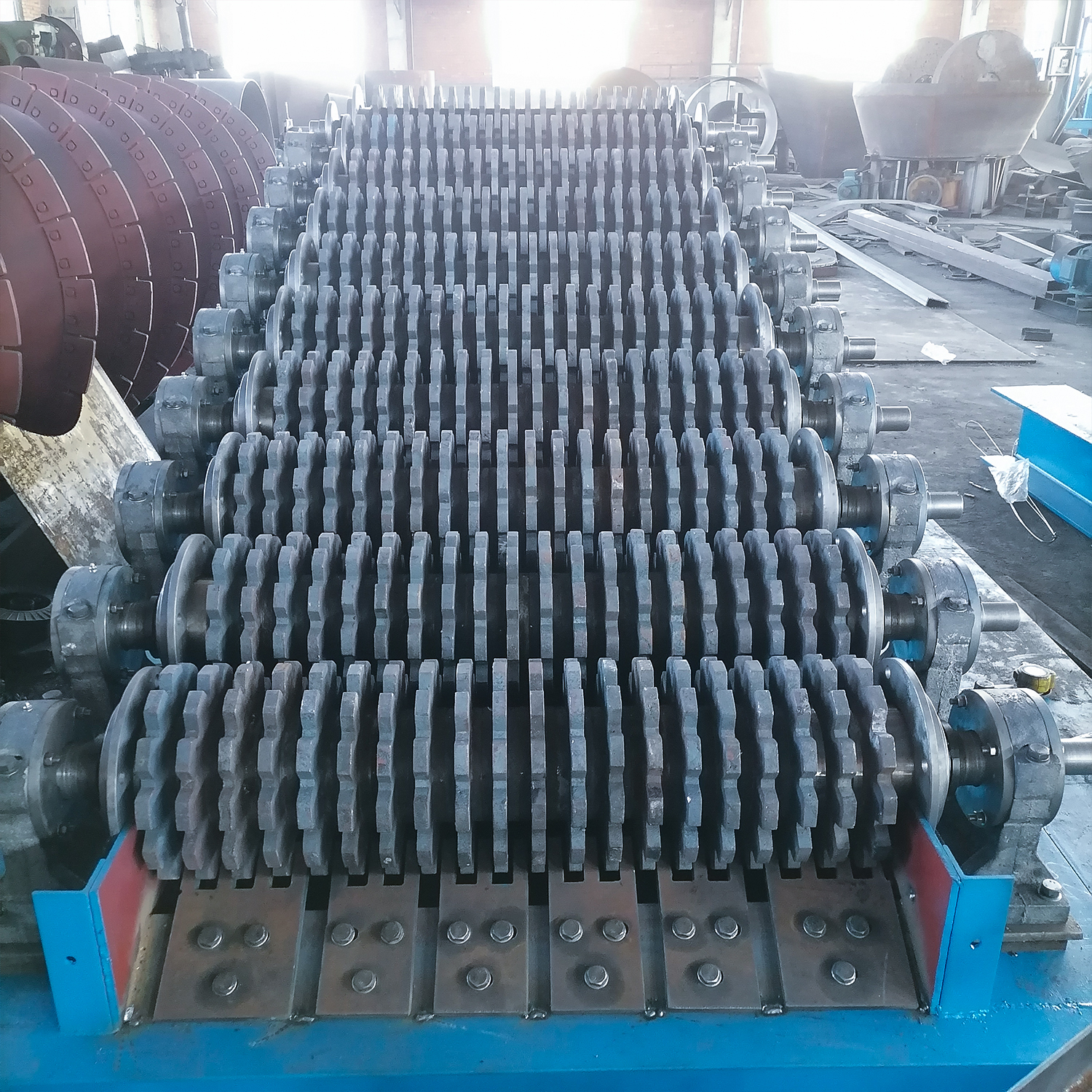

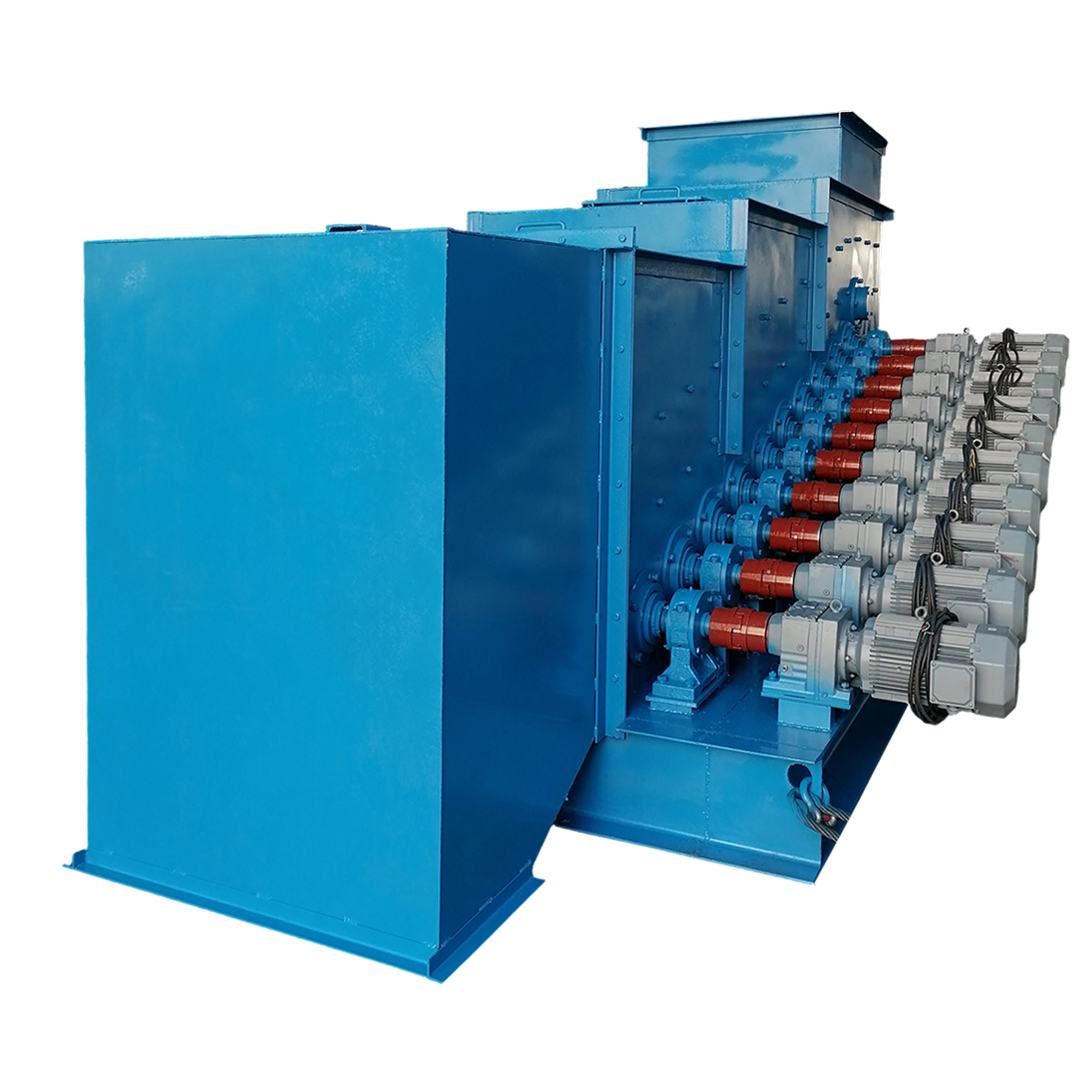

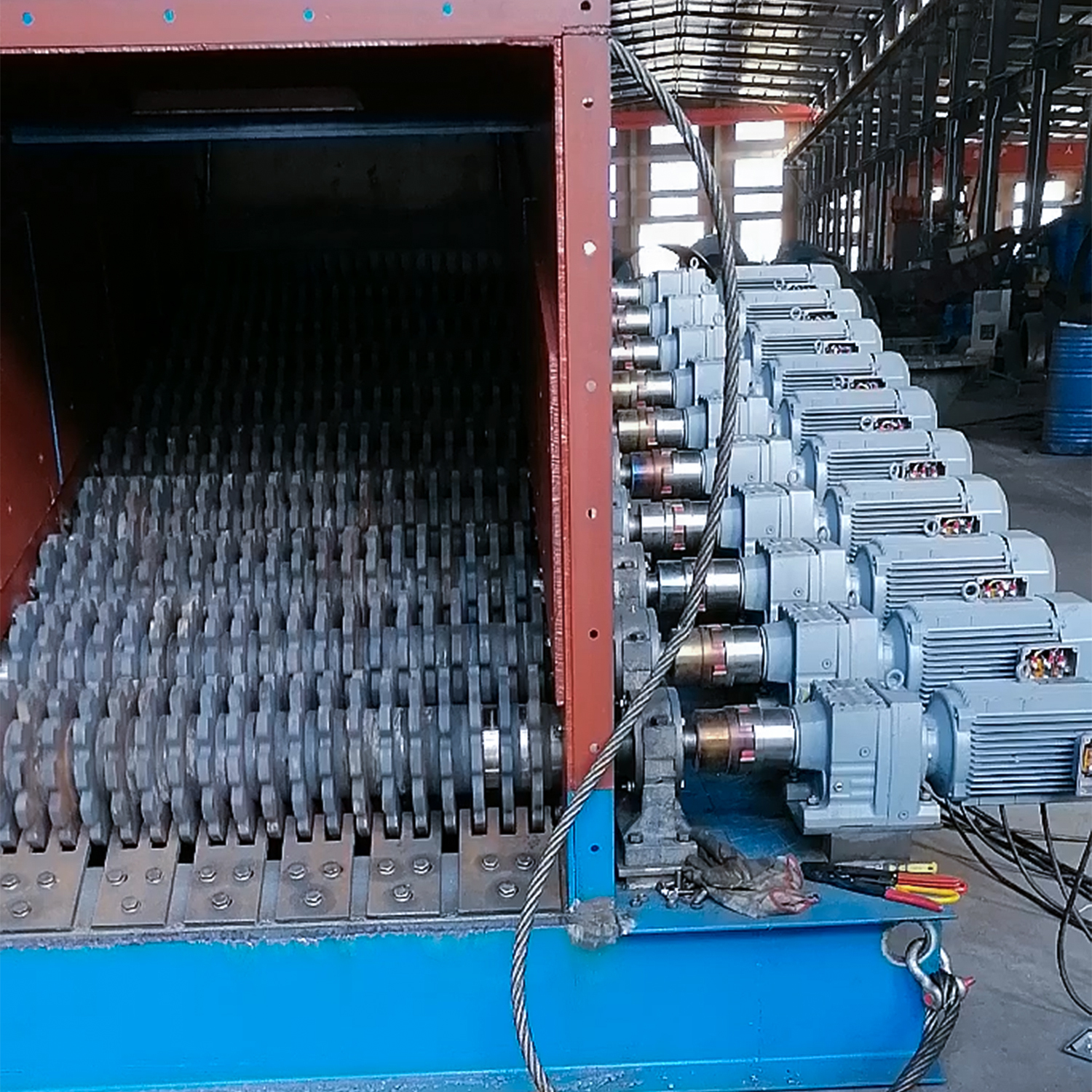

The Roller Screen is a high-efficiency sorting device that separates materials of different sizes and shapes using the rotation of discs. By adjusting the gap between the discs, it can effectively separate materials with large size differences. This innovative design improves both processing capacity and screening efficiency when compared to traditional drum screens.

The Roller Screen is perfect for handling a variety of materials such as construction and decoration waste, river pebbles, limestone, pebbles, and more. Its ability to handle a wide range of materials makes it a versatile choice for industries dealing with complex or varying material types. The machine's smooth operation ensures minimal downtime, and its low noise levels make it suitable for various industrial environments.

Key Features

• Efficient Sorting: Capable of sorting materials with significant size differences, enhancing productivity.

• High Throughput: Offers improved processing capacity compared to traditional drum screens.

• Simple Structure: Compact design that requires minimal layout space, easy to install and maintain.

• Low Noise: Operates at a low noise level, making it ideal for sensitive environments.

• Versatile Material Handling: Suitable for various materials, including construction waste, river pebbles, and limestone.

• Enhanced Screening Efficiency: High screening rate with minimal blockage, providing a reliable separation process.

Technical Specifications

Model	Screen Width (mm)	Number of Axes	Process Capacity (t/h)	Sieve Hole (mm)	Power (kw)	Rotary Speed (r/min)
GS-1660A	1000	6	300	55*65	6*1.25	550
GS-1009A	1000	9	500	55*65	9*1.25	550
GS-1012A	1000	12	700	55*65	12*1.25	550
GS-1409A	1400	9	1000	60*80	5*2.2	908
GS1412A	1400	12	1200	60*80	7*2.2	915
GS1415A	1400	15	1500	60*80	9*2.2	915
GS-1812A	1800	12	1500	60*80	7*2.2	915
GS-1815A	1800	15	2000	60*80	9*2.2	915
GS-1818A	1800	18	2500	60*80	11*2.2	915

Application Scenarios

The Roller Screen is suitable for a wide range of industries and materials:

• Construction and Decoration Waste: Efficient separation of materials to ensure the purity and quality of construction aggregates.

• River Pebbles: Screening and sorting river pebbles for use in various industrial applications.

• Limestone: Sorting and washing limestone for further processing in the mining and construction industries.

• Pebbles: Ideal for separating and cleaning pebbles for use in construction and landscaping.

• Coal Processing: Suitable for use in coal preparation plants for screening and sorting coal materials.

After-Sales Service

• Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.

• Support engineers to provide on-site guidance for installation and commissioning;

• 7*24 hours online communication and guidance;

• Product manuals and installation videos are provided;
