Rotary scrubber

Model	Drum Size (mm)	Feeding Size (mm)	Capacity (t/h)	Rotary Speed (r/min)	Power (kw)
RXT1030	Φ1000*3000	≤100	30-50	25-28	11-15
RXT1230	Φ1200*3000	≤100	50-70	23-25	15-18.5
RXT1540	Φ1500*4000	≤150	70-120	18-22	18.5-30
RXT1560	Φ1500*6000	≤150	80-150	18-22	30-37
RXT1840	Φ1800*4000	≤170	90-180	20-21	37-45
RXT1860	Φ1800*6000	≤170	100-200	20-21	37-55
RXT2060	Φ2000*6000	≤210	120-260	19-20	45-55
RXT2260	Φ2200*6000	≤230	160-280	19-20	55-75

Rotary Scrubber | Efficient Ore Cleaning and Desliming Equipment

Table of Contents

• Product Overview

• Key Features

• Technical Specifications

• Application Scenarios

• After-Sales Service

Product Overview

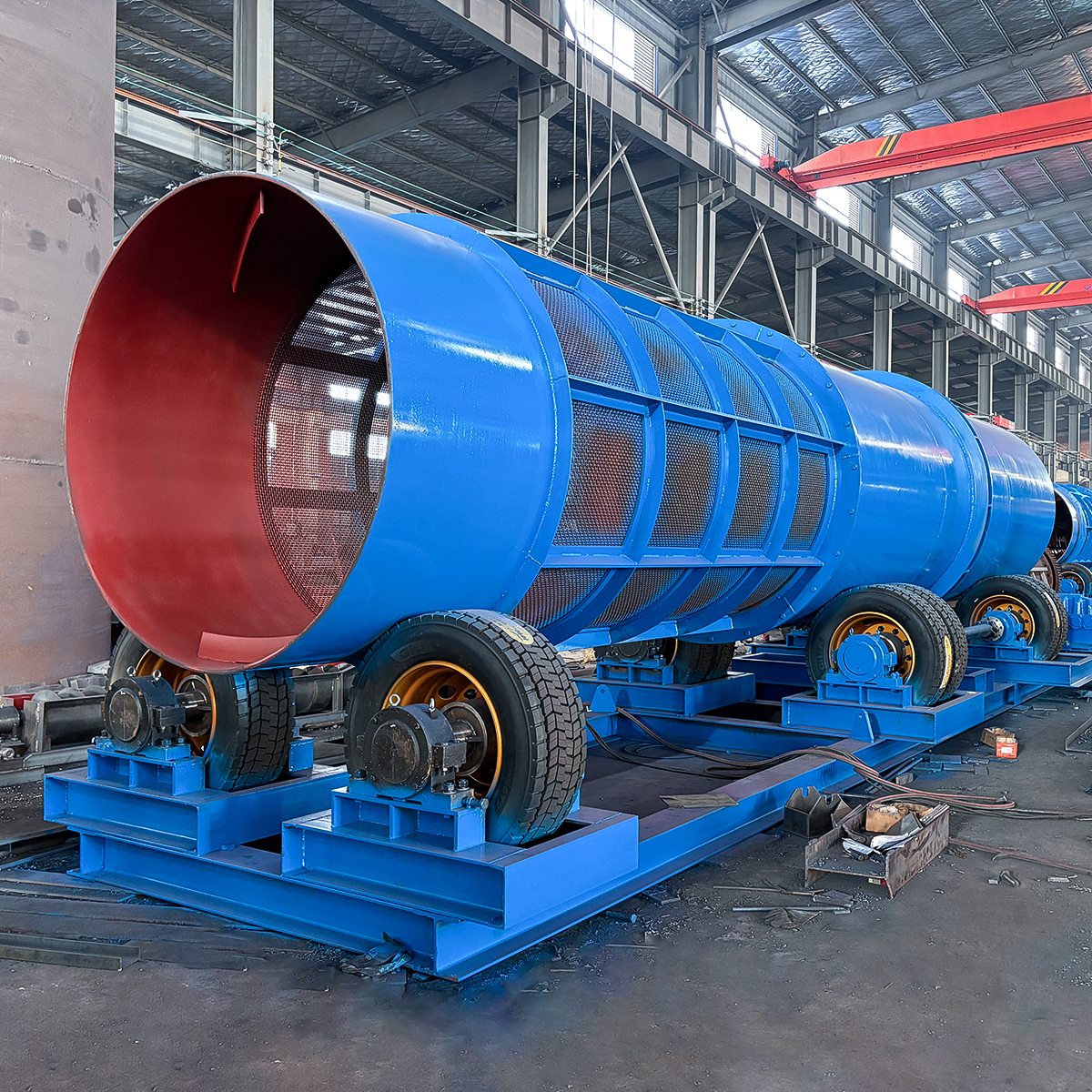

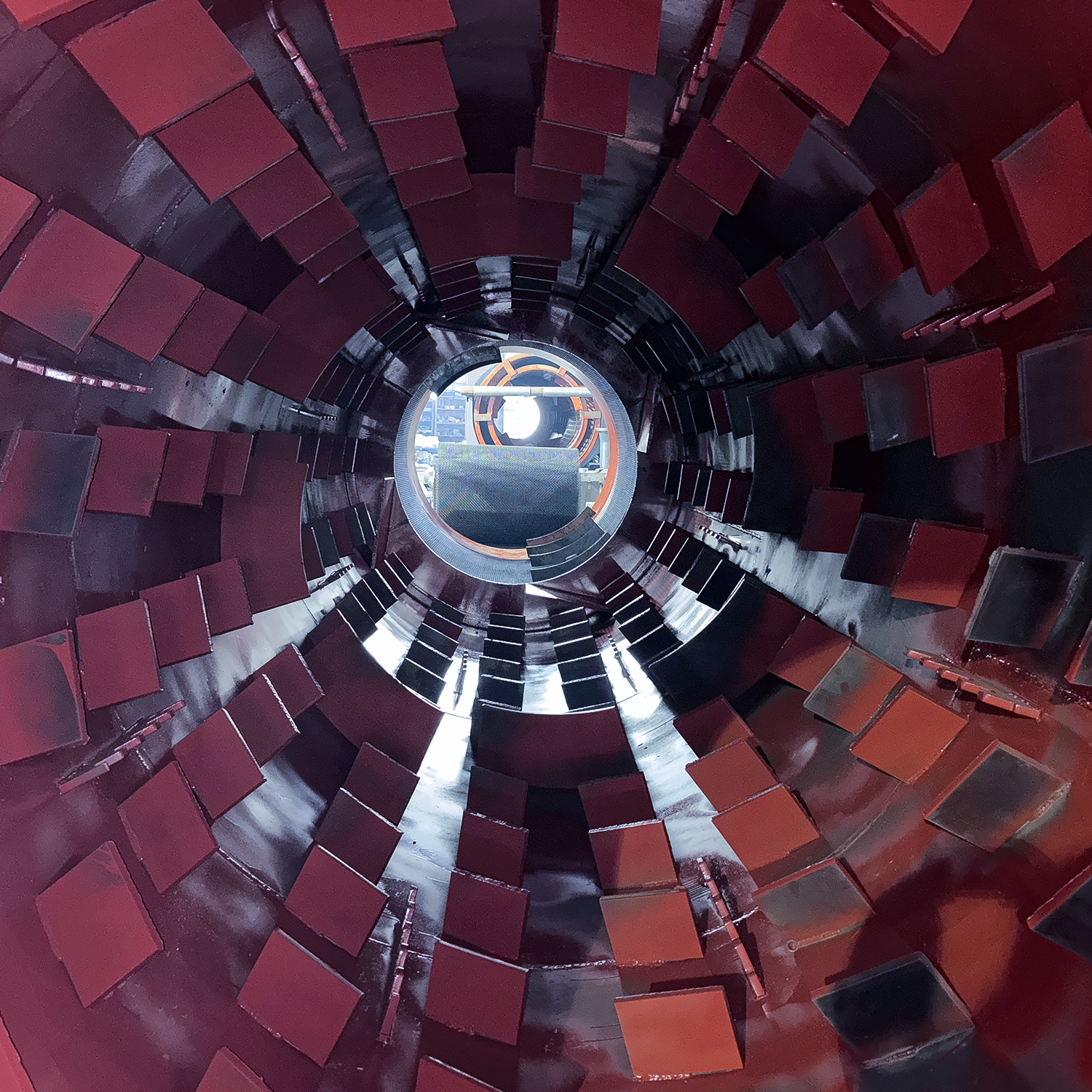

The Rotary Scrubber is a highly efficient piece of equipment designed for cleaning ores. It utilizes a rotating drum and internal scrapers, along with the natural pebbles and rocks within the material, to break down clay, crush lumps, and soft oxides, achieving the purpose of cleaning ores. The Rotary Scrubber can deslime sand and gravel, equipped with a single or double-layer circular screen to separate 2 to 3 different granulations of sand and gravel.

This equipment is widely used in industries such as manganese ore, iron ore, limestone, tungsten ore, and silica ore processing. The Rotary Scrubber enhances the quality of ores by removing impurities, allowing for higher-quality raw materials that can be used in subsequent beneficiation, smelting, and other industrial processes.

Key Features

• Efficient Ore Cleaning: Breaks down clay and soft oxides, ensuring a thorough cleaning process for ores.

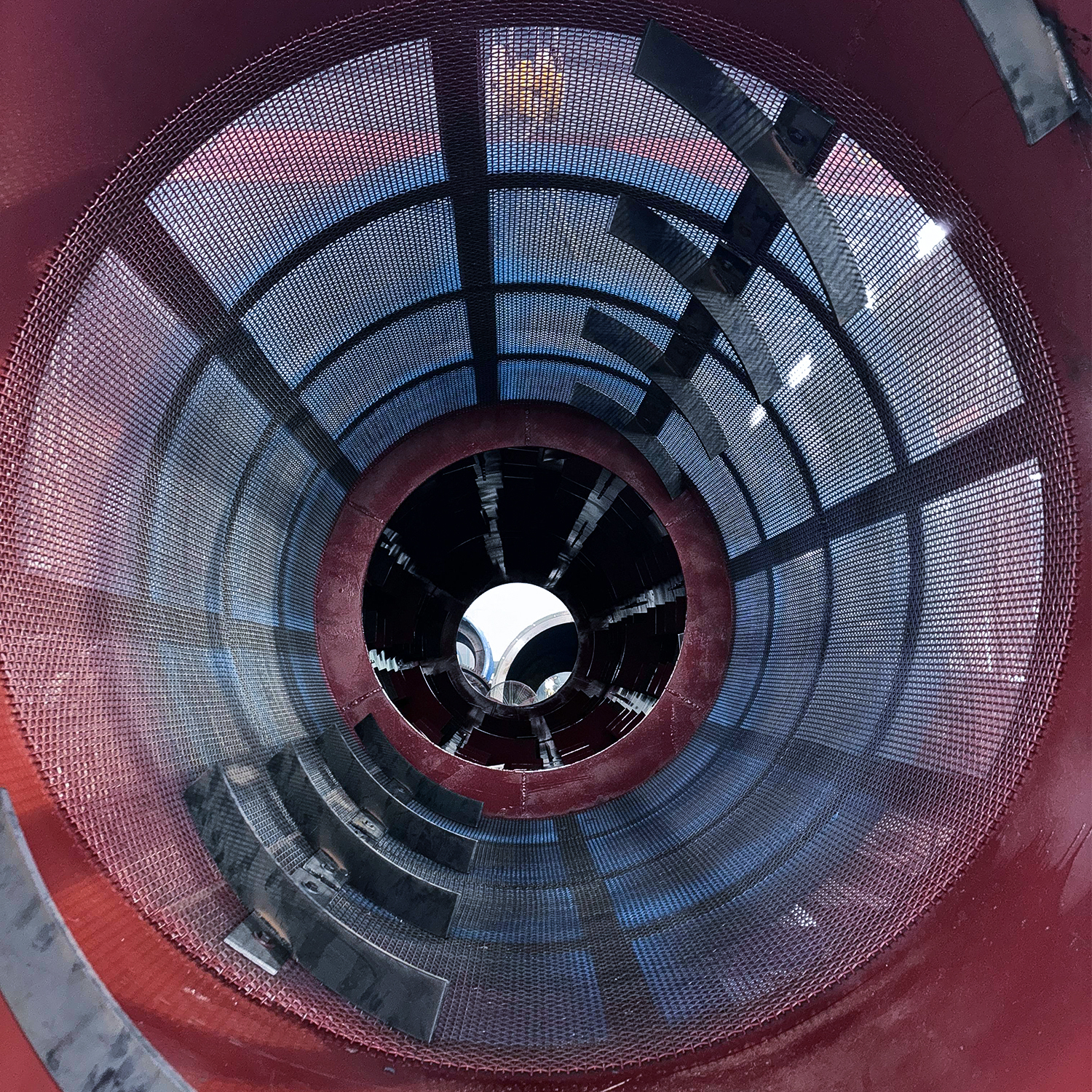

• Multiple Screening: Equipped with single or double-layer circular screens that can separate sand and gravel into 2-3 different granulations.

• High Capacity: Can handle a wide range of ores and materials with varying capacities from 30 to 280 tons per hour.

• Durable Construction: Built with high-quality materials to withstand harsh industrial environments and ensure a long service life.

• Energy Efficient: Designed for low energy consumption while providing high performance in ore cleaning and desliming.

Technical Specifications

Model	Drum Size (mm)	Feeding Size (mm)	Capacity (t/h)	Rotary Speed (r/min)	Power (kw)
RXT1030	Φ1000*3000	≤100	30-50	25-28	11-15
RXT1230	Φ1200*3000	≤100	50-70	23-25	15-18.5
RXT1540	Φ1500*4000	≤150	70-120	18-22	18.5-30
RXT1560	Φ1500*6000	≤150	80-150	18-22	30-37
RXT1840	Φ1800*4000	≤170	90-180	20-21	37-45
RXT1860	Φ1800*6000	≤170	100-200	20-21	37-55
RXT2060	Φ2000*6000	≤210	120-260	19-20	45-55
RXT2260	Φ2200*6000	≤230	160-280	19-20	55-75

Application Scenarios

The Rotary Scrubber is used across various industries for different types of material cleaning and desliming:

• Mining Industry: Used for cleaning and removing impurities from mined ores, improving ore quality for subsequent processes such as beneficiation and smelting.

• Metallurgical Industry: Used for pre-treatment of ores before smelting, removing harmful impurities and elements to improve smelting efficiency and product quality.

• Building Materials Industry: Cleans sand and gravel materials, improving the quality of construction and road sand, as well as other materials like cement and quartz sand.

• Chemical Industry: Used for cleaning and screening chemical raw materials, meeting specific production process requirements.

• Other Industries: Suitable for cleaning and impurity removal of abrasives, refractory materials, slag, copper ore, manganese ore, bauxite, iron ore, and more.

After-Sales Service

• Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.

• Support engineers to provide on-site guidance for installation and commissioning;

• 7*24 hours online communication and guidance;

• Product manuals and installation videos are provided;
