Hydrocyclone
Hydrocyclone Separator
Table of Contents
Product Overview

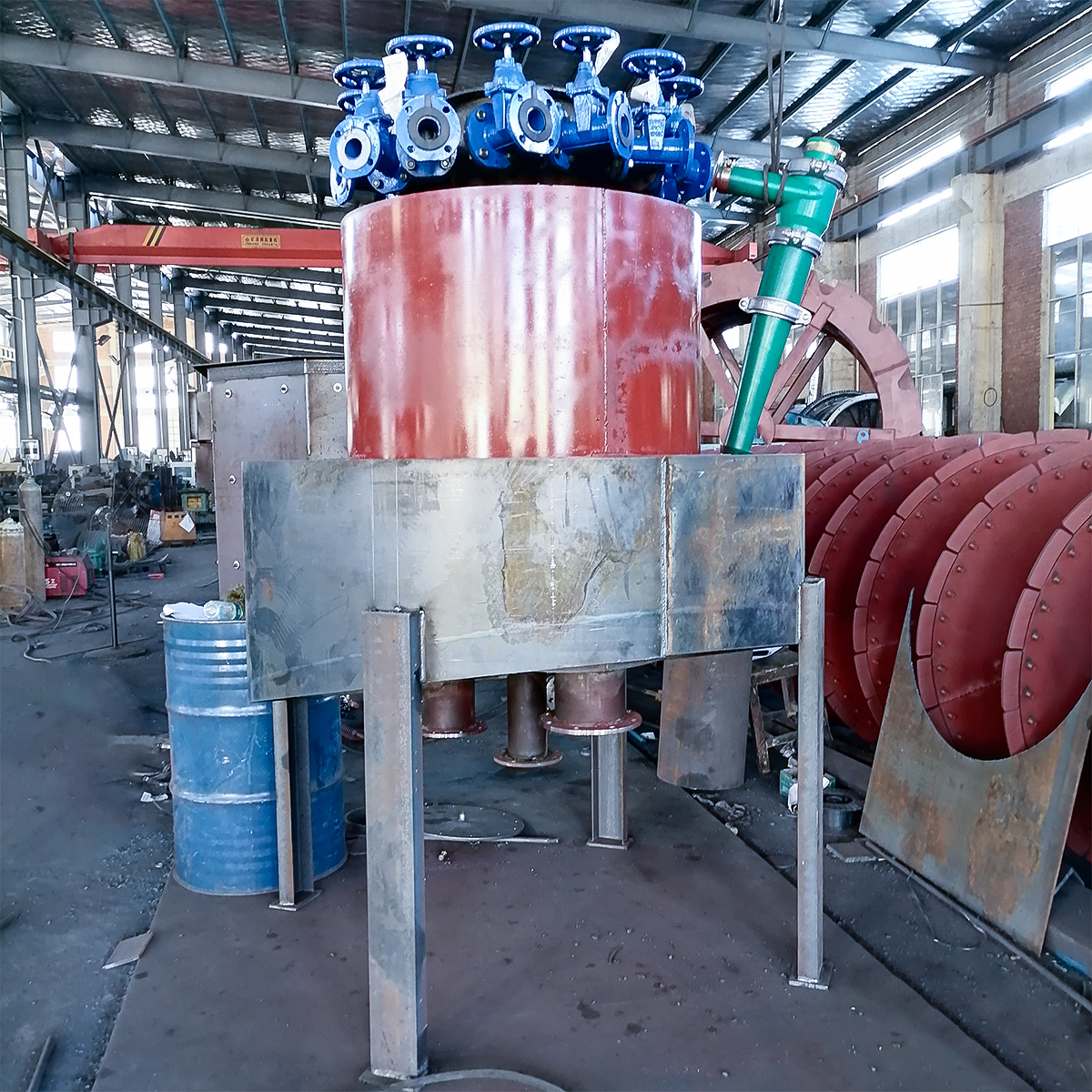

The hydrocyclone is a highly efficient slurry separation equipment that utilizes centrifugal force to accelerate particle sedimentation and achieve high-performance classification. This mining hydrocyclone is ideal for fine particle classification in closed-circuit grinding processes. Although it requires pressurized feed and consumes power, it offers a compact footprint, low cost, high throughput, and delivers fine overflow products for downstream processes.
Key Features
- High classification efficiency due to powerful centrifugal separation.
- Large processing capacity, suitable for both industrial and mining use.
- Compact design saves installation space.
- Cost-effective solution with minimal maintenance.
- Widely applicable in wastewater treatment, ore processing, mud dewatering, and more.
Technical Specifications
| Model | Diameter (mm) | Max Feeding Size (mm) | Feeding Pressure (MPa) | Capacity (m3/h) | Separating Size (μm) |
|---|---|---|---|---|---|
| FX-840 | 840 | 20 | 0.03–0.15 | 450–560 | 74–350 |
| FX-710 | 710 | 18 | 0.03–0.15 | 320–500 | 74–250 |
| FX-660 | 660 | 16 | 0.03–0.15 | 260–450 | 74–220 |
| FX-600 | 600 | 12 | 0.04–0.23 | 200–320 | 74–200 |
| FX-500 | 500 | 10 | 0.04–0.2 | 180–260 | 74–200 |
| FX-420 | 420 | 8 | 0.06–0.1 | 100–180 | 74–150 |
| FX-350 | 350 | 6 | 0.06–0.2 | 80–130 | 50–150 |
| FX-300 | 300 | 5 | 0.06–0.2 | 50–85 | 50–150 |
| FX-250 | 250 | 3 | 0.06–0.3 | 45–70 | 40–100 |
| FX-200 | 200 | 2 | 0.06–0.3 | 30–50 | 40–100 |
| FX-165 | 165 | 1.5 | 0.07–0.3 | 20–40 | 30–74 |
| FX-150 | 150 | 1.5 | 0.08–0.3 | 16–30 | 20–74 |
| FX-125 | 125 | 1 | 0.09–0.3 | 12–24 | 20–50 |
| FX-100 | 100 | 1 | 0.1–0.3 | 9–18 | 20–50 |
| FX-75 | 75 | 0.6 | 0.1–0.4 | 3–7 | 10–40 |
| FX-50 | 50 | 0.3 | 0.1–0.4 | 1.5–3.5 | 5–40 |
| FX-25 | 25 | 0.2 | 0.1–0.6 | 0.3–1 | 5–20 |
| FX-10 | 10 | 0.1 | 0.1–0.6 | 0.05–0.1 | 1–5 |
Application Scenarios
The hydrocyclone separator is widely used in wastewater treatment systems, mineral processing plants, and mud dewatering operations. It efficiently removes solid impurities from slurry through centrifugal force. Applications include removing sand from pulp, starch washing, oil-water separation, and solid-liquid separation in industrial wastewater. The device is known for its easy manufacturing, durability, and large-scale processing capabilities.
After-Sales Support
- Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.
- Support engineers to provide on-site guidance for installation and commissioning;
- 7*24 hours online communication and guidance;
- Product manuals and installation videos are provided;
