Trommel Screen | Efficient Material Screening for Mining and Industry
Table of Contents
Product Overview

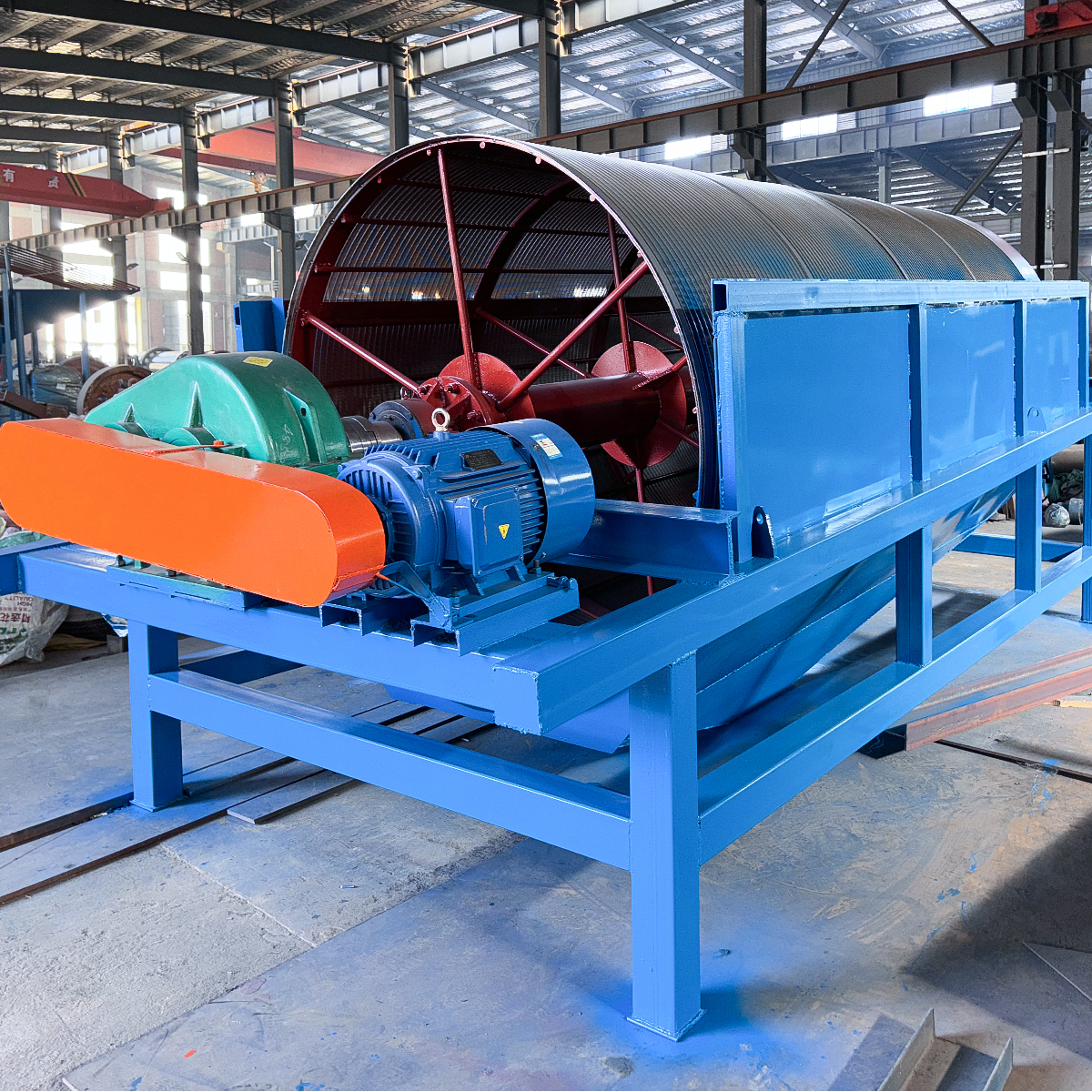

The Trommel Screen is a highly efficient screening equipment used for sorting materials based on size through a rotating drum. It is composed of an inlet, drum, motor, reducer, frame, and outlet. The drum is generally installed at an angle, allowing materials to enter from one end. Under the combined action of gravity and rotation, materials of different sizes are discharged through various outlets, ensuring effective separation.
This rotary drum screening system is ideal for industries requiring bulk material classification, including mining, coal, metallurgy, construction, chemical industries, and more.
Key Features
- Efficient Sorting: Effectively classifies materials based on size, ensuring high productivity and minimal loss.
- Durable Construction: Built with high-quality materials to withstand harsh environments and heavy usage.
- Wide Application: Suitable for various industries such as mining, coal, metallurgy, chemical, and construction.
- Low Maintenance: Requires minimal maintenance with easy access to key components for servicing.
- Customizable Options: Available in multiple sizes and configurations to meet specific operational needs.
Technical Specifications
| Model | Capacity (t/h) | Power (kw) | Drum Diameter (mm) | Drum Length (mm) | Sieve Size (mm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| GT0510 | 1-10 | 1.5 | 500 | 1000 | ≤250 | 1800x1020x1500 | 1000 |
| GT1015 | 5-20 | 4.0 | 1000 | 1500 | — | 3000x1400x2145 | 2200 |
| GT1020 | 10-40 | 5.0 | 1000 | 2000 | — | 3460x1400x2145 | 2800 |
| GT1225 | 20-60 | 7.5 | 1200 | 2500 | — | 4146x1600x2680 | 4200 |
| GT1530 | 30-90 | 11 | 1500 | 3000 | — | 4460x1900x2820 | 5100 |
| GT1545 | 50-120 | 15 | 1500 | 4500 | — | 5960x1900x3080 | 6000 |
| GT1848 | 70-180 | 22 | 1800 | 4800 | — | 6500x2300x4000 | 7000 |
| GT1860 | 80-200 | 22 | 1800 | 1800 | — | 8000x2300x4000 | 7500 |
| GT2055 | 120-250 | 30 | 2000 | 5500 | — | 7500x2500x4000 | 8600 |
Application Scenarios
The Trommel Screen is widely used in various industries for screening and classifying bulk materials:
- Quarrying: Ideal for screening and classifying gravel, clay, mountain meal, and sand.
- Coal Industry: Efficiently screens lump coal, coal dust, and washed coal for size classification.
- Chemical & Fertilizer Industries: Used for sorting chemical raw materials, fertilizers, and other particulate substances.
- Mineral Processing: Suitable for classifying and grading lump and powder substances, ensuring efficient separation.
- Metallurgy & Construction: Plays a vital role in sorting and screening materials for building and construction purposes.
After-Sales Service
- Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.
- Support engineers to provide on-site guidance for installation and commissioning;
- 7*24 hours online communication and guidance;
- Product manuals and installation videos are provided;
