Circular Vibrating Screen
Circular Vibrating Screen | Efficient Screening Equipment for Mining & Construction
Table of Contents
Product Overview

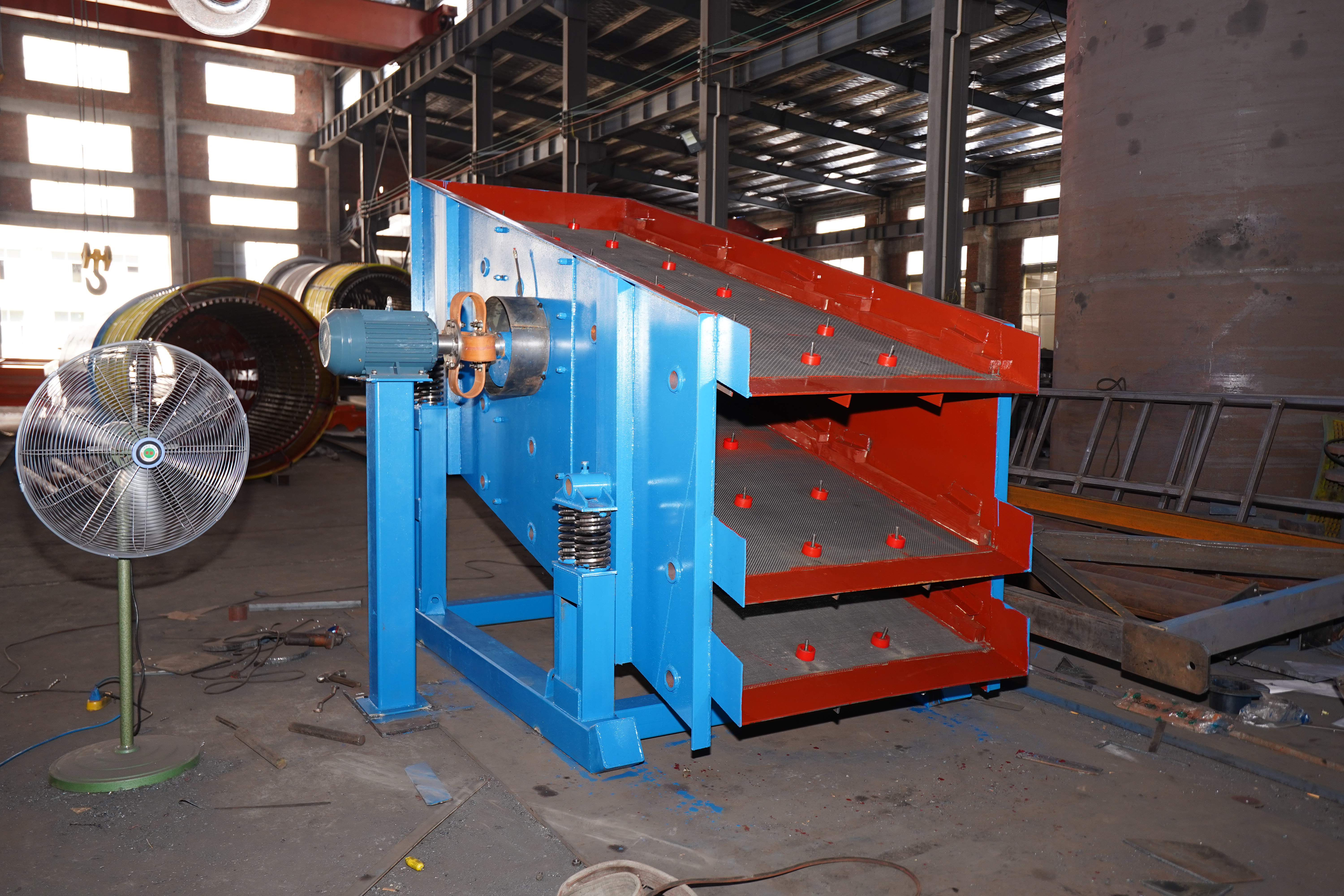

The circular vibrating screen is a multi-layer, high-efficiency vibrating screening equipment designed for precise material separation. It uses a cylinder eccentric shaft exciter and bias blocks to adjust the amplitude, causing the material to move in a near-circular motion across the screen surface. This enables efficient screening and grading of materials. The circular vibrating screen is known for its reliable structure, high excitation force, low noise, durable design, and easy maintenance. It is extensively used in various industries including mining, construction, transportation, energy, and chemicals.
This high-efficiency screening equipment is ideal for separating various granular materials in both wet and dry conditions. It offers outstanding performance for screening aggregates, ores, coal, and chemicals, making it an essential tool for mineral processing plants and quarry operations.
Key Features
- Multi-layer design for efficient material separation and screening
- Adjustable amplitude for optimal performance and throughput
- High screening efficiency and low energy consumption
- Durable and low-maintenance design for long service life
- Low noise and vibration, ensuring a safer working environment
- Versatile use in mining, construction, chemical, and coal industries
- Easy to integrate with existing mineral processing systems
Technical Specifications
| Model | Screen Layers | Screen Area (m²) | Capacity (m³/h) | Vibrating Frequency (r/min) | Double Resonance (mm) | Power (kW) | Weight (kg) | Dimension (mm) |
|---|---|---|---|---|---|---|---|---|
| YK0612 | 1 | 0.72 | 10-20 | 800-970 | 6 | 1.5 | 450 | 1370 x 890 x 430 |
| YK0918 | 1 | 1.6 | 10-30 | 800-970 | 8 | 2.2 | 500 | 1926 x 1418 x 1809 |
| 2YK0918 | 2 | 3.2 | 10-30 | 800-970 | 8 | 2.2 | 650 | 1926 x 1418 x 2013 |
| YK1224 | 1 | 2.9 | 10-60 | 800-970 | 8 | 4 | 2600 | 2417 x 2109 x 1334 |
| 2YK1224 | 2 | 5.8 | 10-60 | 800-970 | 4 | 4 | 3500 | 2930 x 1860 x 1780 |
| 3YK1224 | 3 | 9 | 10-70 | 800-970 | 8 | 5.5 | 3850 | 3070 x 1860 x 2030 |
| YK1230 | 1 | 3.6 | 12-75 | 800-970 | 8 | 5.5 | 4000 | 3430 x 1860 x 570 |
| 2YK1230 | 2 | 7.2 | 12-78 | 800-970 | 8 | 7.5 | 4200 | 3430 x 1860 x 870 |
| 3YK1230 | 3 | 10.8 | 13-80 | 800-970 | 8 | 7.5 | 4600 | 3570 x 1860 x 1210 |
| YK1530 | 1 | 4.5 | 20-120 | 800-970 | 8 | 11 | 3300 | 4120 x 2971 x 2404 |
| 2YK1535 | 2 | 10.5 | 20-125 | 800-970 | 8 | 11 | 4890 | 4120 x 2970 x 1230 |
| 3YK1535 | 3 | 15.75 | 21-125 | 800-970 | 8 | 11 | 5700 | 4360 x 2970 x 1610 |
| YK1848 | 1 | 8.8 | 25-200 | 970 | 8 | 15 | 7200 | 5420 x 3020 x 1020 |
| 2YK1848 | 2 | 17.28 | 25-206 | 970 | 8 | 15 | 9080 | 5420 x 3020 x 1420 |
| 3YK1848 | 3 | 25.92 | 32-276 | 970 | 8 | 18.5 | 9600 | 5660 x 3020 x 1780 |
| YK2160 | 1 | 12.6 | 50-475 | 970 | 8 | 30 | 10200 | 6720 x 3640 x 1130 |
| 2YK2160 | 2 | 25.2 | 50-475 | 970 | 8 | 30 | 11780 | 6720 x 3640 x 1530 |
| 3YK2160 | 3 | 37.8 | 50-475 | 970 | 8 | 30 | 12800 | 7030 x 3640 x 1910 |
Application Scenarios
The circular vibrating screen is versatile and widely used in several industries, including:
- Quarrying: Screening sand and gravel, separating stones and sand of different particle sizes for construction and road works.
- Mining: Screening ores such as iron ore, copper ore, gold ore, etc., for classification and further processing.
- Coal Mining: Separating coal based on particle size for power generation and coking processes.
- Building Materials: Screening limestone, cement, and sand to meet the demands of construction material production.
- Chemical Industry: Screening raw materials such as fertilizers and plastics for different production processes.
Packaging & Transport
Each unit of the circular vibrating screen is securely packed in standard export packaging, ensuring safe delivery to international destinations. Custom packaging options are available to meet specific shipping requirements.
After-Sales Service
- Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.
- Support engineers to provide on-site guidance for installation and commissioning;
- 7*24 hours online communication and guidance;
- Product manuals and installation videos are provided;
