Spiral Chute for Gravity Mineral Separation
Table of Contents
Product Description

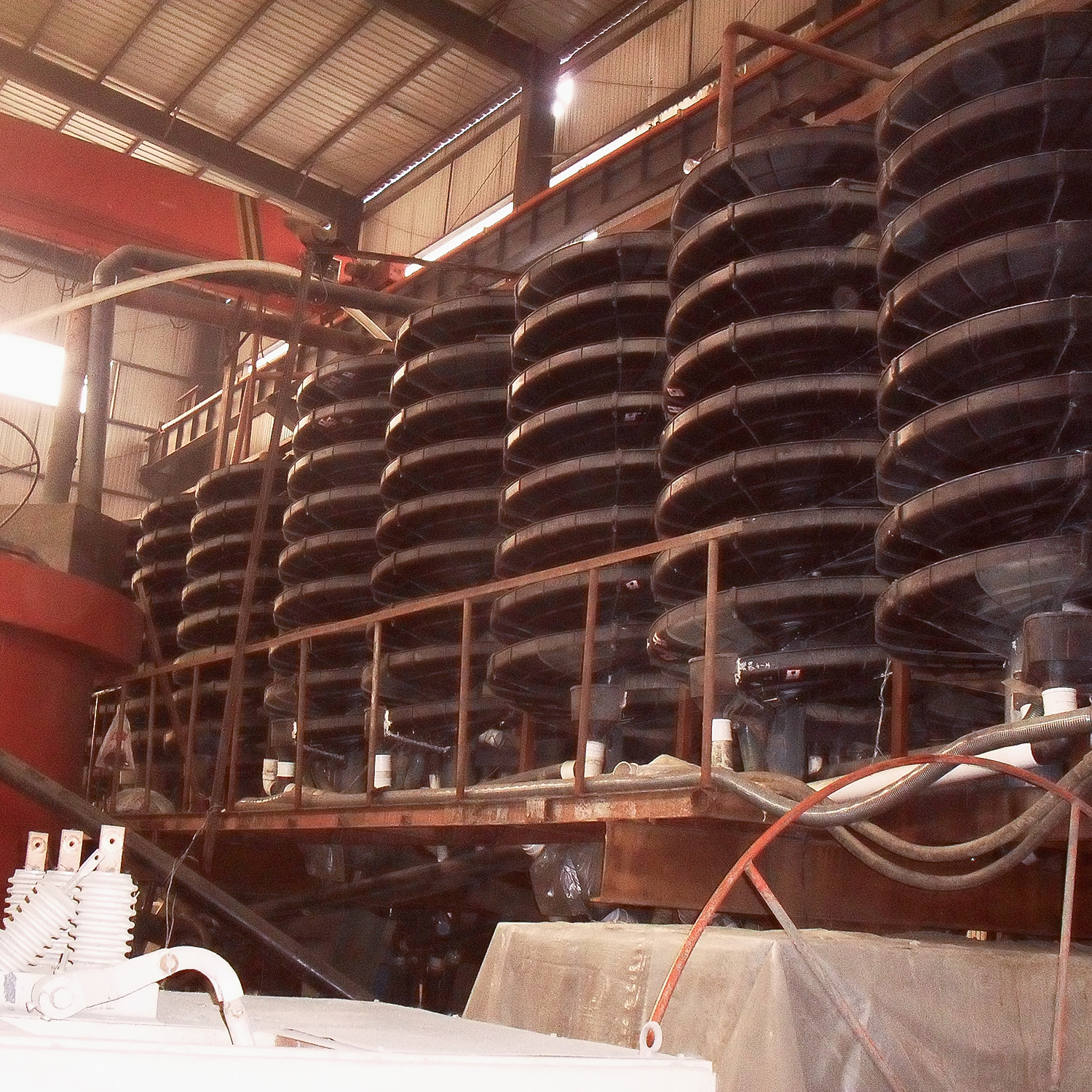

The spiral chute is a cost-effective gravity separation equipment widely used in mining operations for fine mineral recovery. It utilizes the combined action of centrifugal force, gravity, and friction to separate minerals of different specific gravities while the slurry flows through its spiral structure. Designed with simplicity and performance in mind, it is particularly suitable for beach, riverside, and alluvial sand mines, offering stable operation and low energy consumption.
The spiral chute features a compact and modular design with diameters ranging from 400mm to 2000mm, supporting different particle sizes and processing capacities from 0.15 to 10 tons per hour. Whether dealing with coarse sand, ore slime, or fine tailings, this gravity spiral separator ensures effective sorting and mineral concentration. The chute's surface is coated for corrosion resistance, enabling it to perform reliably even in harsh environmental conditions.
Product Features
- Efficient separation of gold, tin, tungsten, iron, and rare metal minerals
- Wide range of models for processing coarse, medium, and fine-grained ores
- Low power consumption and maintenance-free design
- Simple structure with long service life and minimal operation cost
- Suitable for seashore, river, and desert sand ore processing
- Customizable installation with 2-4 spiral heads per unit
Technical Parameters
| Model | Spiral Diameter (mm) | Pitch (mm) | Feed Size (mm) | Feed Density (%) | Capacity (t/h) | Dimensions (L×W×H mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 5LL-2000 | 2000 | 1200 | 2.00–0.04 | 30–55 | 7–10 | 2120×2120×5600 | 900 |
| 5LL-1500 | 1500 | 900/800/680/540 | 0.8–0.037 | 30–60 | 6–8 | 1600×1600×5300 | 800 |
| 5LL-1200 | 1200 | 900/720/540 | 0.3–0.03 | 25–35 | 4–6 | 1360×1360×5230 | 600 |
| 5LL-900 | 900 | 675/540/405 | 0.3–0.03 | 25–55 | 2–3 | 1060×1060×4000 | 400 |
| 5LL-600 | 600 | 450/360/270 | 0.2–0.02 | 25–55 | 0.4–0.8 | 700×700×2600 | 150 |
| 5LL-400 | 400 | 240/180 | 0.2–0.02 | 25–55 | 0.15–0.2 | 460×460×1500 | 50 |
Application Scenarios
The spiral concentrator is widely applied across industries and is especially valued in:
1. Mining and Ore Beneficiation
- Gold Recovery: For low-grade beach, river, and desert gold sand ore
- Tin and Tungsten Separation: Efficiently processes fine heavy minerals
- Iron and Rare Metals: Gravity concentrate iron, platinum, and niobium ores
2. Historic and Modern Chute Applications
- Traditional Sand Separation: Used since ancient times in gold and tin washing
- Modern Upgrades: Now integrated with jigs, shaking tables, and cone concentrators
3. Particle-Based Classification
- Coarse Grain Chutes: For ore particles >2–3 mm
- Ore Sand Chutes: For particles from 2–3 mm
- Sludge Chutes: For particles < 0.074 mm
After-Sales Service
- Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.
- Support engineers to provide on-site guidance for installation and commissioning;
- 7*24 hours online communication and guidance;
- Product manuals and installation videos are provided;
