Scrubbing Machine | Ore Cleaning & Mud Removal Equipment
Table of Contents
Product Overview

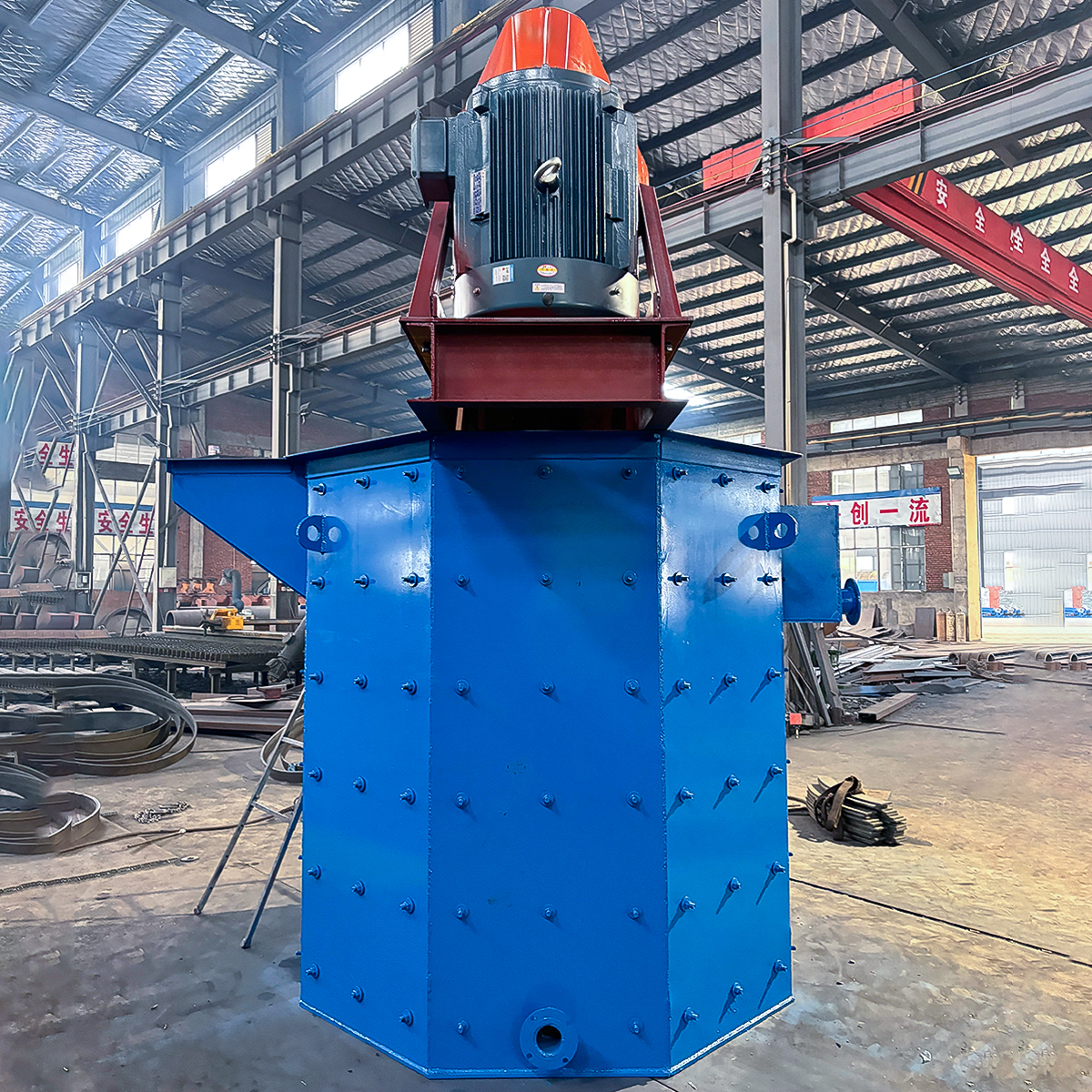

The Scrubbing Machine, also known as the ore washing machine, is primarily used for cleaning and removing mud from ores to enhance their grade and improve the efficiency of subsequent beneficiation processes. The machine utilizes mechanical force and water flow to separate soil, impurities, and fine-grained minerals from the ore's surface. Common types of scrubbing machines include cylinder scrubbers, trough scrubbers, and double-screw scrubbers.
This equipment is essential for improving ore quality by removing contaminants, making it suitable for industries such as mining, construction, and chemical processing. It enhances the performance of the beneficiation process by providing cleaner ore for further treatment.
Key Features
- Effective Ore Cleaning: Removes impurities, mud, and fine minerals from ores to improve ore grade.
- Wide Range of Applications: Suitable for ores such as iron ore, manganese ore, and phosphorite with high mud content.
- Prevents Clogging: Breaks down sticky mud clusters to prevent blockage in subsequent equipment and processes.
- High Efficiency: Increases the efficiency of subsequent beneficiation processes and improves overall ore quality.
- Versatility: Also used for cleaning construction aggregates, sand, gravel, and stone, ensuring high-quality construction materials.
Technical Specifications
| Model | Impeller Diameter (mm) | Volume (m2) | Feeding Size (mm) | Capacity (t/h) | Power (kw) | Weight (kg) | Dimension (mm) |
|---|---|---|---|---|---|---|---|
| CX0.25-1 | 240 | 0.25 | ≤10 | 2-10 | 3 | 350 | 710x708x1310 |
| CX0.25-2 | 240x2 | 0.25x2 | ≤10 | 2-10 | 3x2 | 660 | 1365x708x1310 |
| CX0.5-1 | 320 | 0.5 | ≤10 | 5-20 | 5.5 | 450 | 922x886x1550 |
| CX0.5-2 | 320x2 | 0.5x2 | ≤10 | 5-20 | 5.5x2 | 890 | 1761x886x1550 |
| CX1-1 | 480 | 1 | ≤10 | 10-40 | 15 | 1400 | 1180x1142x2057 |
| CX1-2 | 480x2 | 1x2 | ≤10 | 10-40 | 15x2 | 2410 | 2276x1142x2057 |
| CX2-1 | 520 | 2 | ≤10 | 20-70 | 30 | 3300 | 1597x1597x2775 |
| CX2-2 | 520x2 | 2x2 | ≤10 | 20-70 | 30x2 | 6210 | 3075x1597x2775 |
| CX4-1 | 770 | 4 | ≤10 | 40-100 | 55 | 7500 | 1900x1752x3470 |
| CX4-2 | 770x2 | 4x2 | ≤10 | 40-100 | 55x2 | 14560 | 3712x1752x3470 |
Application Scenarios
The Scrubbing Machine is widely used across different industries for various cleaning and desliming operations:
- Ore Pre-treatment: Suitable for ores with high mud content such as iron ore, manganese ore, and phosphorite, effectively removing dirt and improving ore grade for better beneficiation efficiency.
- Sticky Ore Treatment: Breaks down sticky mud clusters and cleans ores to prevent clogging in subsequent equipment, enhancing overall beneficiation efficiency.
- Construction Aggregate Cleaning: Widely used for cleaning sand, gravel, and stone, ensuring high-quality construction materials.
- Other Fields: Can also be used in river dredging and other industries that require material cleaning.
After-Sales Service
- Quality assurance for 1 year except for vulnerable parts, human factors and natural disasters.
- Support engineers to provide on-site guidance for installation and commissioning;
- 7*24 hours online communication and guidance;
- Product manuals and installation videos are provided;
